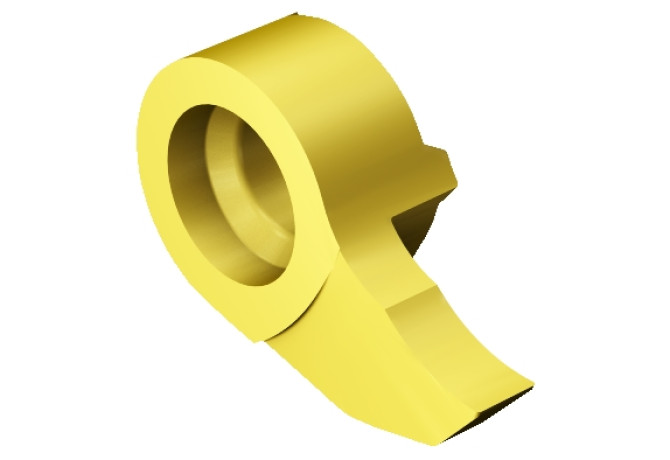

Главная Инструменты 310-00 - Turning tool with carbide tips unspecified MB-09G140-00-14R 1025

MB-09G140-00-14R 1025

Артикул: 5735701

В наличии

0 ₽

В корзину

Описание

Характеристики

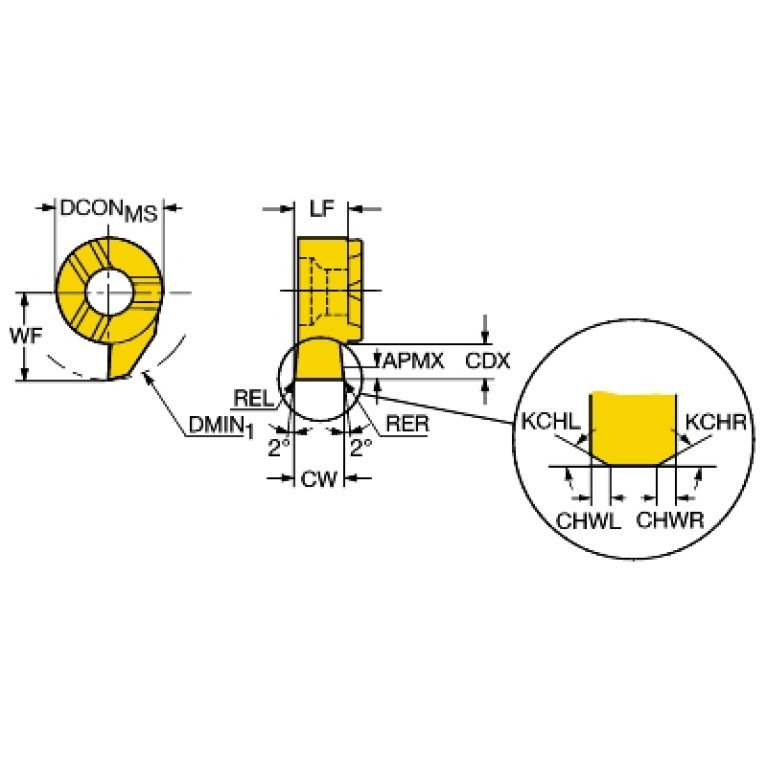

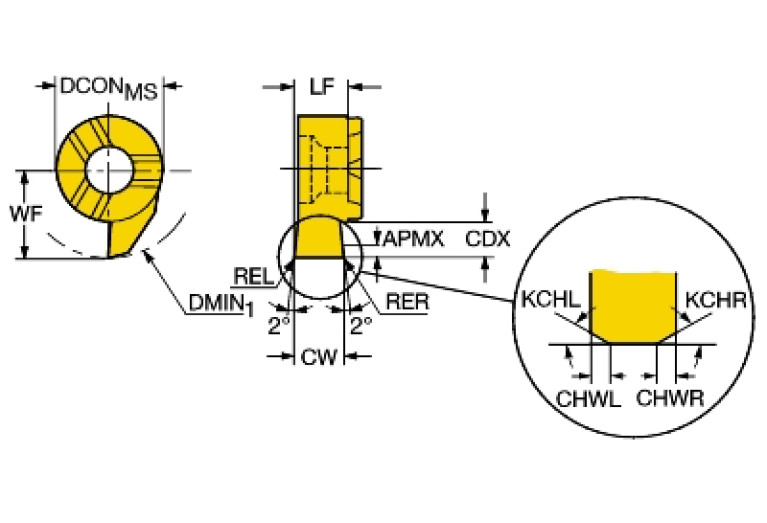

CDX (Cutting depth maximum)

4 mm

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

BKC00900185

DMIN (Minimum bore diameter)

14 mm

GAMO (Rake angle orthogonal)

0 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

BKC01C0090$$$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

1.4 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

4.6 mm

LOC-03 ISO

BKC01C0090$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0090

LOC-03 (DCONMS Diameter)

9 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BKC00900185

Materials

P,M,K,N,S

OAL (Overall length)

6 mm

WF (Functional width)

9 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.003 kg
