Главная Инструменты 310-00 - Turning tool with carbide tips unspecified MB-07TH180UN-10L 1025

MB-07TH180UN-10L 1025

Артикул: 5849028

В наличии

0 ₽

В корзину

Описание

Характеристики

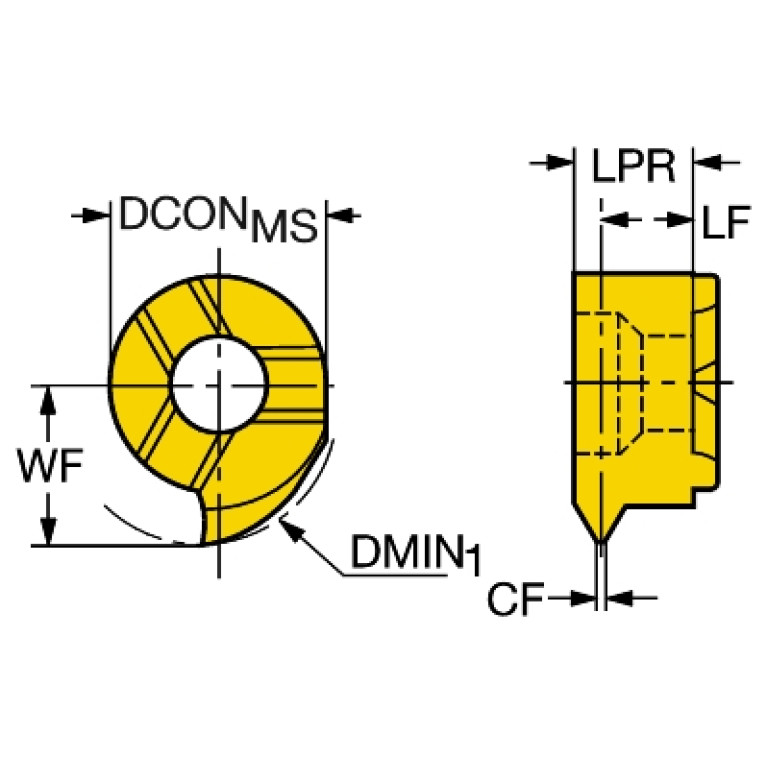

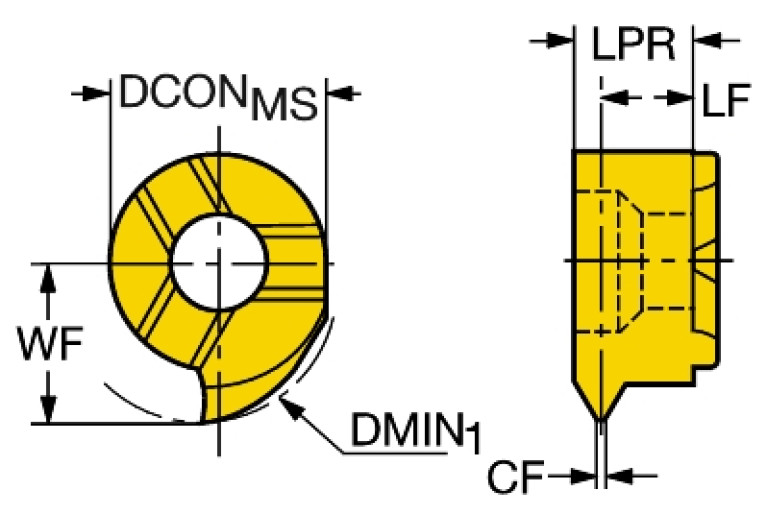

CDX (Cutting depth maximum)

0.76 mm

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

BKC00700185

DMIN (Minimum bore diameter)

10 mm

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

BKC01C0070$$$$

LF (Functional length)

3.2 mm

LH (Head length)

3.8 mm

LOC-03 ISO

BKC01C0070$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0070

LOC-03 (DCONMS Diameter)

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BKC00700185

Materials

P,M,K,N,S,H

OAL (Overall length)

3.9 mm

THFT (Thread form type)

UN60

TPT (Thread profile type)

V - Full profile

WF (Functional width)

5.8 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing,EGE - Threading, external and internal,EGI - Threading, internal

WT (Weight of item)

0.002 kg
