Главная Инструменты 310-00 - Turning tool with carbide tips unspecified CXS-07G117-7230L 1025

CXS-07G117-7230L 1025

Артикул: 6765515

В наличии

0 ₽

В корзину

Описание

Характеристики

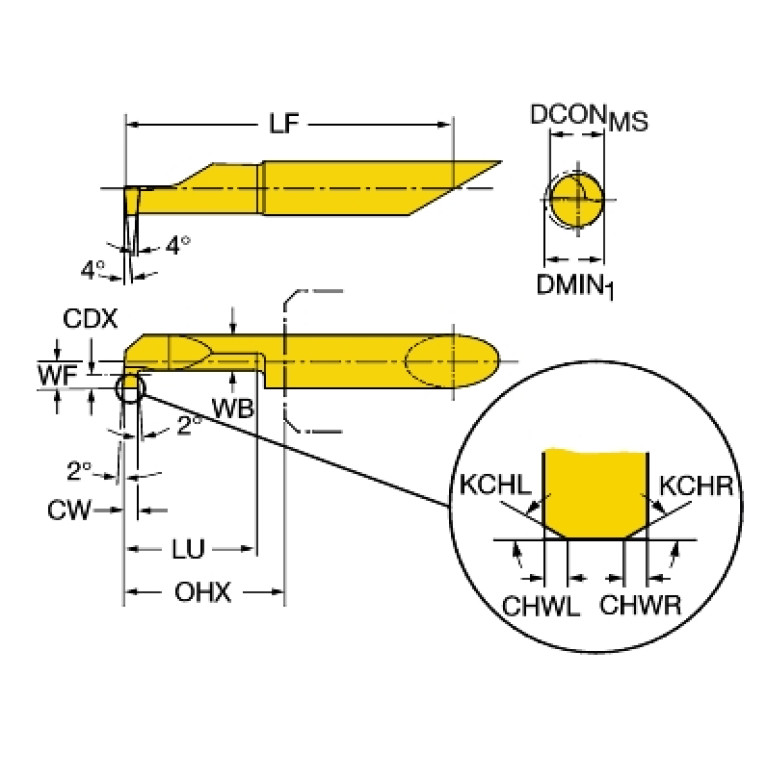

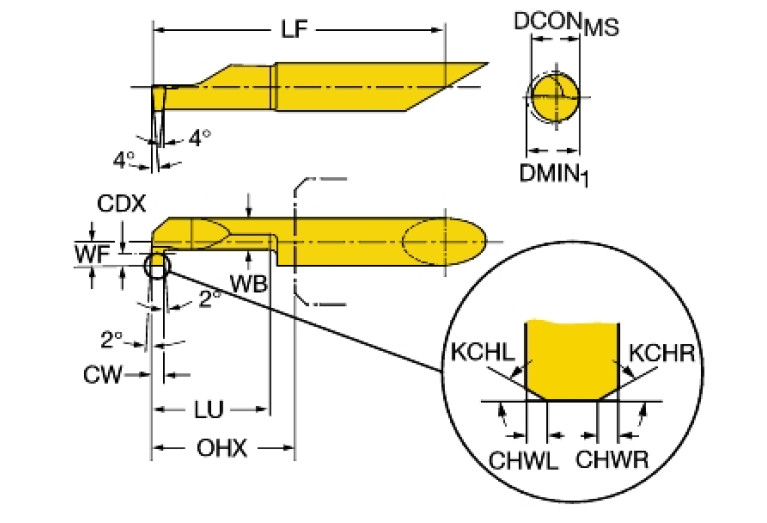

CDX (Cutting depth maximum)

2.5 mm

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00705405

DMIN (Minimum bore diameter)

7.2 mm

GAMO (Rake angle orthogonal)

0 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL54F7000$$$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

1.17 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

51.665 mm

LOC-03 ISO

ZYL54F7000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0070

LOC-03 (DCONMS Diameter)

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00705405

Materials

P,M,K,N,S

OAL (Overall length)

55.28 mm

WF (Functional width)

3.45 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.025 kg
