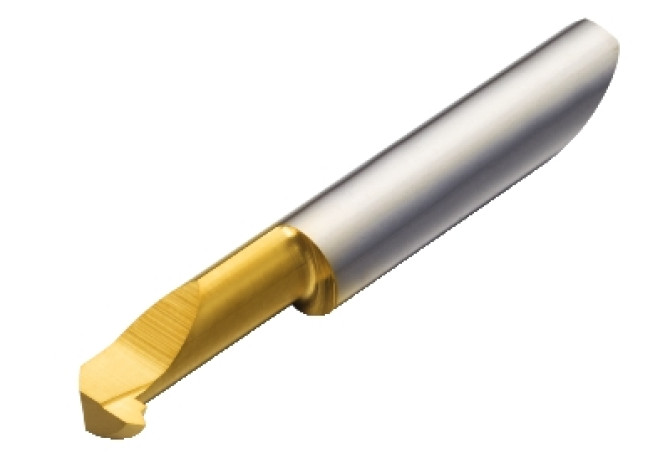

Главная Инструменты 310-00 - Turning tool with carbide tips unspecified CXS-05TH070VM-5115R 1025

CXS-05TH070VM-5115R 1025

Артикул: 5726309

В наличии

0 ₽

В корзину

Описание

Характеристики

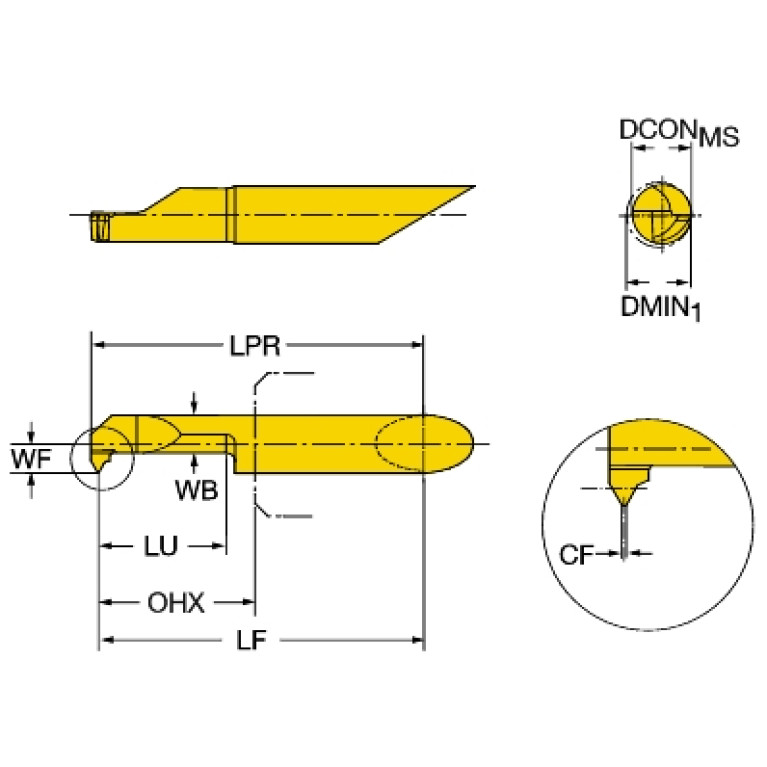

CDX (Cutting depth maximum)

0.4 mm

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00505405

DMIN (Minimum bore diameter)

5.1 mm

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL54F5000$$$$

LF (Functional length)

36.8 mm

LH (Head length)

37.25 mm

LOC-03 ISO

ZYL54F5000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0050

LOC-03 (DCONMS Diameter)

5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00505405

Materials

P,M,K,N,S,H

OAL (Overall length)

40.25 mm

THFT (Thread form type)

VP60

TPIN (Threads per inch minimum)

TPIX (Threads per inch maximum)

TPN (Thread pitch minimum)

0.75 mm

TPT (Thread profile type)

T - Partial profile

TPX (Thread pitch maximum)

1 mm

WF (Functional width)

2.35 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing,EGE - Threading, external and internal,EGI - Threading, internal

WT (Weight of item)

0.011 kg
