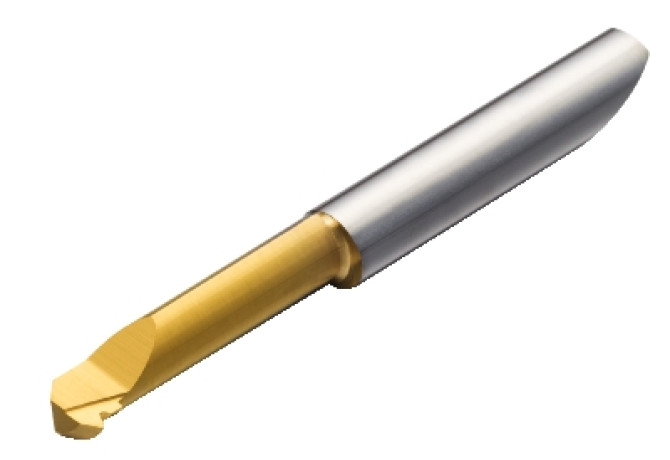

Главная Инструменты 310-00 - Turning tool with carbide tips unspecified CXS-04TH320UN-4015R 1025

CXS-04TH320UN-4015R 1025

Артикул: 5726544

В наличии

0 ₽

В корзину

Описание

Характеристики

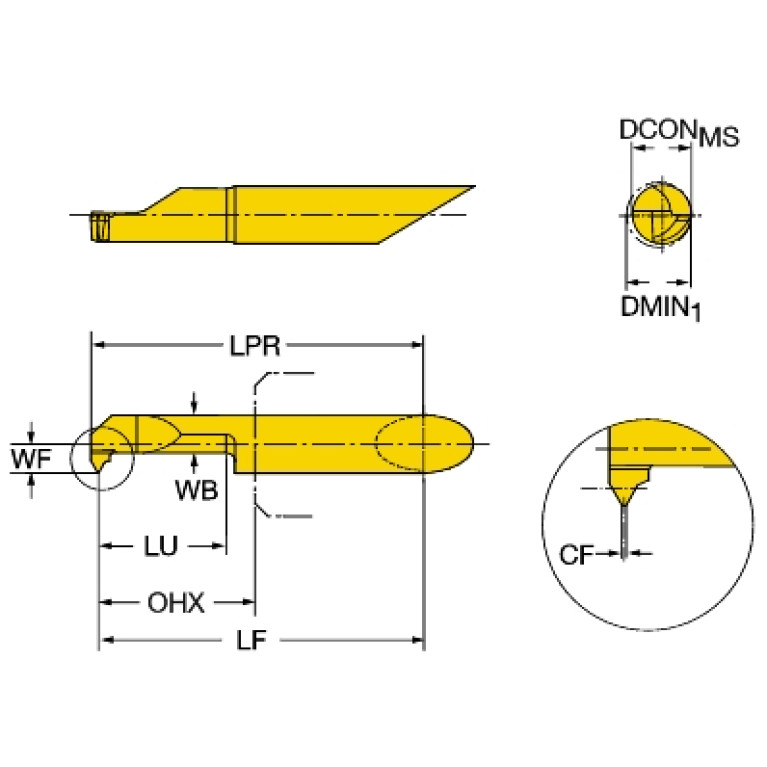

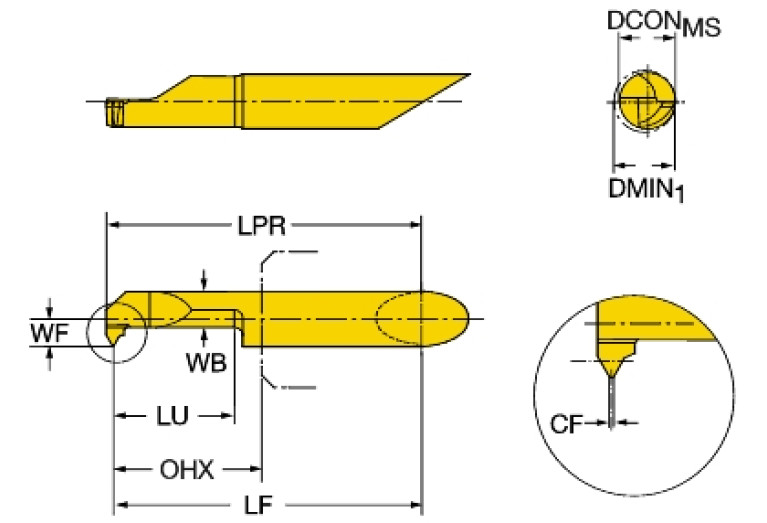

CDX (Cutting depth maximum)

0.43 mm

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL00405405

DMIN (Minimum bore diameter)

4 mm

EPSR (Insert included angle)

60 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL54F4000$$$$

LF (Functional length)

31.7 mm

LH (Head length)

32.25 mm

LOC-03 ISO

ZYL54F4000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0040

LOC-03 (DCONMS Diameter)

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00405405

Materials

P,M,K,N,S,H

OAL (Overall length)

34.85 mm

THFT (Thread form type)

UN60

TPT (Thread profile type)

V - Full profile

WF (Functional width)

1.85 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing,EGE - Threading, external and internal,EGI - Threading, internal

WT (Weight of item)

0.006 kg
