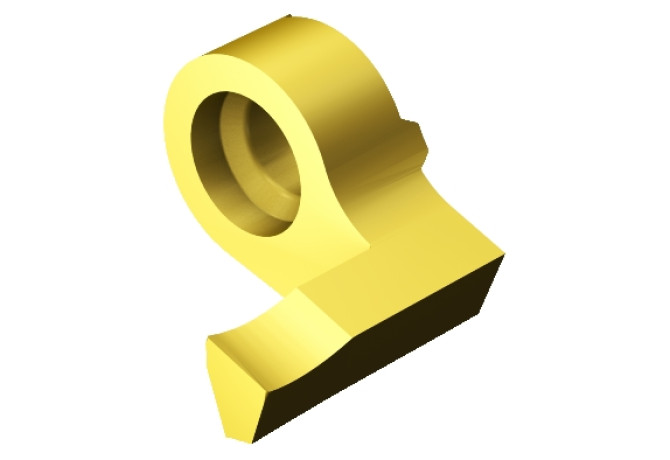

Главная Инструменты 310-06 - Turning tool no 7 - grooving and cut-off design MB-09FB318-02-12L 1025

MB-09FB318-02-12L 1025

Артикул: 6879599

В наличии

0 ₽

В корзину

Описание

Характеристики

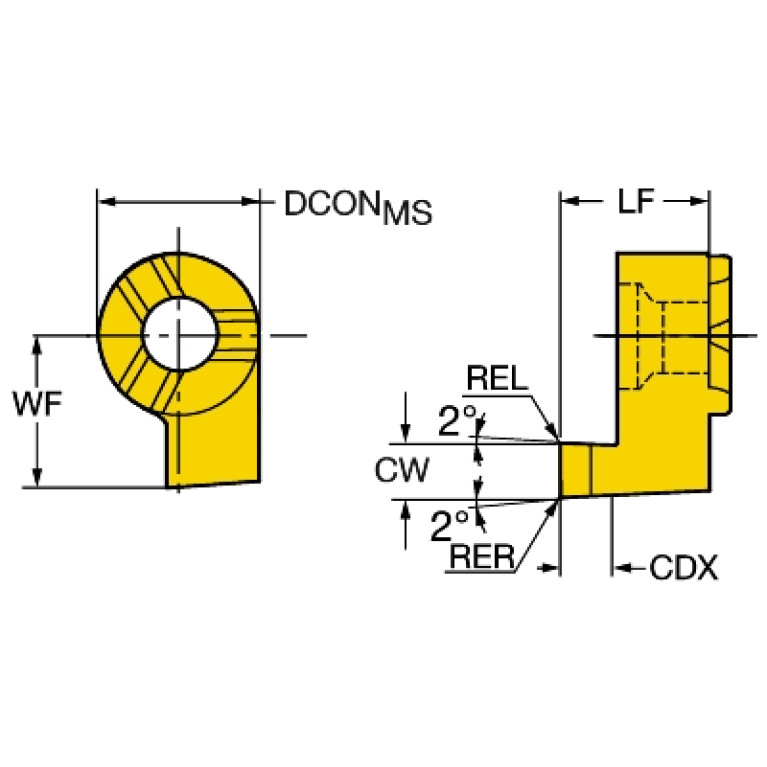

AXGSUP (Axial groove support direction)

CDX (Cutting depth maximum)

5 mm

DAXN (Axial groove od min)

12 mm

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

BKCF09L0185

GAMO (Rake angle orthogonal)

0 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

BKC01CF09L$$$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

3.18 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

8.71 mm

LOC-03 ISO

BKC01CF09L$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

F09L

LOC-03 (DCONMS Diameter)

9 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BKCF09L0185

Materials

P,M,K,N,S

OAL (Overall length)

11.15 mm

WF (Functional width)

9.18 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.005 kg
