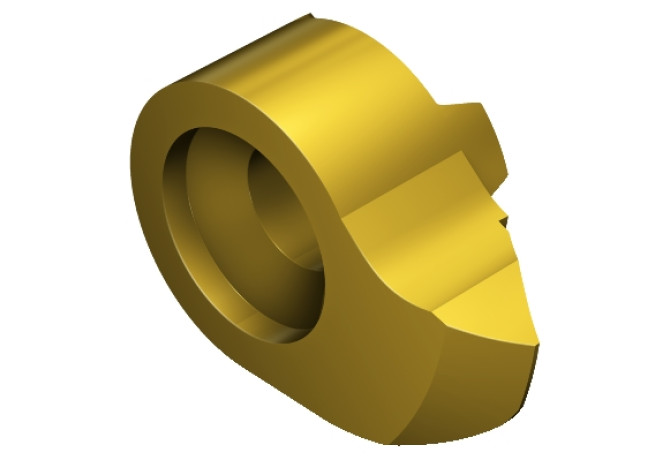

Главная Инструменты 310-09 - Internal turning tool no 9 - offset side cutting design MB-07T045-02-10R 1025

MB-07T045-02-10R 1025

Артикул: 5735957

В наличии

0 ₽

В корзину

Описание

Характеристики

CEATC (Tool cutting edge angle type code)

E - Front lead angle

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

BKC00700185

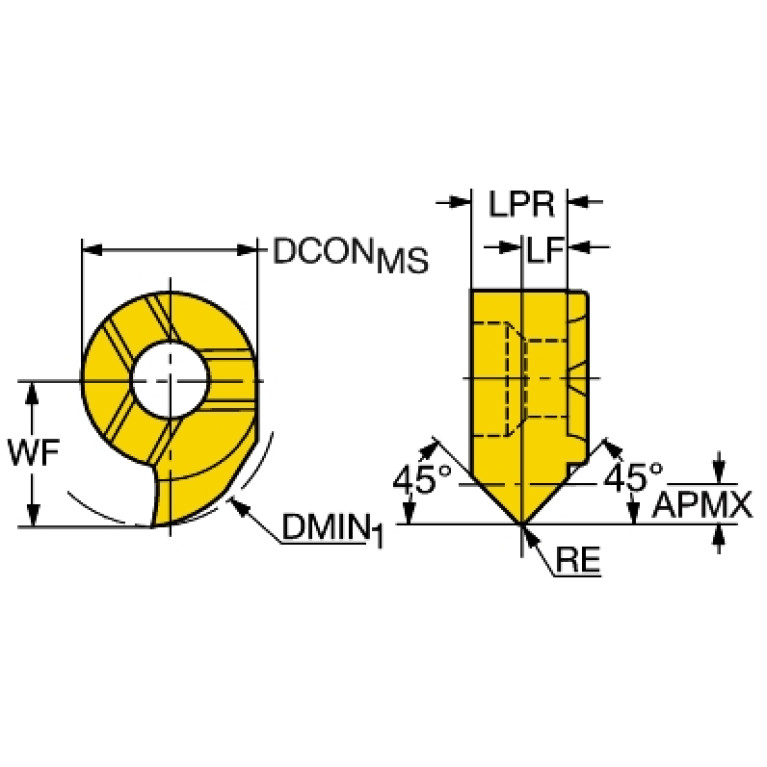

DMIN (Minimum bore diameter)

10 mm

GAMO (Rake angle orthogonal)

0 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

BKC01C0070$$$$

KAPR (Tool cutting edge angle)

45 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

2 mm

LH (Head length)

4 mm

LOC-03 ISO

BKC01C0070$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

BKC drill head mounting SANDVIK Coromant

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0070

LOC-03 (DCONMS Diameter)

7 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

BKC00700185

Materials

P,M,K,N,S

OAL (Overall length)

4.8 mm

WF (Functional width)

5.8 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.002 kg
