Главная Инструменты 310-09 - Internal turning tool no 9 - offset side cutting design ISO 8 R1212 P30

ISO 8 R1212 P30

Артикул: 5732975

В наличии

0 ₽

В корзину

Описание

Характеристики

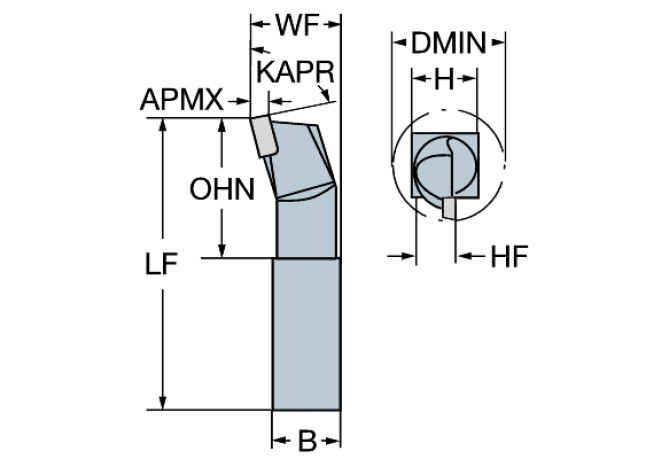

B (Shank width)

12 mm

CEATC (Tool cutting edge angle type code)

E - Front lead angle

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

VKT12120105

DMIN (Minimum bore diameter)

21 mm

GAMO (Rake angle orthogonal)

12 Degree

GRDMFG (Grade manufacturers designation)

P30

GRDPRIO (Standard designation of the grade main application)

H (Shank height)

12 mm

HAND (Cutting direction)

R - Right

HF (Functional height)

9.6 mm

Interface codes

J6 / J61

ISO

VKT01A1212$$$$

KAPR (Tool cutting edge angle)

75 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

180 mm

LOC-03 ISO

VKT01A1212$$$$

LOC-03 (B Shank width)

12 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

1212

LOC-03 (H Shank height)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT12120105

OAL (Overall length)

180 mm

WF (Functional width)

17 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.188 kg
