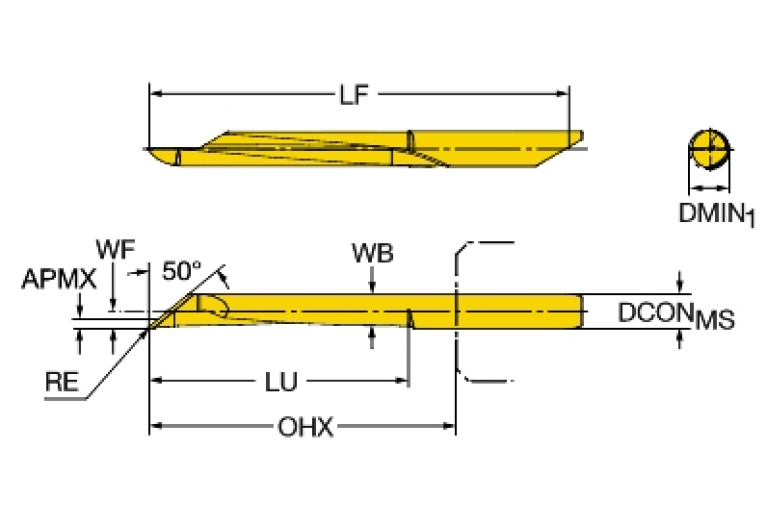

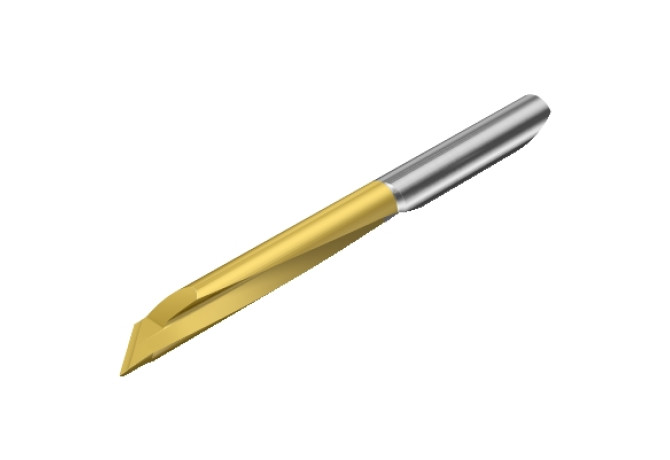

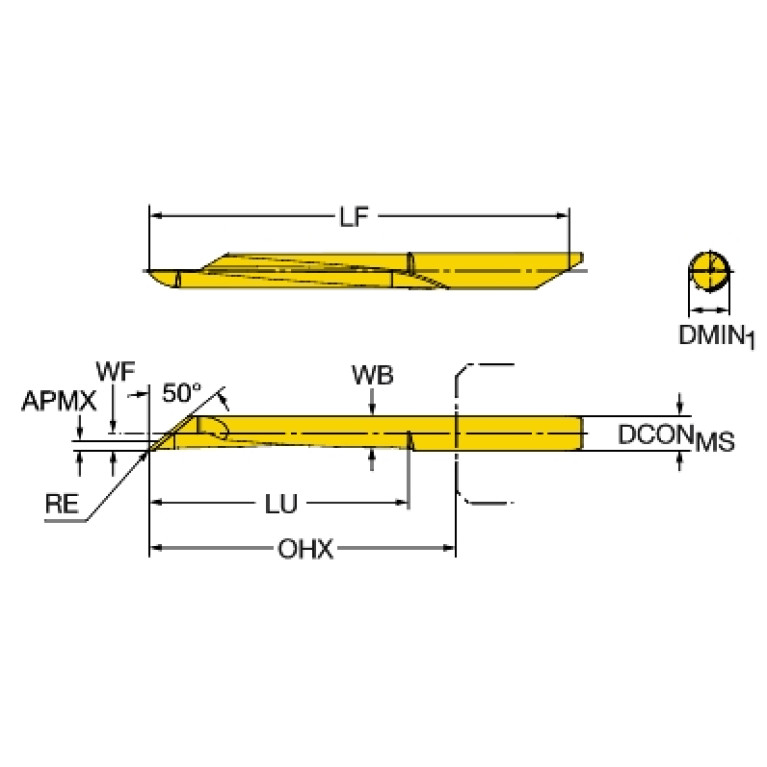

Главная Инструменты 310-09 - Internal turning tool no 9 - offset side cutting design CXS-04T140A05-4230R 1025

CXS-04T140A05-4230R 1025

Артикул: 7047043

В наличии

0 ₽

В корзину

Описание

Характеристики

DCC (Design configuration style code)

H - Heavy metal, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00405405

DMIN (Minimum bore diameter)

4.2 mm

GAMO (Rake angle orthogonal)

12 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

ZYL54F4000$$$$

KAPR (Tool cutting edge angle)

140 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

52.25 mm

LH (Head length)

38 mm

LOC-03 ISO

ZYL54F4000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0040

LOC-03 (DCONMS Diameter)

4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00405405

Materials

P,M,K,N,S

OAL (Overall length)

55.71 mm

WF (Functional width)

1.95 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFI - Internal form turning,DPI - Profiling internal

WT (Weight of item)

0.004 kg
