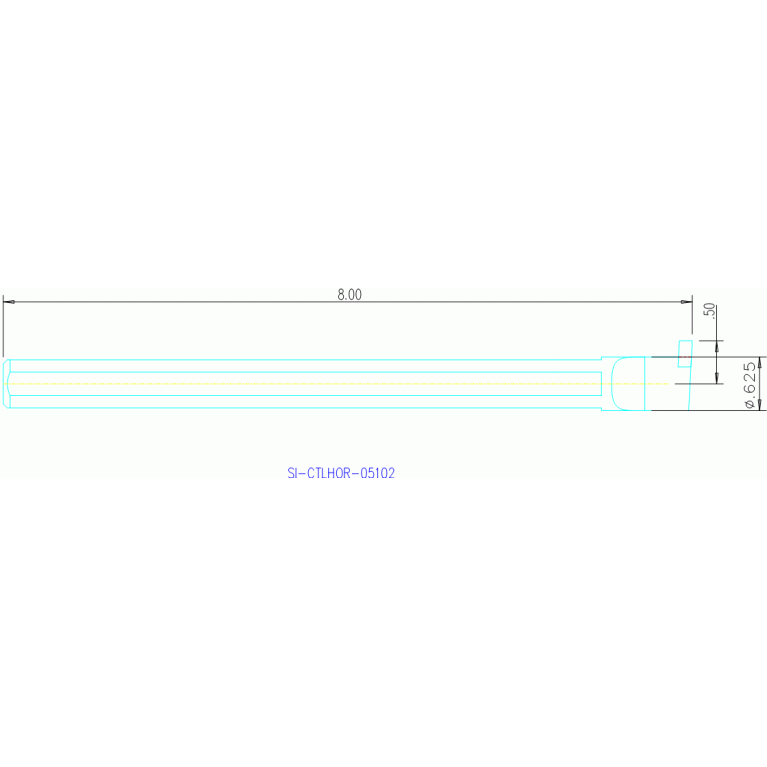

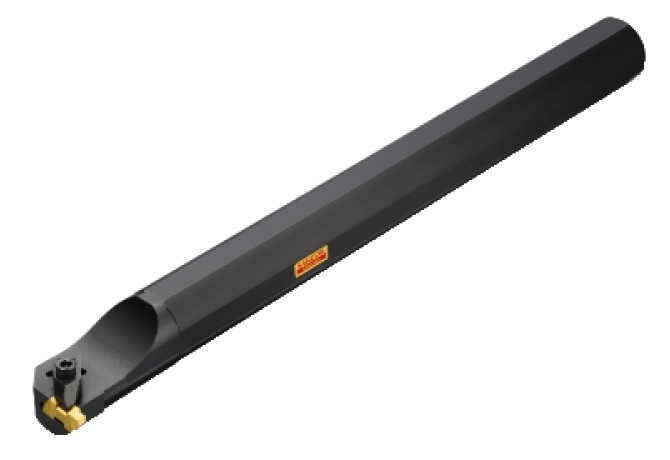

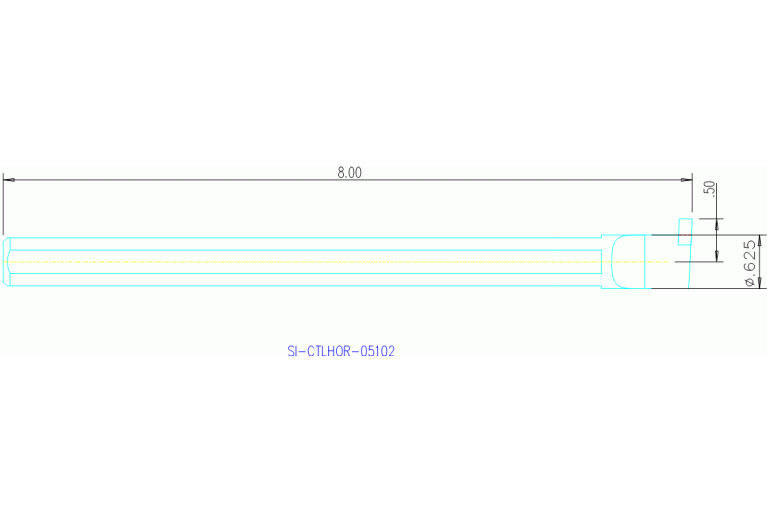

Главная Инструменты 309-05 - Boring bar for ID grooving SI-CTLHOR-05102

SI-CTLHOR-05102

Артикул: 5749396

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

CDX (Cutting depth maximum)

2.8 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

ZYL06252225

DIN CSW1

SV-CL20L000

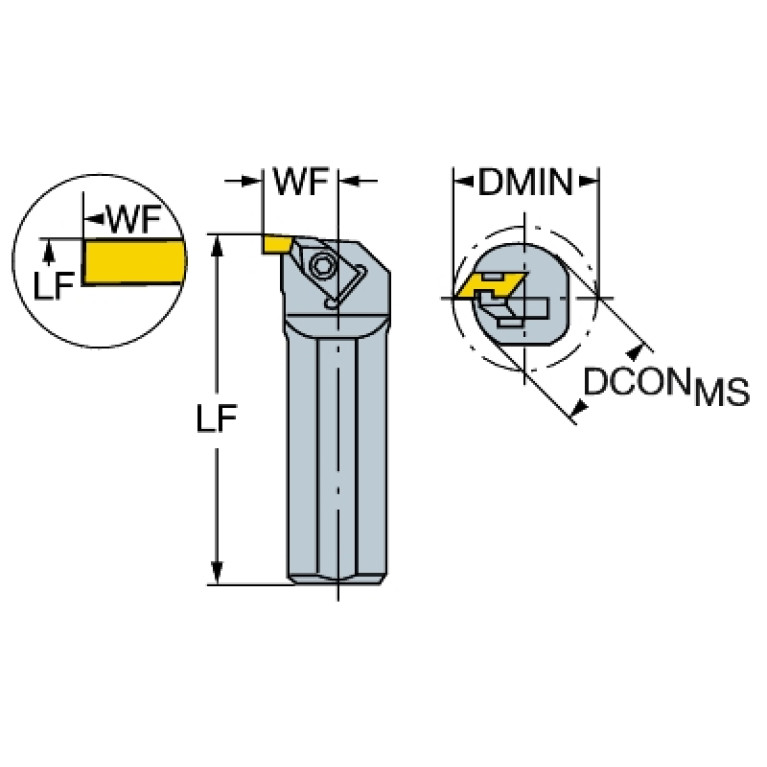

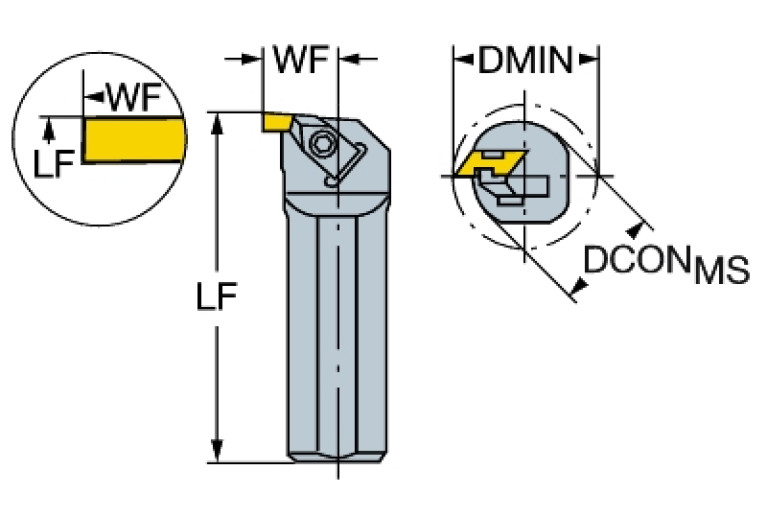

DMIN (Minimum bore diameter)

25.4 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22R6250$$$$

ISO CSW1

SV$$CL2$L$$$*L*$$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

203.2 mm

LH (Head length)

39.675 mm

LOC-03 ISO

ZYL22R6250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0625

LOC-03 (DCONMS Diameter)

15.875 mm

LOC-03 (H Shank height)

14.224 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL06252225

MIID (Master insert identification)

TLG-2125L

OAL (Overall length)

203.2 mm

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

12.7 mm

Working process

DAA - Parting,DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEI - Grooving,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.3 kg
