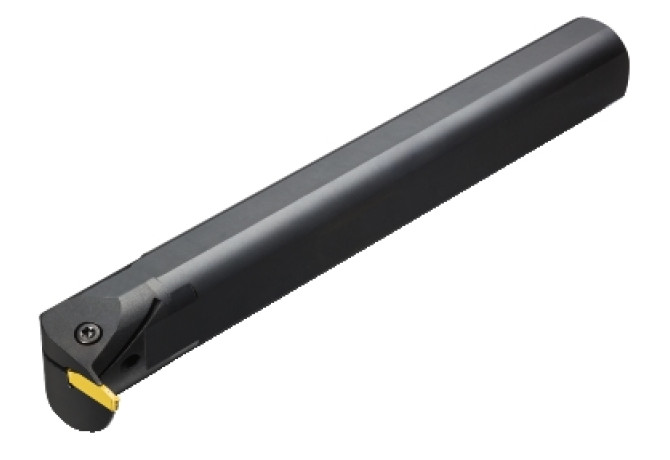

Главная Инструменты 309-05 - Boring bar for ID grooving RAG123K053-32B

RAG123K053-32B

Артикул: 5737476

В наличии

0 ₽

В корзину

Описание

Характеристики

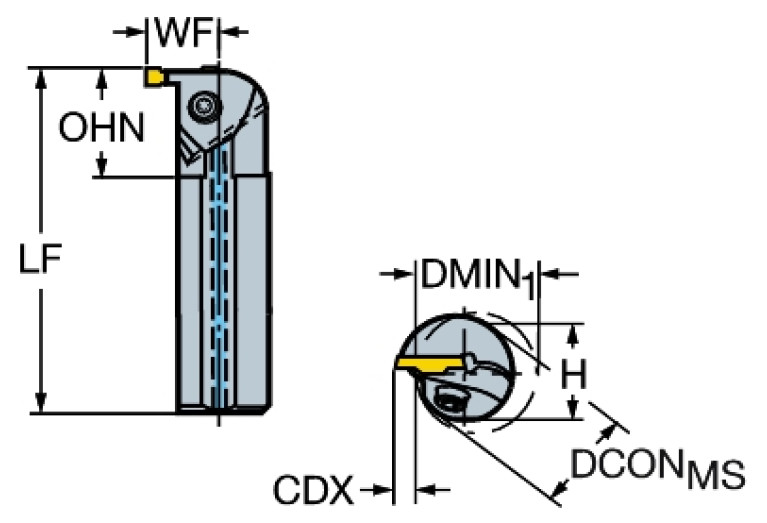

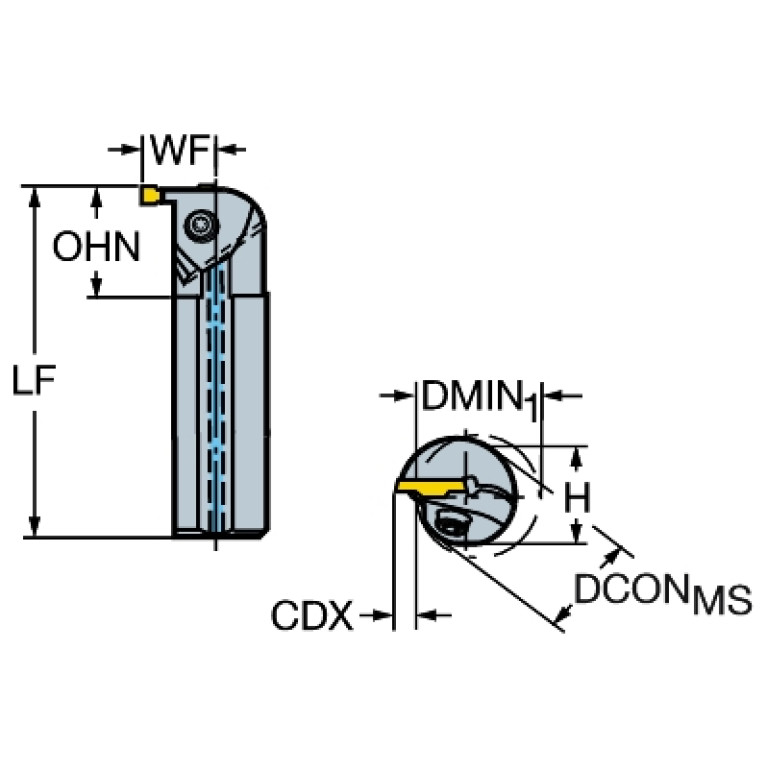

BI (Block index)

CDX (Cutting depth maximum)

13 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CW (Cutting width)

6 mm

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL20002235

DIN CSW1

SV-CCK0H0*0

DMIN (Minimum bore diameter)

60 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22S2000$$$$

ISO CSW1

SV$$CCK$H$$$****$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

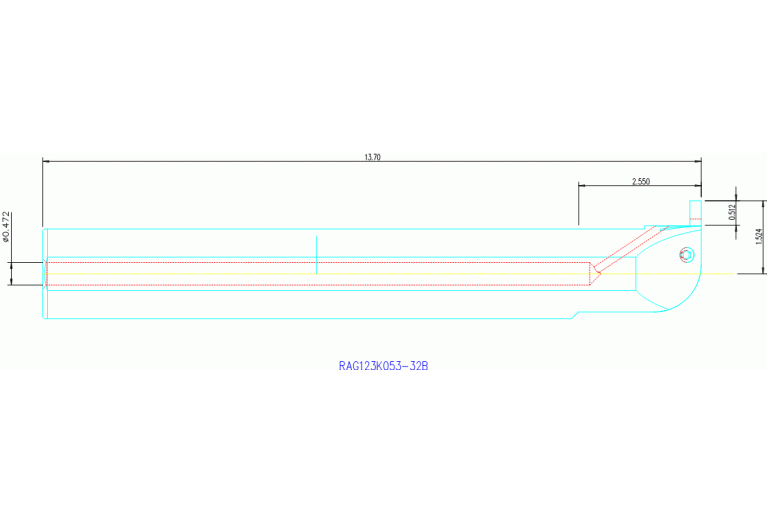

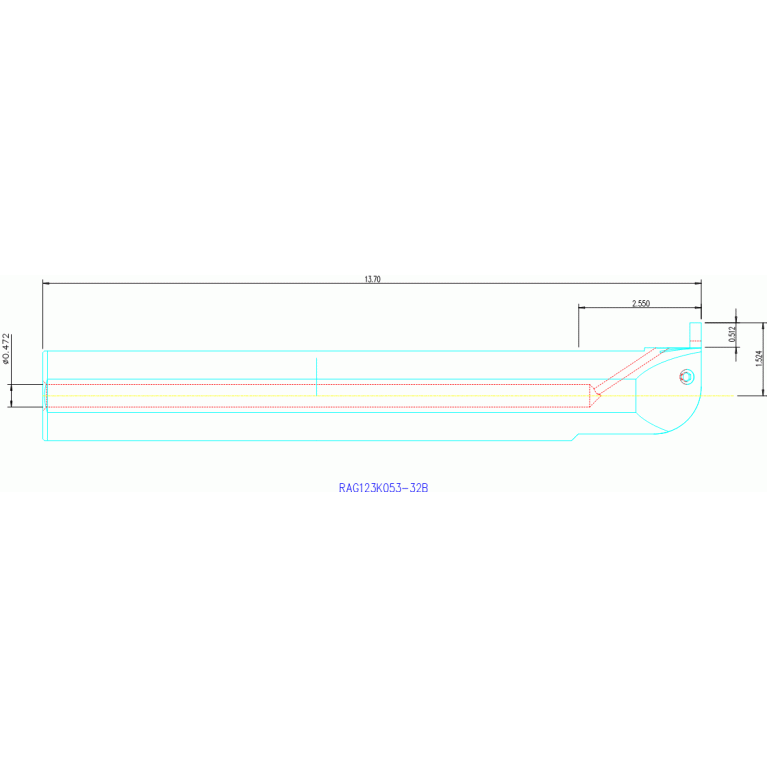

LF (Functional length)

347 mm

LH (Head length)

203.2 mm

LOC-03 ISO

ZYL22S2000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

3 Inch with coolant

LOC-03 (CZCMS Connection size code)

2000

LOC-03 (DCONMS Diameter)

50.8 mm

LOC-03 (H Shank height)

46.99 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL20002235

MIID (Master insert identification)

N123K2-0600-GM

OAL (Overall length)

350 mm

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

38.7 mm

Working process

DAA - Parting,DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEI - Grooving,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

5.094 kg
