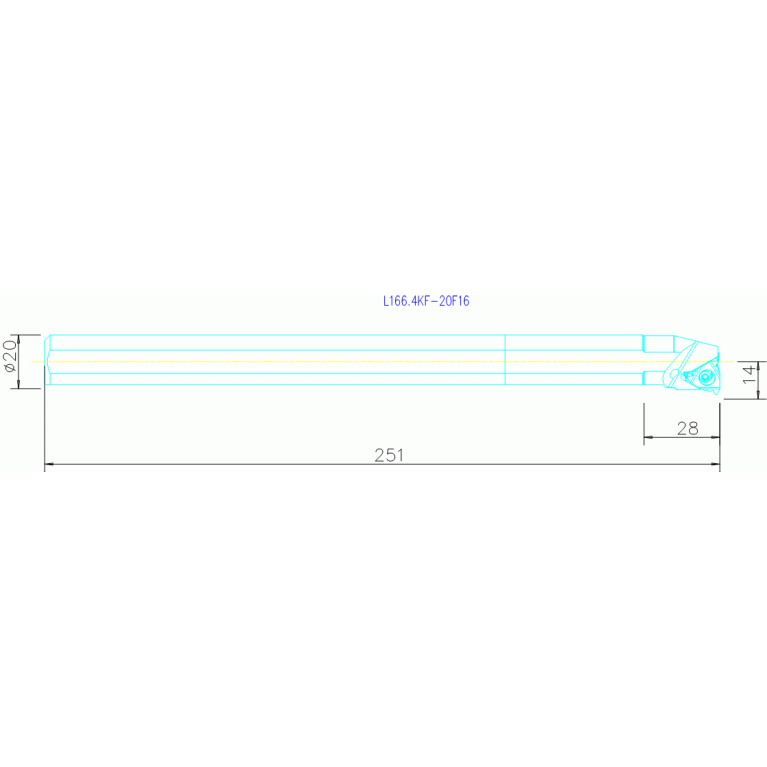

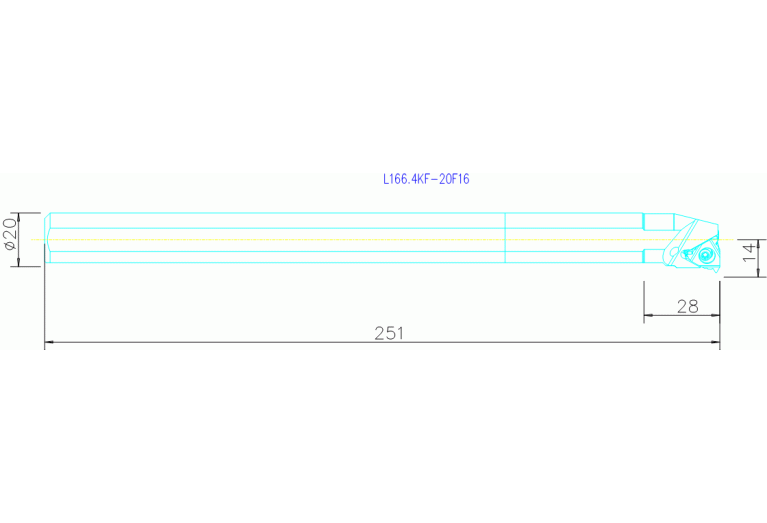

Главная Инструменты 309-03 - Boring bar for internal threading L166.4KF-20F16

L166.4KF-20F16

Артикул: 5735191

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DHD (Drop head design)

0 - Normal

DIN

ZYL02002215

DIN CSW1

SV-TB16T3A0

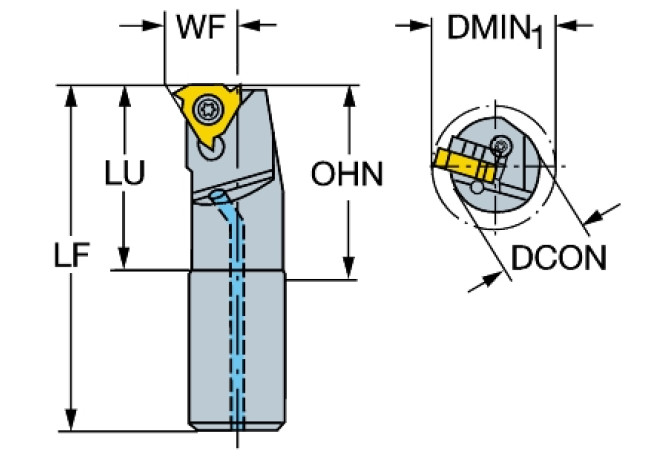

DMIN (Minimum bore diameter)

25 mm

GAMO (Rake angle orthogonal)

-15 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

ZYL22G2000$$$$

ISO CSW1

SV$$TB16T3$$3$*A$$$

LAMS (Inclination angle)

-1 Degree

LF (Functional length)

250 mm

LH (Head length)

60 mm

LOC-03 ISO

ZYL22G2000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03 (H Shank height)

18 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02002215

MIID (Master insert identification)

L166.0L-16..

OAL (Overall length)

250 mm

WF (Functional width)

14 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing,EGE - Threading, external and internal,EGI - Threading, internal

WT (Weight of item)

0.54 kg
