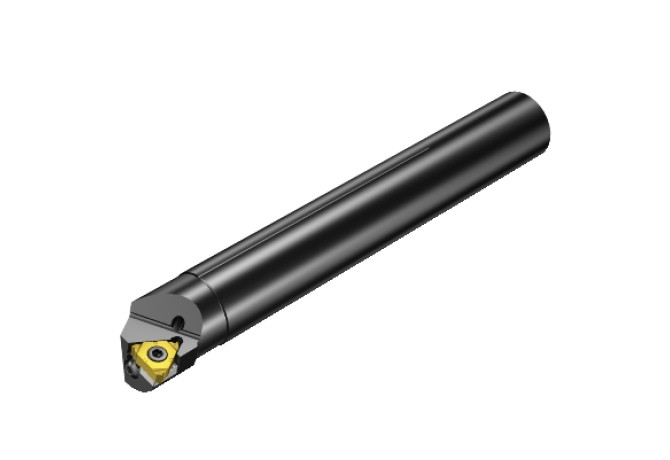

266RKF-D16-3-R
266RKF-D16-3-R
Артикул:
5856081
В наличии
0 ₽
Характеристики
A1A SKJ (Profilform Schneidkörper Pos.A)
60
BI (Block index)
1
BLDA SKJ (Bildkennung Schneidkörper Pos.A)
8
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DHD (Drop head design)
0 - Normal
DIN
ZYL10000135
DIN CSW1
SV-TC16T3B0

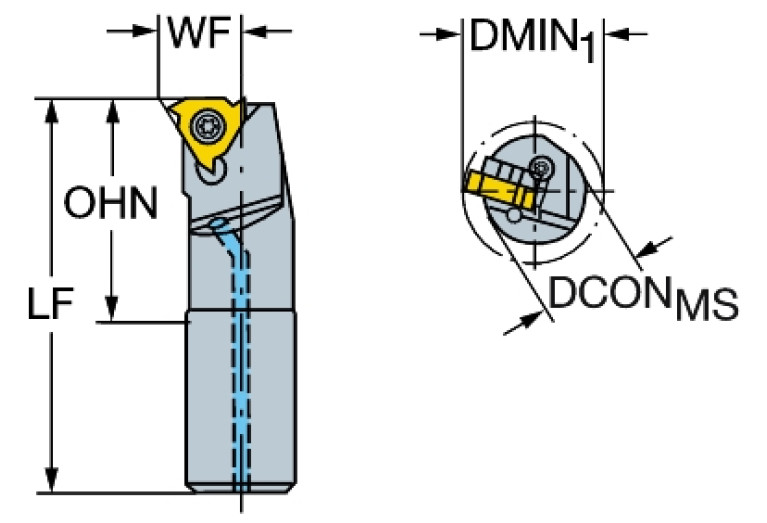

DMIN (Minimum bore diameter)
32.004 mm
GAMO (Rake angle orthogonal)
-15 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
ZYL01S1000$$$$
ISO CSW1
SV$$TC16T3$$8$*B$$$
LAMS (Inclination angle)
-1 Degree

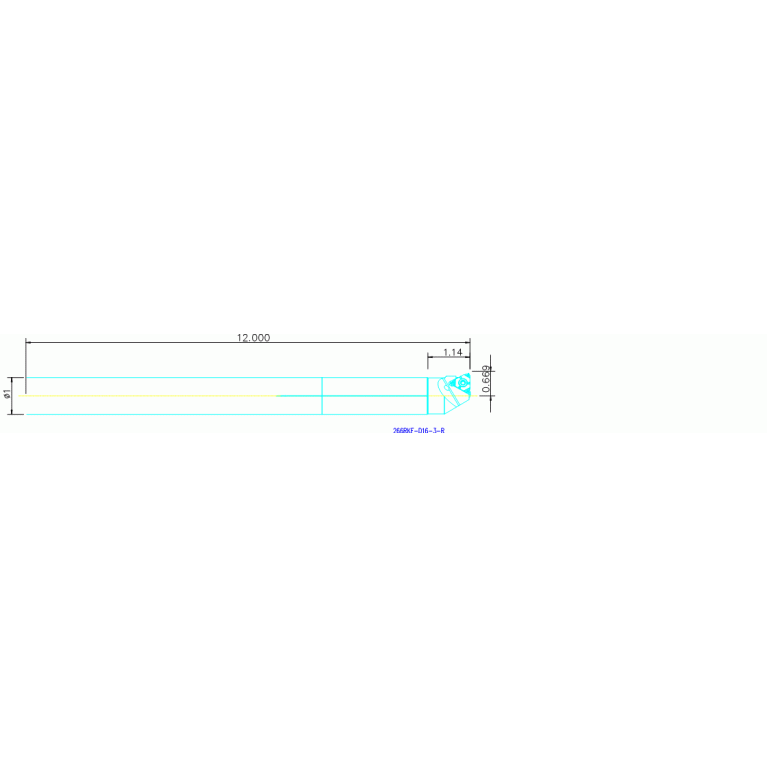

LF (Functional length)
304.8 mm
LH (Head length)
76.2 mm
LOC-03 ISO
ZYL01S1000$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
3 Inch with coolant
LOC-03 (CZCMS Connection size code)
1000
LOC-03 (DCONMS Diameter)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10000135
MIID (Master insert identification)
266.RL-16..
OAL (Overall length)
304.8 mm
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
16.993 mm
Working process
DGI - Thread turning, internal,DSI - Internal thread chasing
WT (Weight of item)
1.047 kg
