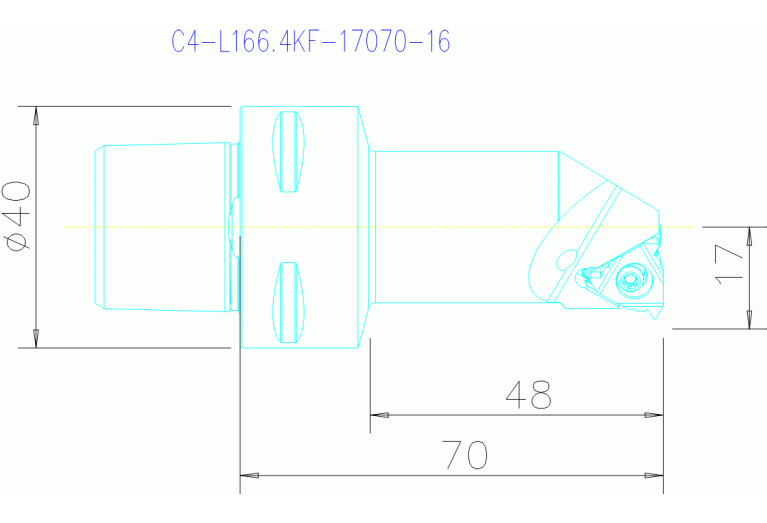

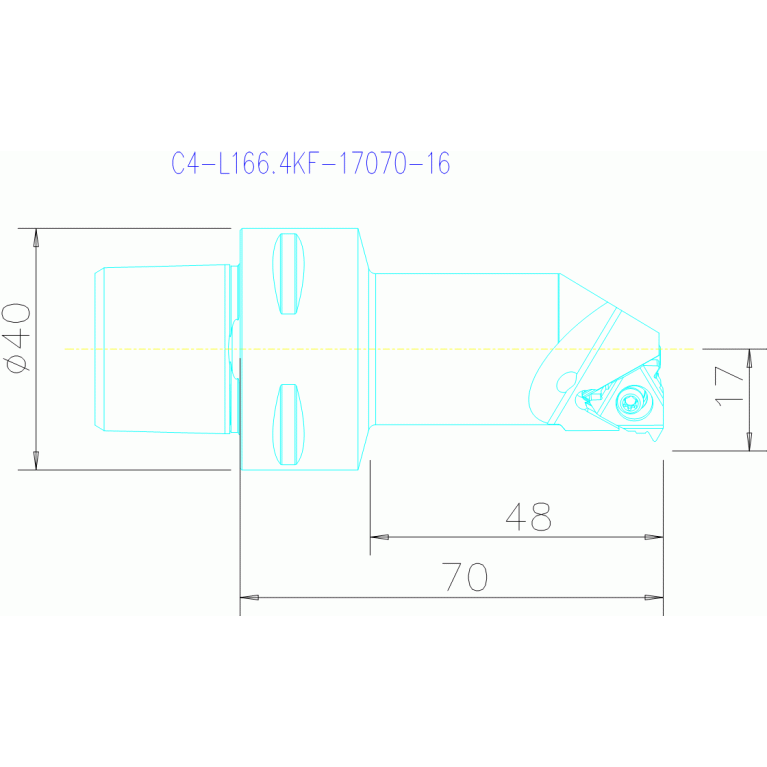

C4-L166.4KF-17070-16
C4-L166.4KF-17070-16
Артикул:
5728049
В наличии
0 ₽
Характеристики
BI (Block index)
1
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DHD (Drop head design)
0 - Normal
DIN
CCS04000195
DIN CSW1
SV-TB16T3A0
DMIN (Minimum bore diameter)
32 mm
GAMO (Rake angle orthogonal)
-15 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0400$$$$
ISO CSW1
SV$$TB16T3$$3$*A$$$
LAMS (Inclination angle)
-1 Degree
LF (Functional length)
70 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR (Protruding length)
70 mm
LTA (Length tool assembly)
70 mm
MIID (Master insert identification)
L166.0L-16..
OAL (Overall length)
94 mm
WF (Functional width)
17 mm
Working process
DGI - Thread turning, internal,DSI - Internal thread chasing,EGE - Threading, external and internal,EGI - Threading, internal
WT (Weight of item)
0.44 kg
