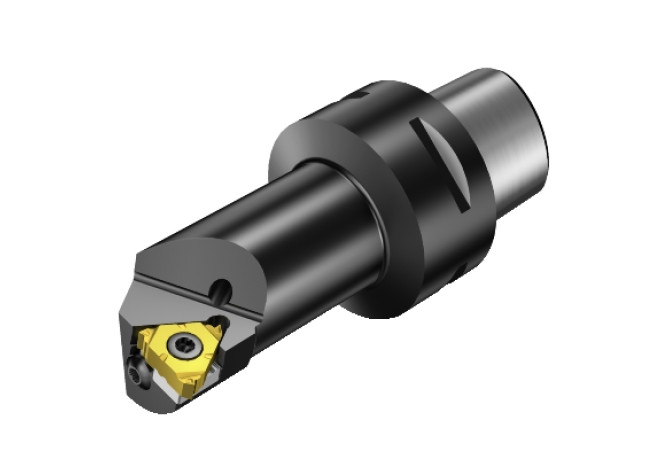

Главная Инструменты 309-10 - System tool for internal threading C4-266RKF-17070-16

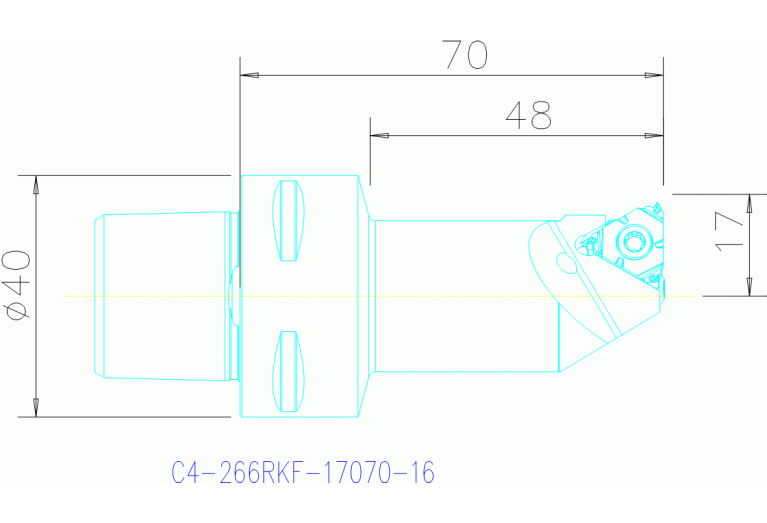

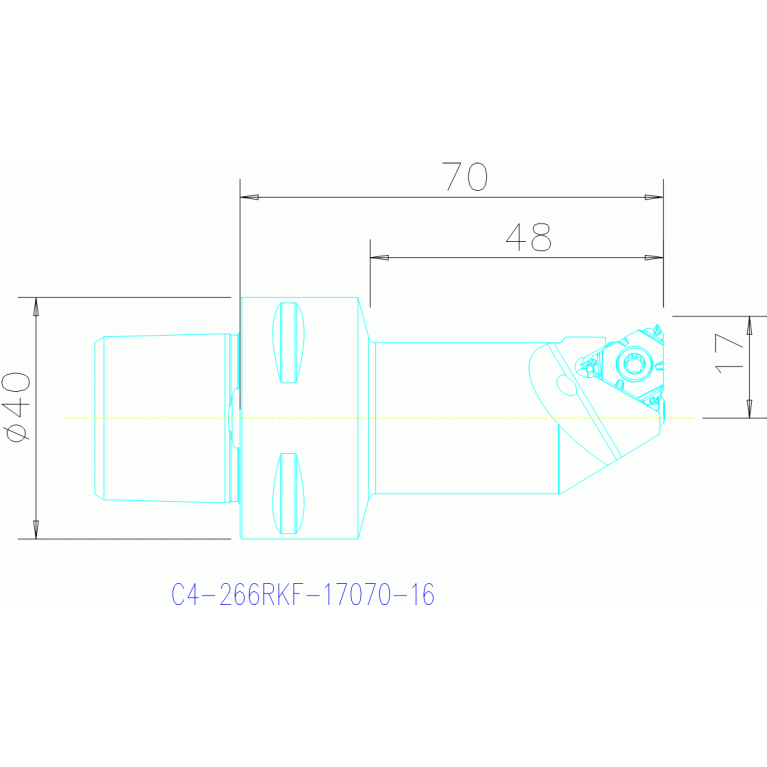

C4-266RKF-17070-16

Артикул: 5727761

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A SKJ (Profilform Schneidkörper Pos.A)

BI (Block index)

BLDA SKJ (Bildkennung Schneidkörper Pos.A)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DHD (Drop head design)

0 - Normal

DIN

CCS04000195

DIN CSW1

SV-TC16T3B0

DMIN (Minimum bore diameter)

32 mm

GAMO (Rake angle orthogonal)

-15 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CCS01C0400$$$$

ISO CSW1

SV$$TC16T3$$8$*B$$$

LAMS (Inclination angle)

-1 Degree

LF (Functional length)

70 mm

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR (Protruding length)

70 mm

LTA (Length tool assembly)

70 mm

MIID (Master insert identification)

266.RL-16..

OAL (Overall length)

94 mm

WF (Functional width)

17 mm

Working process

DGI - Thread turning, internal,DSI - Internal thread chasing

WT (Weight of item)

0.394 kg
