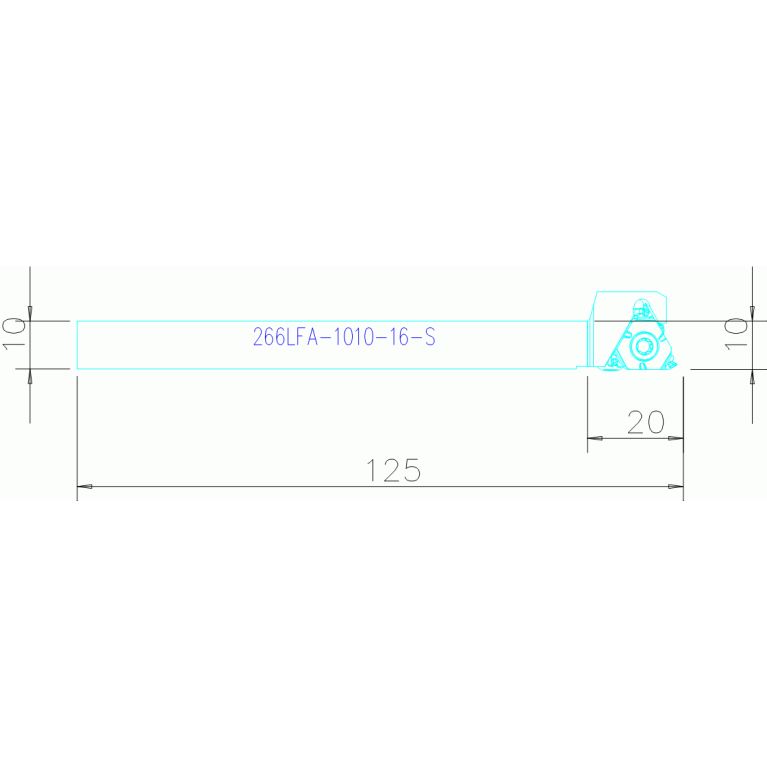

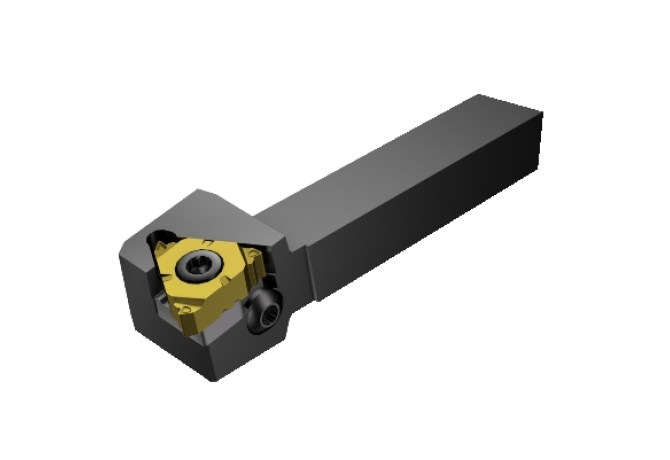

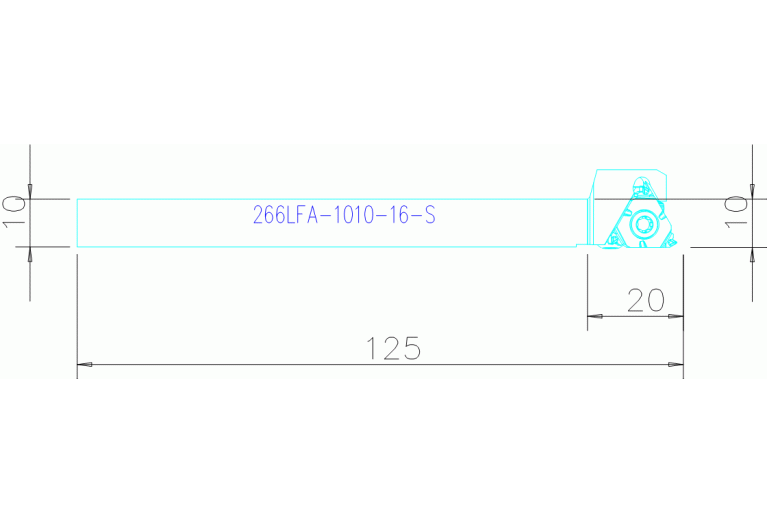

Главная Инструменты 309-02 - Turning tool for external threading 266LFA-1010-16-S

266LFA-1010-16-S

266LFA-1010-16-S 266LFA-1010-16-S 266LFA-1010-16-S 266LFA-1010-16-S

266LFA-1010-16-S

SV - Sandvik-Coromant
Артикул: 5757741
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A SKJ (Profilform Schneidkörper Pos.A)
60
BI (Block index)
1
BLDA SKJ (Bildkennung Schneidkörper Pos.A)
8
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DHD (Drop head design)
0 - Normal
DIN
VKT10100105
DIN CSW1
SV-TC16T3B0
GAMO (Rake angle orthogonal)
-10 Degree
HAND (Cutting direction)
L - Left

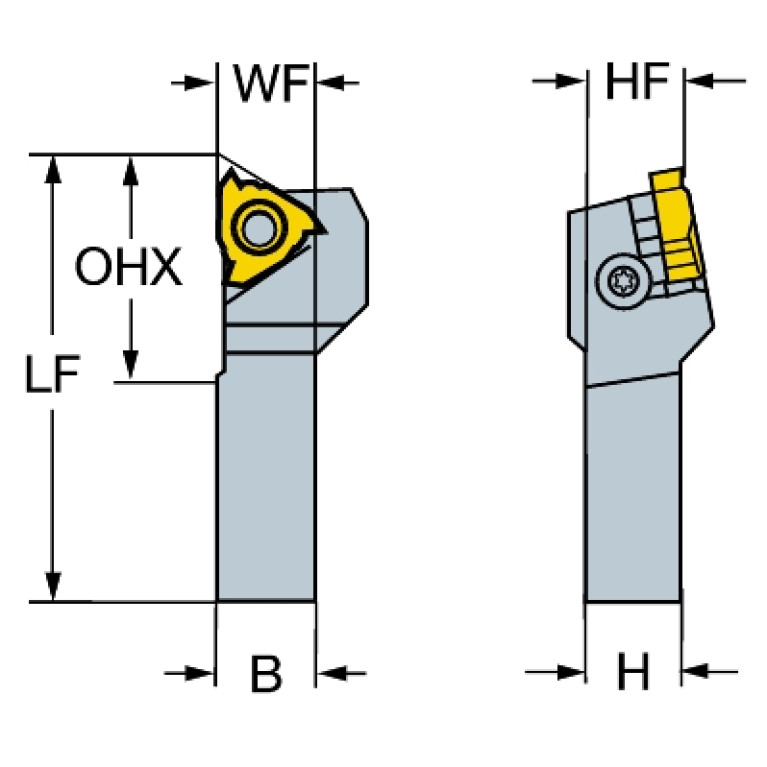

HF (Functional height)
10 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A1010$$$$
ISO CSW1
SV$$TC16T3$$8$*B$$$
LAMS (Inclination angle)
-1 Degree
LF (Functional length)
125 mm
LH (Head length)
19.8 mm
LOC-03 ISO
VKT01A1010$$$$
LOC-03 (B Shank width)
10 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
1010
LOC-03 (H Shank height)
10 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT10100105
MIID (Master insert identification)
266.LG-16..
OAL (Overall length)
125 mm
SX (Shank cross section shape code)
01 - Square shank
THSC (Tool holder shape code)
G - straight shank design
WF (Functional width)
10 mm
Working process
DGA - Thread turning, external,DSA - External thread chasing
WT (Weight of item)
0.1 kg
