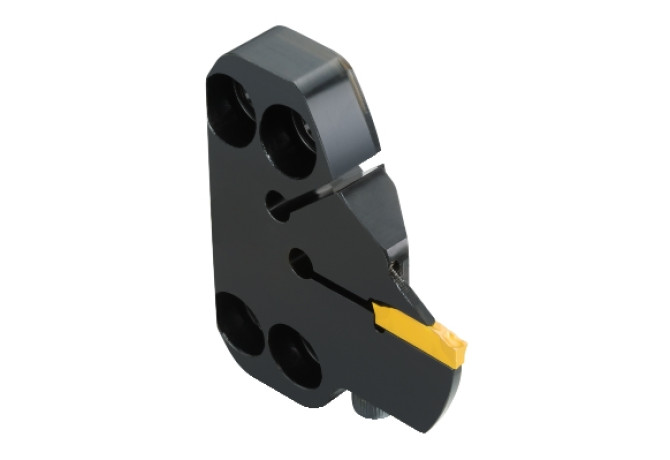

Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified SL70-R123R65A-HP

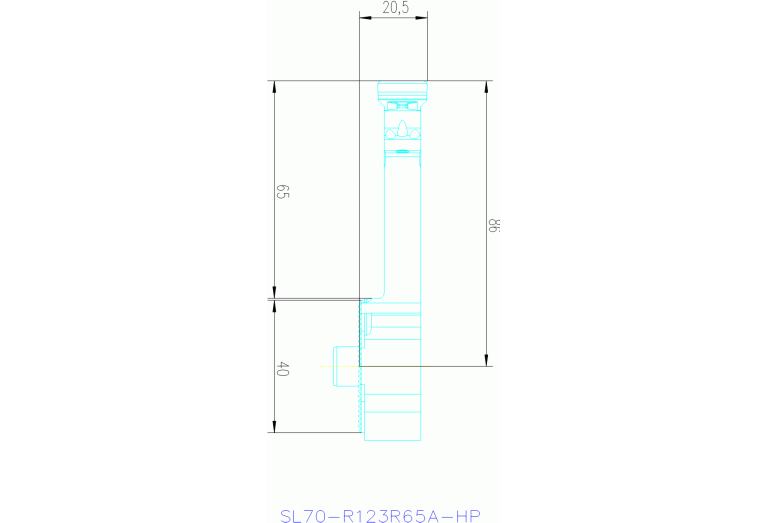

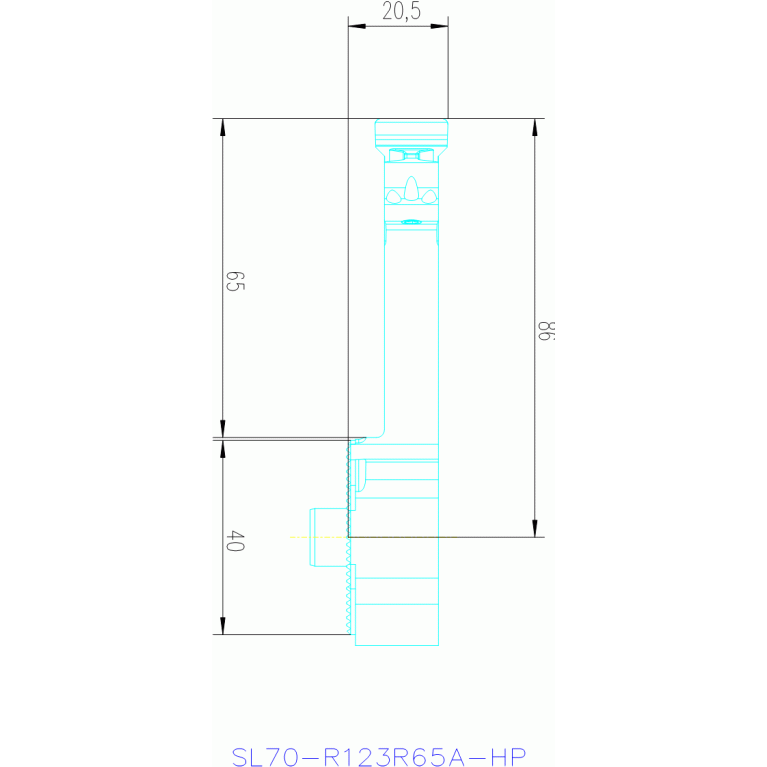

SL70-R123R65A-HP

Артикул: 5925550

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

C1A (Insert thickness Pos. A)

7.49 mm

CDX (Cutting depth maximum)

65 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

500 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CMS07000197

DIN CSW1

SV-CCR0R0*0

DMIN (Minimum bore diameter)

125 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS01C0700$$$$

ISO CSW1

SV$$CCR$R$$$****$$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

15 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

9 mm

LOC-01 ISO

SV$$CCR$R$$$****$$$

LOC-01 (BI Block index)

LOC-01 (L Cutting edge length)

15 mm

LOC-01 (MIID Master insert identification)

N123R1-1500-0010-GR

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-CCR0R0*0

LOC-03 ISO

CMS01C0700$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0700

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS07000197

LTA (Length tool assembly)

9 mm

MIID (Master insert identification)

N123R1-1500-0010-GR

OAL (Overall length)

24.3 mm

WF (Functional width)

71 mm

Working process

DAA - Parting,DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.538 kg
