Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified SL70-CRDCR-35-09V

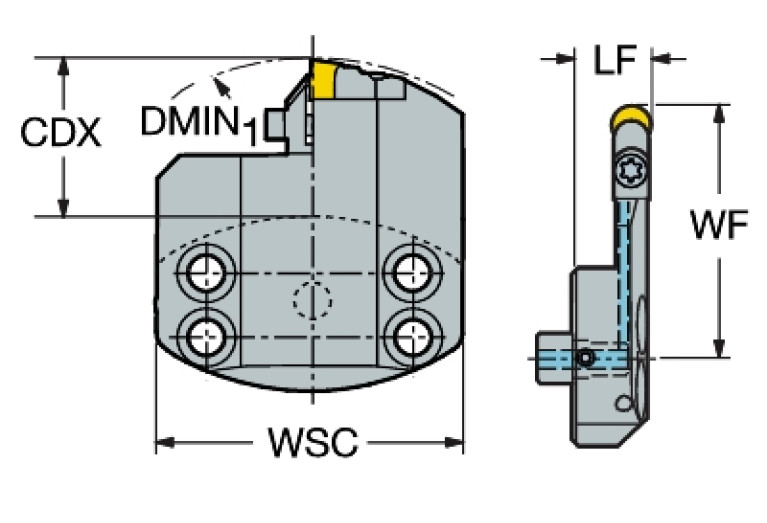

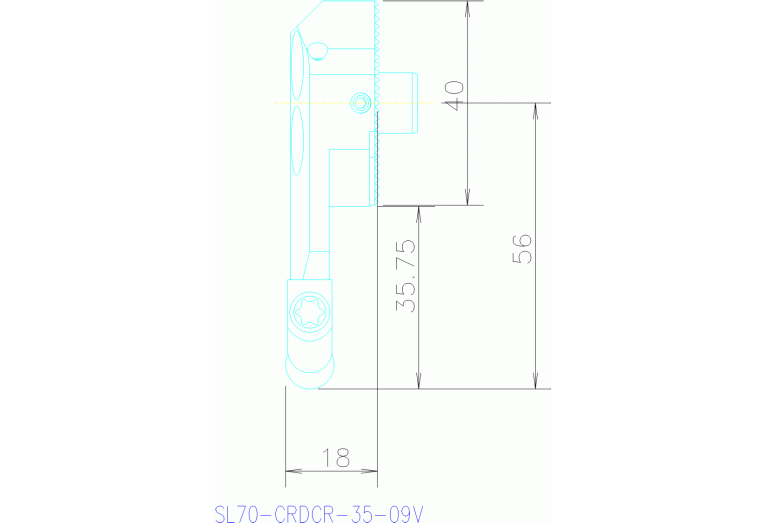

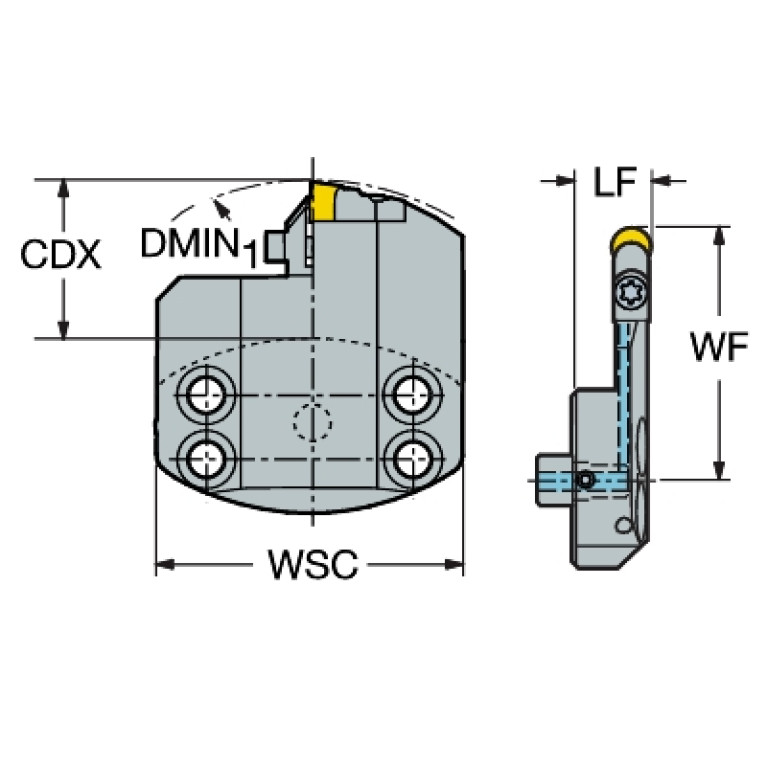

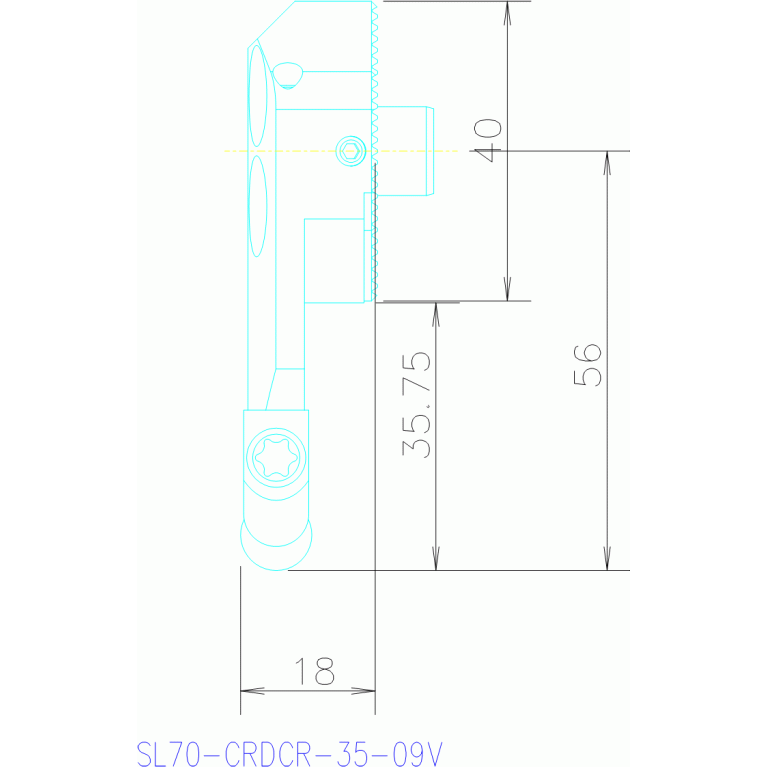

SL70-CRDCR-35-09V

Артикул: 6632397

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

9.525 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

7.938 mm

CDX (Cutting depth maximum)

35 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

270 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

CMS07000197

DIN CSW1

RC090700*N

DMIN (Minimum bore diameter)

125 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CMS01C0700$$$$

ISO CSW1

ISO$RC090700*****00

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

18 mm

LOC-01 ISO

ISO$RC090700*****00

LOC-01 (BI Block index)

LOC-01 (MIID Master insert identification)

RCGX090700

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

RC090700*N

LOC-02 ISO

ISO$RP090700*****00

LOC-02 (BI Block index)

LOC-02 (MIID Master insert identification)

RCGX090700

LOC-02-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 02)

LOC-02-DIN

RP090700*N

LOC-03 ISO

CMS01C0700$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0700

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS07000197

LTA (Length tool assembly)

18 mm

MIID (Master insert identification)

RCGX090700

OAL (Overall length)

25.8 mm

WF (Functional width)

56 mm

Working process

DAA - Parting,DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.323 kg
