Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified QSM16-SDJCR-11B-Y

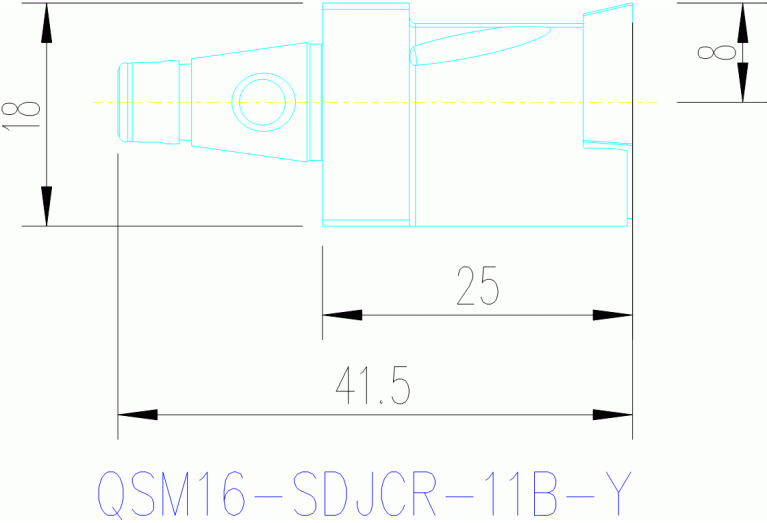

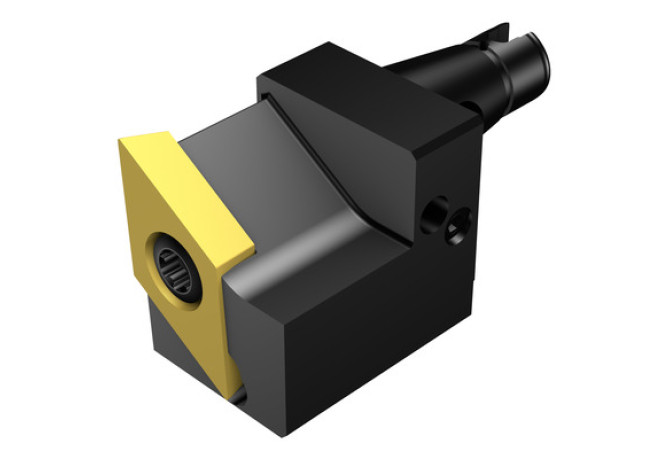

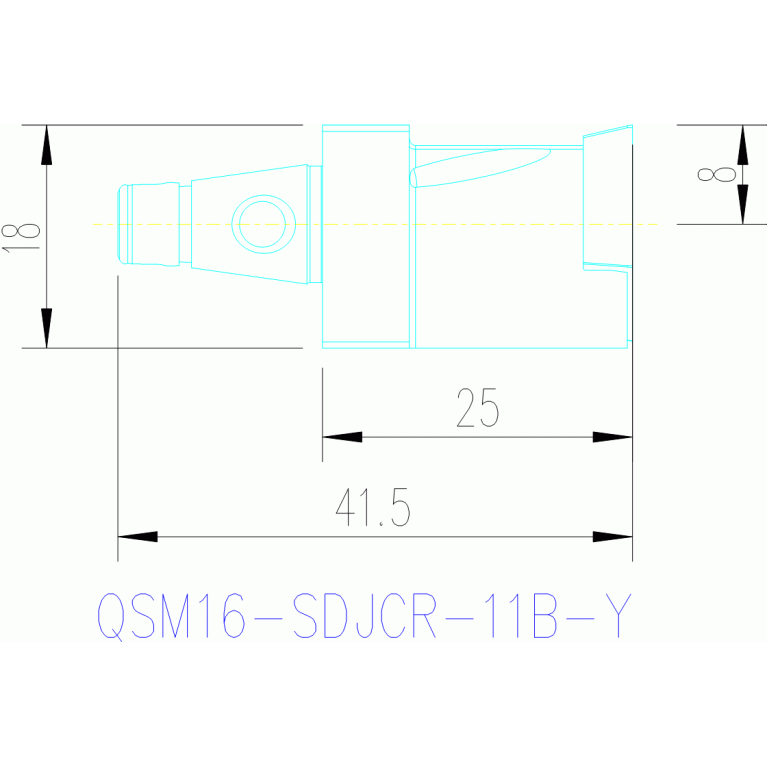

QSM16-SDJCR-11B-Y

QSM16-SDJCR-11B-Y QSM16-SDJCR-11B-Y QSM16-SDJCR-11B-Y

QSM16-SDJCR-11B-Y

SV - Sandvik-Coromant
Артикул: 8608173
В наличии
0 ₽
В корзину
Описание
Характеристики
A1A (Cutting edge angle major Pos. A)
55 Degree
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
9.525 mm
BI (Block index)
1
BLDA (Tool style code Position A)
3
C1A (Insert thickness Pos. A)
3.969 mm
CEATC (Tool cutting edge angle type code)
S - Side lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
0.198 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2024
DIN
SQC016R0195
DIN CSW1
DC11T3993N
EPSR (Insert included angle)
55 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
8 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
SQC01C016R$$$$
ISO CSW1
ISO$DC11T3003******
KAPR (Tool cutting edge angle)
93 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
25 mm
LOC-01 ISO
ISO$DC11T3003******
LOC-01 (BI Block index)
1
LOC-01 (EPSR Insert included angle)
55 Degree
LOC-01 (MIID Master insert identification)
DCMT11T302
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
DC11T3993N
LOC-03 ISO
SQC01C016R$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
SQC
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
016R
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SQC016R0195
LTA (Length tool assembly)
25 mm
LU (Usable length)
23 mm
MIID (Master insert identification)
DCMT11T302
OAL (Overall length)
41.5 mm
WF (Functional width)
8 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.044 kg
