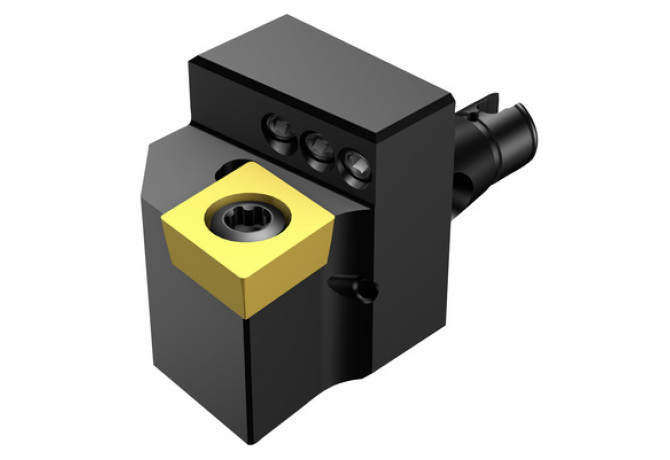

Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified QSM12-SCLCR-06C

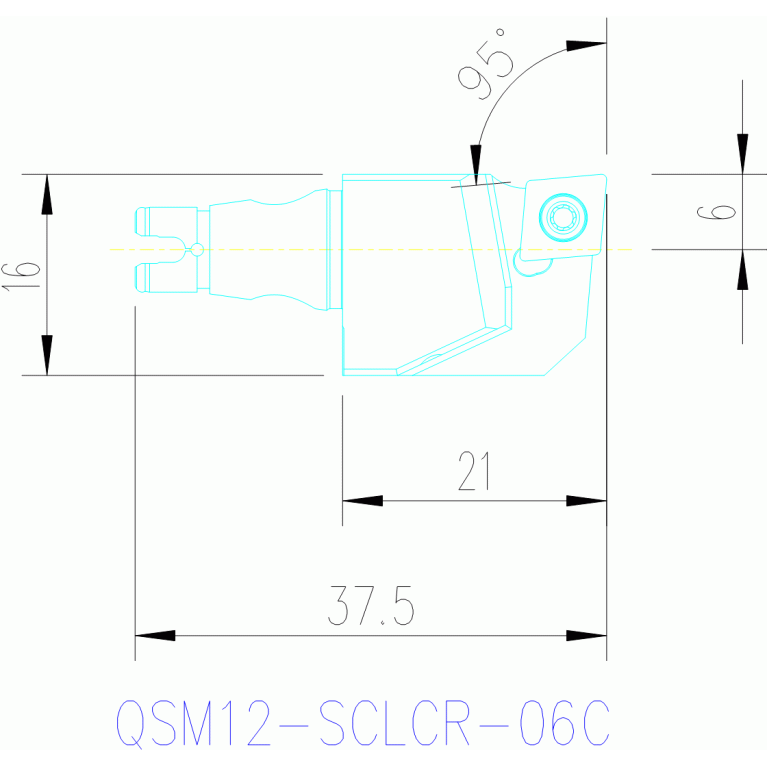

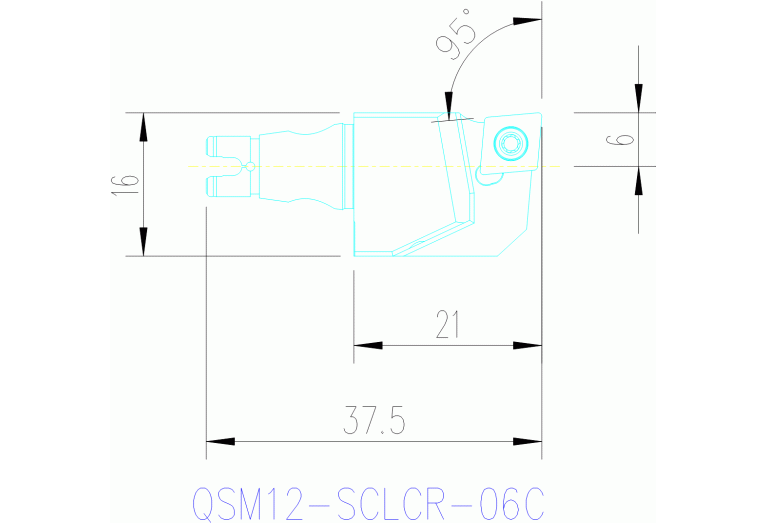

QSM12-SCLCR-06C

Артикул: 8608137

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A (Cutting edge angle major Pos. A)

80 Degree

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

6.35 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

2.381 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.397 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2024

DIN

SQC012R0195

DIN CSW1

CC0602993N

EPSR (Insert included angle)

80 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

6 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

SQC01C012R$$$$

ISO CSW1

ISO$CC0602003******

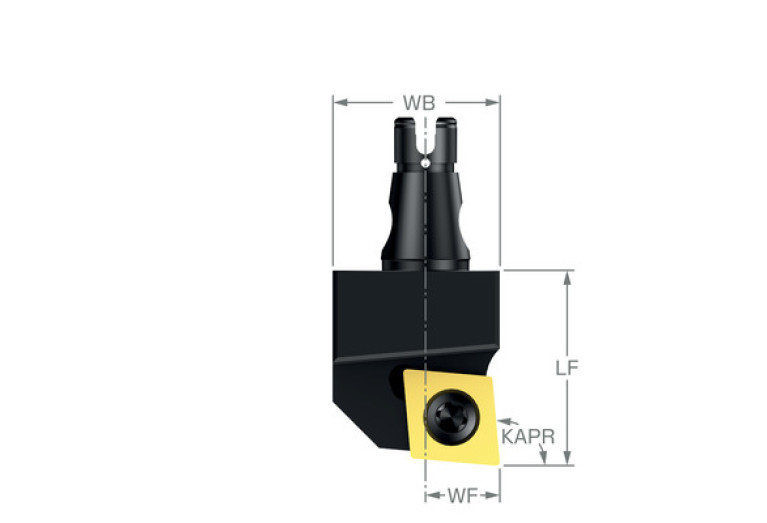

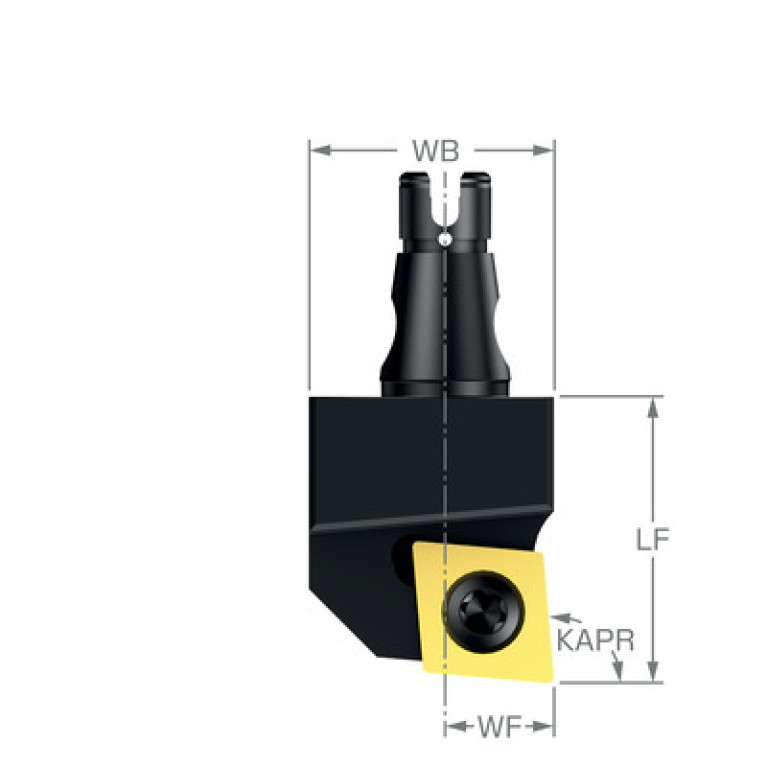

KAPR (Tool cutting edge angle)

95 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

21 mm

LOC-01 ISO

ISO$CC0602003******

LOC-01 (BI Block index)

LOC-01 (EPSR Insert included angle)

80 Degree

LOC-01 (MIID Master insert identification)

CCMT060204

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

CC0602993N

LOC-03 ISO

SQC01C012R$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

SQC

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

012R

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SQC012R0195

LTA (Length tool assembly)

21 mm

MIID (Master insert identification)

CCMT060204

OAL (Overall length)

37.5 mm

WF (Functional width)

6 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

0.039 kg
