Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified QS-QI-RGH20C2525-024B

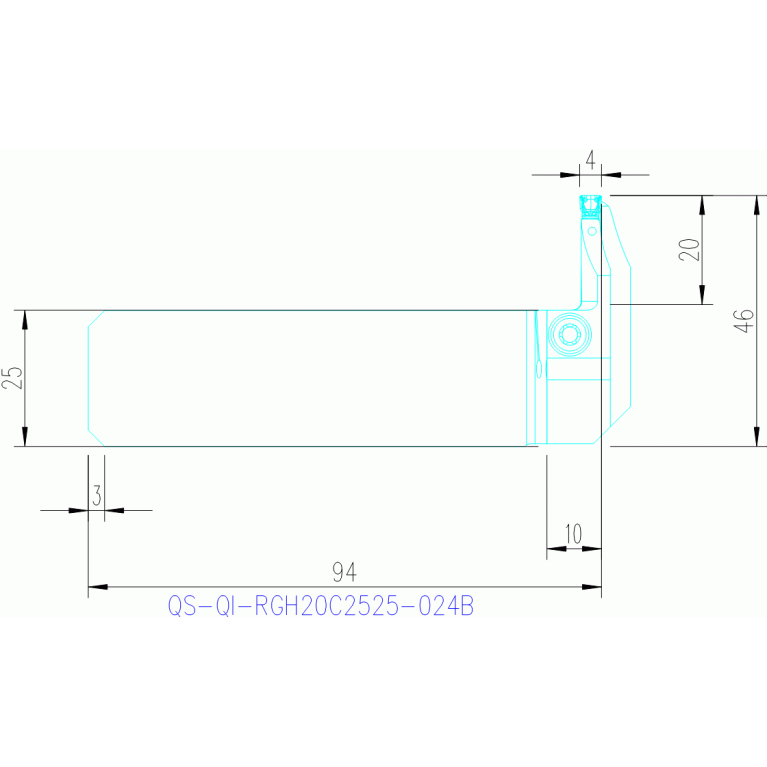

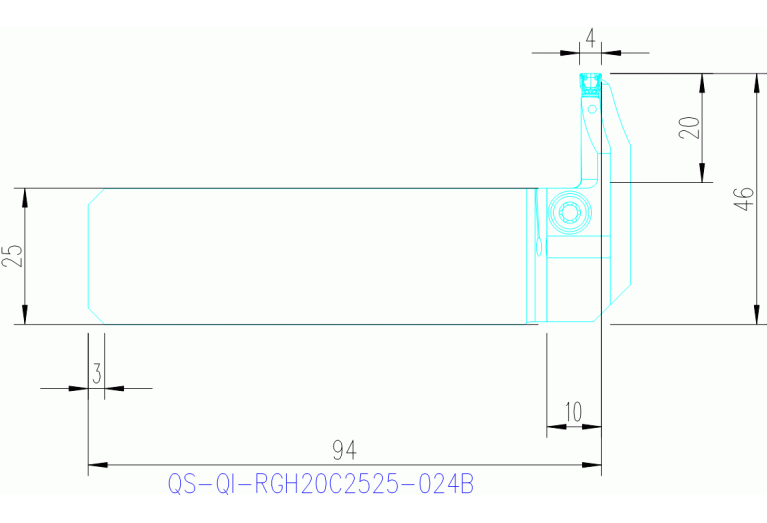

QS-QI-RGH20C2525-024B

Артикул: 7941908

В наличии

0 ₽

В корзину

Описание

Характеристики

AXGSUP (Axial groove support direction)

BI (Block index)

C1A (Insert thickness Pos. A)

3.15 mm

CDX (Cutting depth maximum)

20 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

32 mm

DAXX (Axial groove od max)

44 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

VKT25250115

DIN CSW1

SV-CO**H010

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

25 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2525$$$$

ISO CSW1

SV$$CO**H$39***1$50

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

4 mm

LAMS (Inclination angle)

-6 Degree

LF (Functional length)

92 mm

LOC-01 ISO

SV$$CO**H$39***1$50

LOC-01 (BI Block index)

LOC-01 (L Cutting edge length)

4 mm

LOC-01 (MIID Master insert identification)

QI-NH-0400-0003-TF

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-CO**H010

LOC-03 ISO

VKT01A2525$$$$

LOC-03 (B Shank width)

25 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

2525

LOC-03 (H Shank height)

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

LTA (Length tool assembly)

92 mm

MIID (Master insert identification)

QI-NH-0400-0003-TF

OAL (Overall length)

99.3 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

46 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.464 kg
