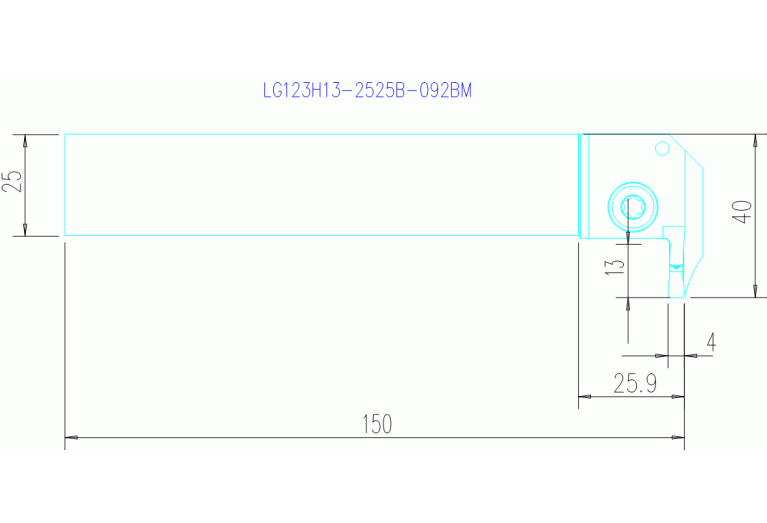

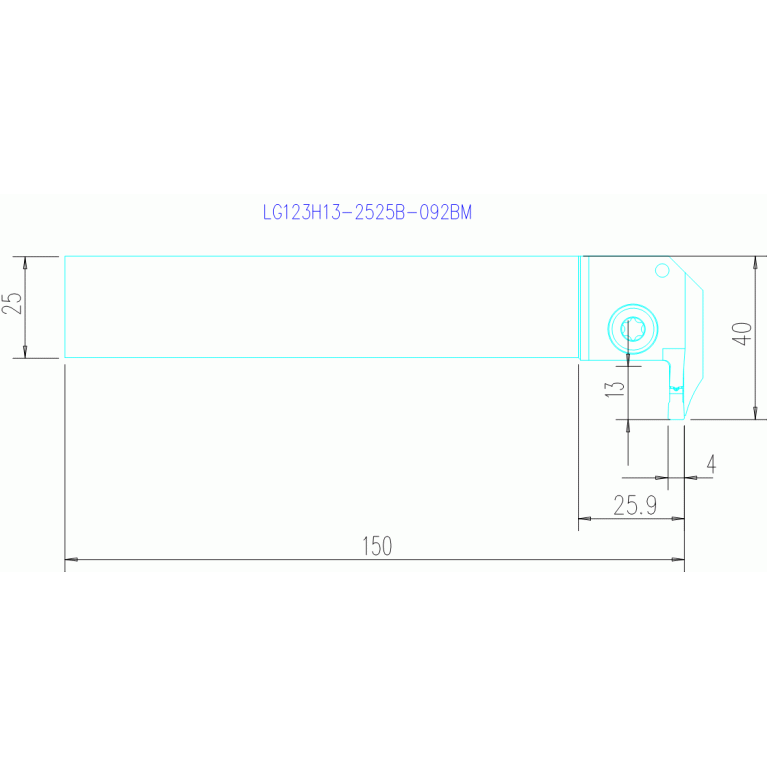

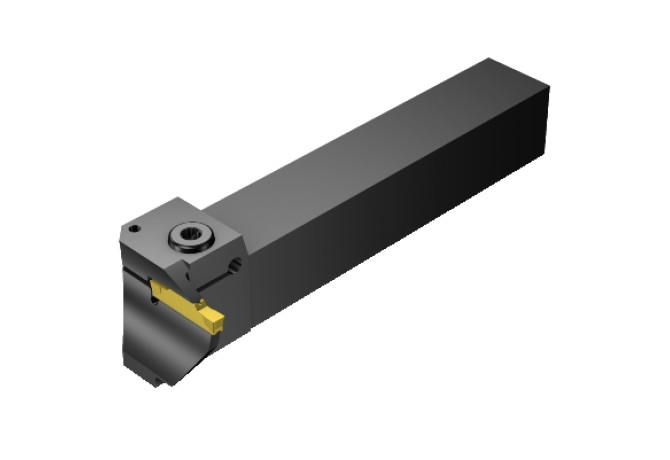

LG123H13-2525B-092BM
LG123H13-2525B-092BM
Артикул:
5853797
В наличии
0 ₽
Характеристики
AXGSUP (Axial groove support direction)
2
BI (Block index)
1
C1A (Insert thickness Pos. A)
4.35 mm
CDX (Cutting depth maximum)
13 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DAXN (Axial groove od min)
100 mm
DAXX (Axial groove od max)
140 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
VKT25250105
DIN CSW1
SV-CCH*H**0
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
25 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A2525$$$$
ISO CSW1
SV$$CCH*H*$$****$$$
KAPR (Tool cutting edge angle)
90 Degree
L (Cutting edge length)
4 mm
LAMS (Inclination angle)
0 Degree
LF (Functional length)
148 mm
LOC-01 ISO
SV$$CCH*H*$$****$$$
LOC-01 (BI Block index)
1
LOC-01 (L Cutting edge length)
4 mm
LOC-01 (MIID Master insert identification)
N123H2-0400-0004-TF
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
SV-CCH*H**0
LOC-03 ISO
VKT01A2525$$$$
LOC-03 (B Shank width)
25 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
2525
LOC-03 (H Shank height)
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
LTA (Length tool assembly)
148 mm
MIID (Master insert identification)
N123H2-0400-0004-TF
OAL (Overall length)
156.6 mm
SX (Shank cross section shape code)
01 - Square shank
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
40 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving
WT (Weight of item)
0.775 kg
