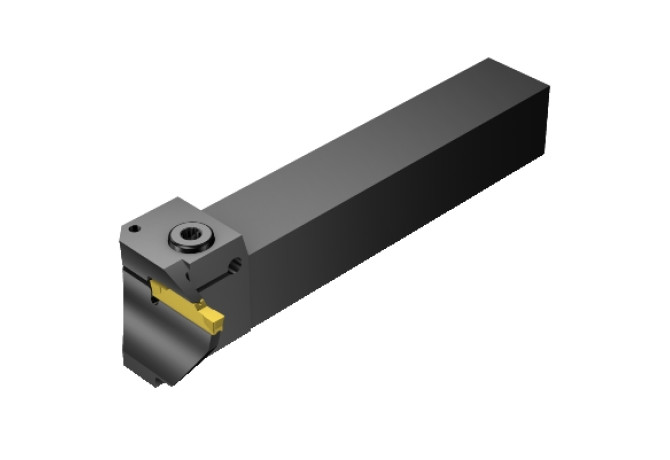

Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified LG123H079-16B-064BM

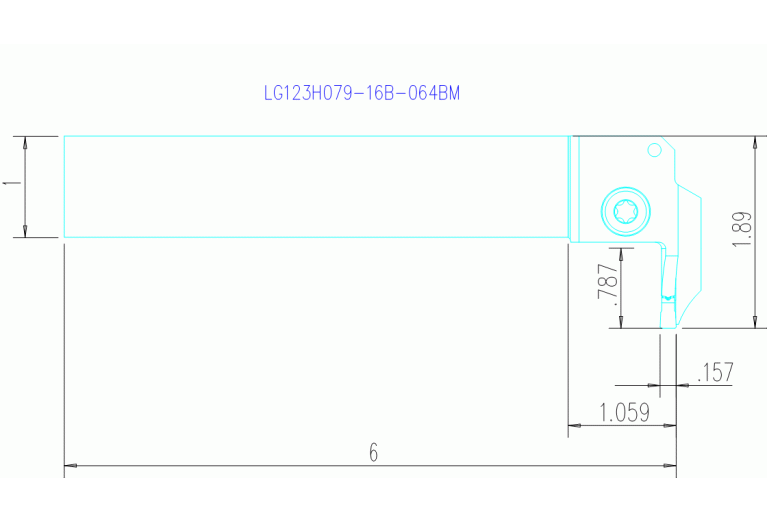

LG123H079-16B-064BM

Артикул: 5734043

В наличии

0 ₽

В корзину

Описание

Характеристики

AXGSUP (Axial groove support direction)

BI (Block index)

C1A (Insert thickness Pos. A)

4.35 mm

CDX (Cutting depth maximum)

20.066 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DAXN (Axial groove od min)

72 mm

DAXX (Axial groove od max)

100 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

VKT16160125

DIN CSW1

SV-CCH*H**0

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

25.4 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01B1616$$$$

ISO CSW1

SV$$CCH*H*$$****$$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

4 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

150.4 mm

LOC-01 ISO

SV$$CCH*H*$$****$$$

LOC-01 (BI Block index)

LOC-01 (L Cutting edge length)

4 mm

LOC-01 (MIID Master insert identification)

N123H2-0400-0004-TF

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-CCH*H**0

LOC-03 ISO

VKT01B1616$$$$

LOC-03 (B Shank width)

25.4 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

1616

LOC-03 (H Shank height)

25.4 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT16160125

LTA (Length tool assembly)

150.4 mm

MIID (Master insert identification)

N123H2-0400-0004-TF

OAL (Overall length)

160.6 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

46.99 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.817 kg
