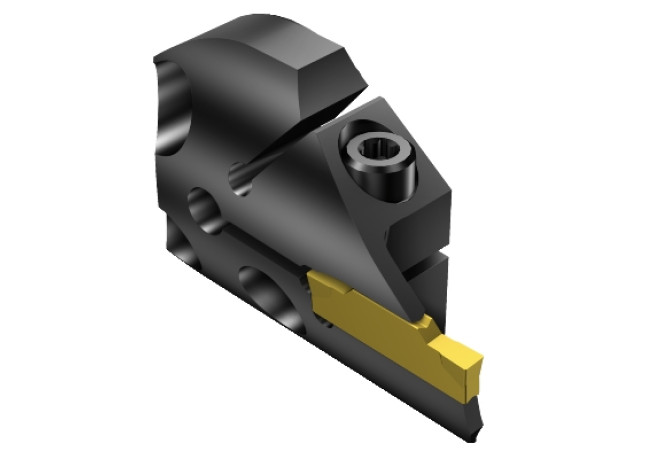

570-32R123J18B060A
570-32R123J18B060A
Артикул:
5764790
В наличии
0 ₽
Характеристики
AXGSUP (Axial groove support direction)
1
BI (Block index)
1
C1A (Insert thickness Pos. A)
4.35 mm

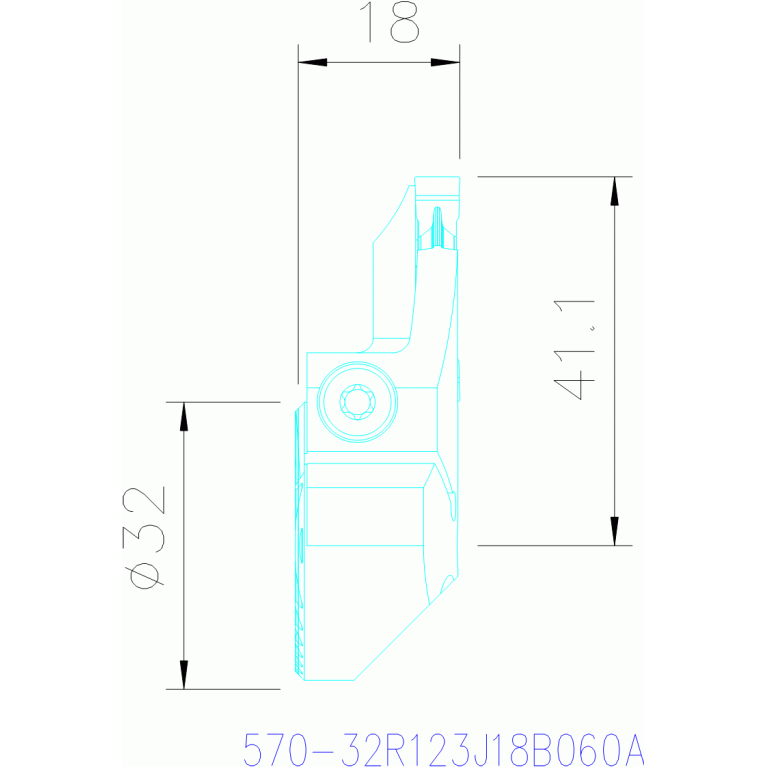

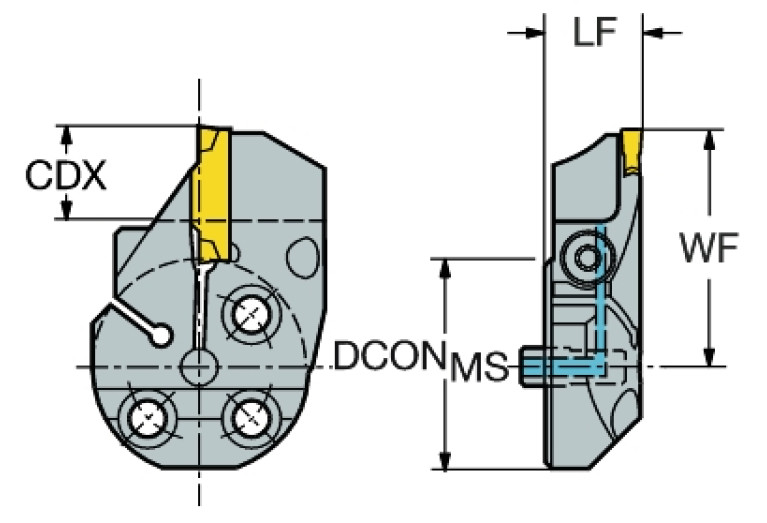

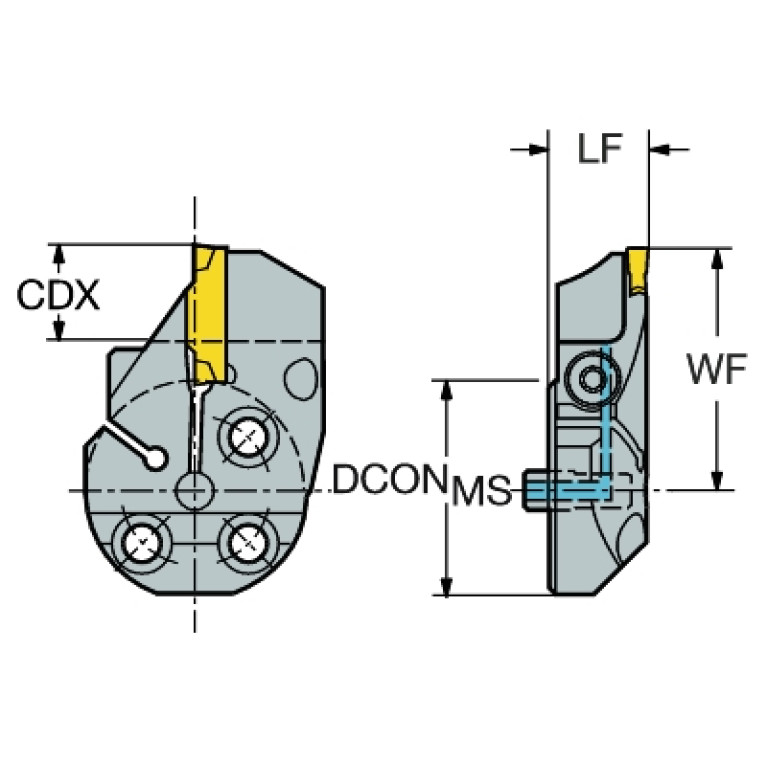

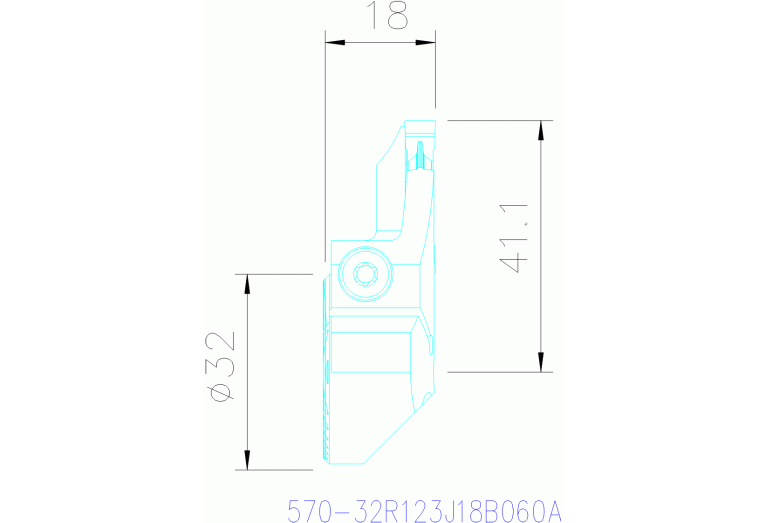

CDX (Cutting depth maximum)
18 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
1 - With Coolant entry, axial concentric
CXSC (Coolant exit style code)
2 - With Coolant exit, radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
2 - With Coolant exit, radial
DAXN (Axial groove od min)
70 mm
DAXX (Axial groove od max)
95 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
CMS03200197
DIN CSW1
SV-CCJ0H0*0
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0.1 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CMS01C0320$$$$
ISO CSW1
SV$$CCJ$H$$$****$$$
KAPR (Tool cutting edge angle)
90 Degree
L (Cutting edge length)
5 mm
LAMS (Inclination angle)
0 Degree
LF (Functional length)
15.5 mm
LOC-01 ISO
SV$$CCJ$H$$$****$$$
LOC-01 (BI Block index)
1
LOC-01 (L Cutting edge length)
5 mm
LOC-01 (MIID Master insert identification)
N123J2-0500-0004-TF
LOC-01-Connection-codes
J41 / J441 - Interface code position A (cutting edge) (Unknown 01)
LOC-01-DIN
SV-CCJ0H0*0
LOC-03 ISO
CMS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
7 Serrated connection
LOC-03 (CCTMS Connection code type)
CMS Coromant Modular boring SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03 (DCONMS Diameter)
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CMS03200197
LTA (Length tool assembly)
15.5 mm
MIID (Master insert identification)
N123J2-0500-0004-TF
OAL (Overall length)
21.8 mm
WF (Functional width)
41.1 mm
Working process
DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving
WT (Weight of item)
0.15 kg
