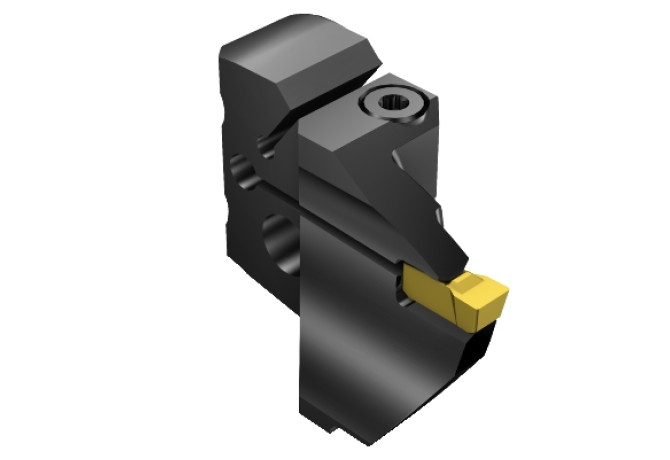

Главная Инструменты 309-00 - Tool holder for indexable inserts unspecified 570-32L151.3-032B30

570-32L151.3-032B30

Артикул: 5764662

В наличии

0 ₽

В корзину

Описание

Характеристики

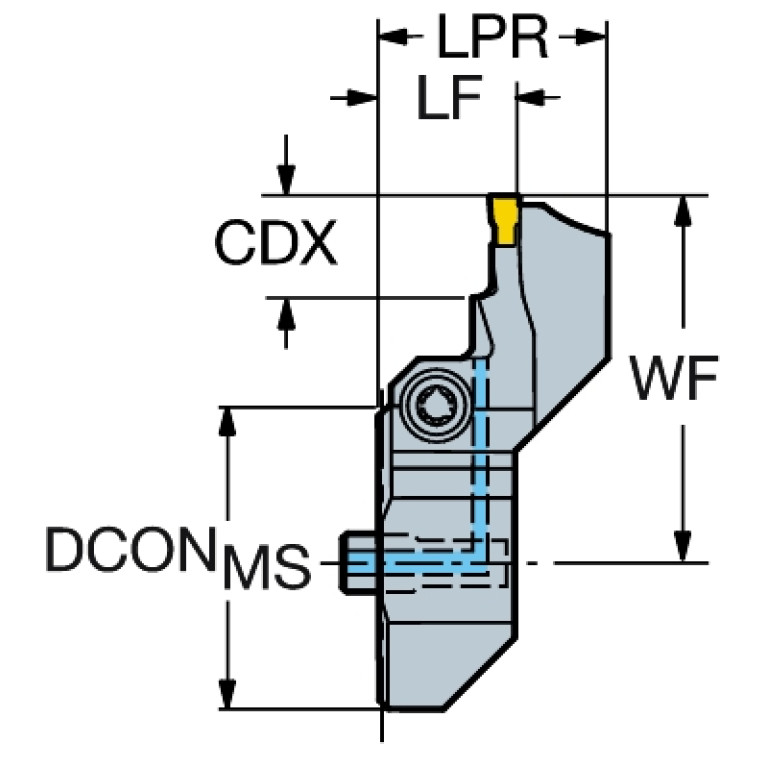

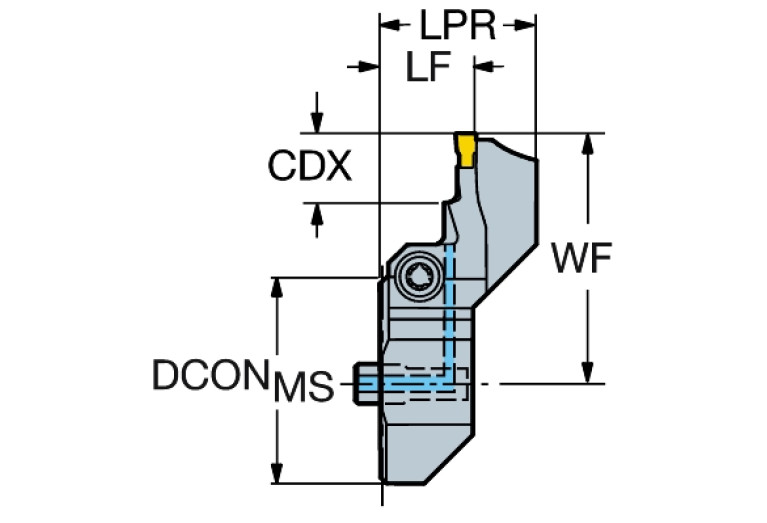

AXGSUP (Axial groove support direction)

BI (Block index)

C1A (Insert thickness Pos. A)

5.287 mm

CDX (Cutting depth maximum)

8.686 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CXSC (Coolant exit style code)

2 - With Coolant exit, radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

2 - With Coolant exit, radial

DAXN (Axial groove od min)

32 mm

DAXX (Axial groove od max)

50 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CMS03200197

DIN CSW1

SV-CB30330F

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CMS01C0320$$$$

ISO CSW1

SV$$CB3033$$***$F$$

KAPR (Tool cutting edge angle)

90 Degree

L (Cutting edge length)

4 mm

LAMS (Inclination angle)

0 Degree

LF (Functional length)

12 mm

LOC-01 ISO

SV$$CB3033$$***$F$$

LOC-01 (BI Block index)

LOC-01 (L Cutting edge length)

4 mm

LOC-01 (MIID Master insert identification)

N151.3-400-30-7G

LOC-01-Connection-codes

J41 / J441 - Interface code position A (cutting edge) (Unknown 01)

LOC-01-DIN

SV-CB30330F

LOC-03 ISO

CMS01C0320$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0320

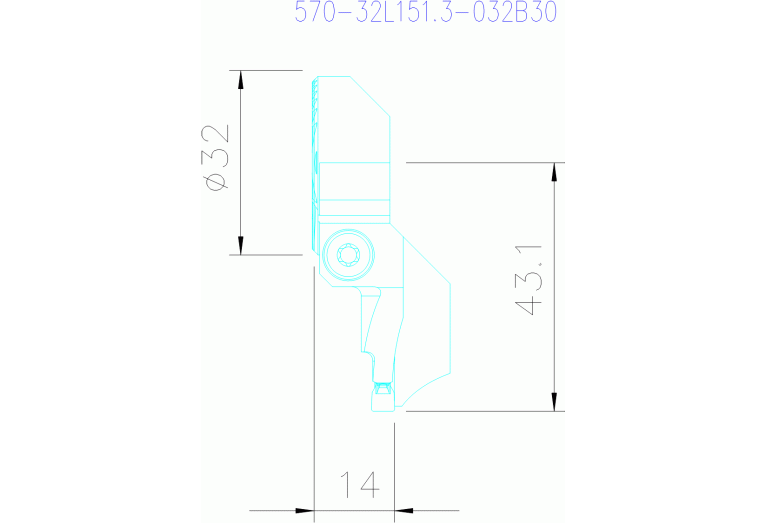

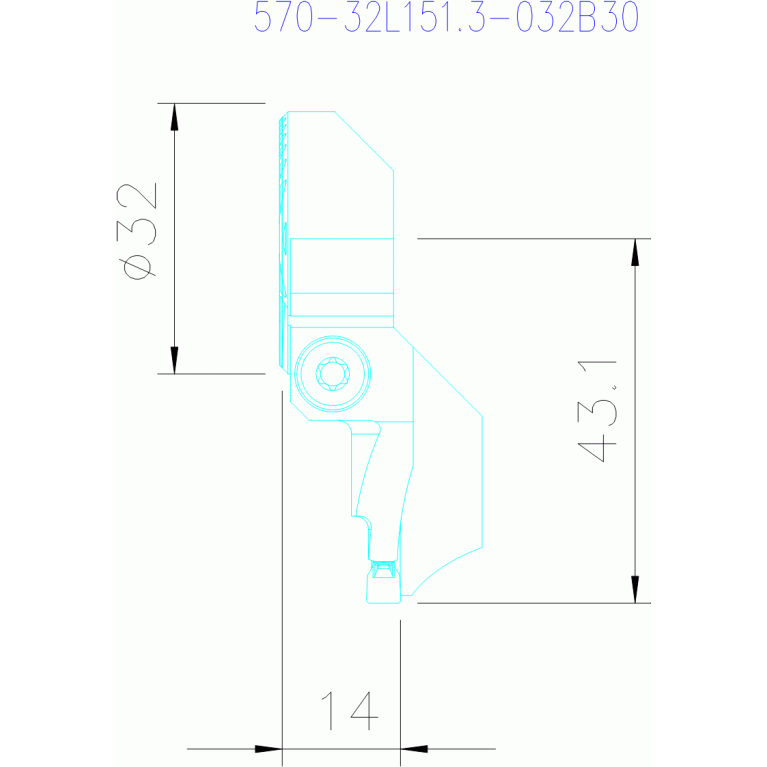

LOC-03 (DCONMS Diameter)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS03200197

LPR (Protruding length)

23.7 mm

LTA (Length tool assembly)

12 mm

MIID (Master insert identification)

N151.3-400-30-7G

OAL (Overall length)

27.5 mm

WF (Functional width)

43.1 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DEI - Grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.143 kg
