TLER-163C
TLER-163C
Артикул:
5752975
В наличии
0 ₽
Характеристики
BI (Block index)
1

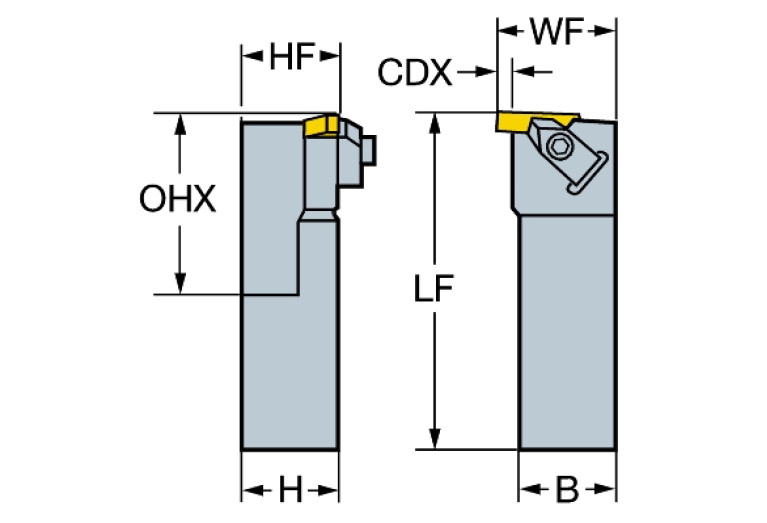

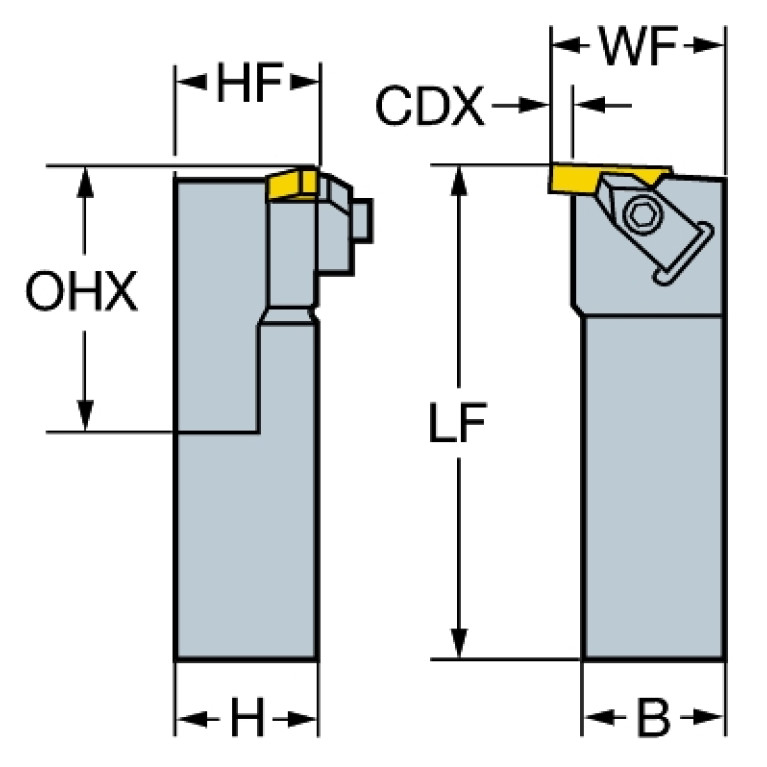

CDX (Cutting depth maximum)
4.572 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
0 - Without coolant entry
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
VKT16160125
DIN CSW1
SV-CL30L000
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01B1616$$$$
ISO CSW1
SV$$CL3$L$$$*L*$$$$
LAMS (Inclination angle)
0 Degree
LF (Functional length)
127 mm
LH (Head length)
50.8 mm
LOC-03 ISO
VKT01B1616$$$$
LOC-03 (B Shank width)
25.4 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1616
LOC-03 (H Shank height)
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160125
MIID (Master insert identification)
TLG-3189L
OAL (Overall length)
127 mm
SX (Shank cross section shape code)
01 - Square shank
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
31.75 mm
Working process
DAA - Parting,DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.64 kg
