Главная Инструменты 309-04 - Turning tool for OD grooving and parting SMALR 1010K 3

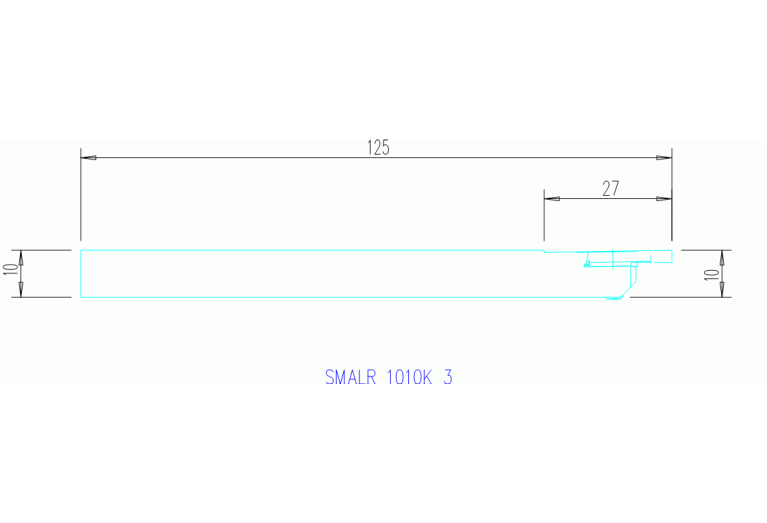

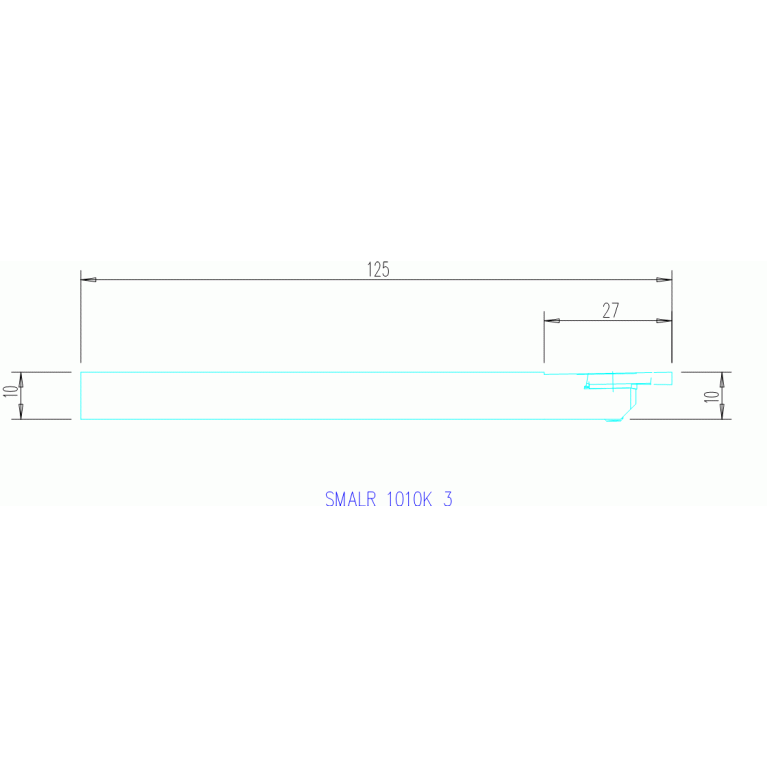

SMALR 1010K 3

Артикул: 5750049

В наличии

0 ₽

В корзину

Описание

Характеристики

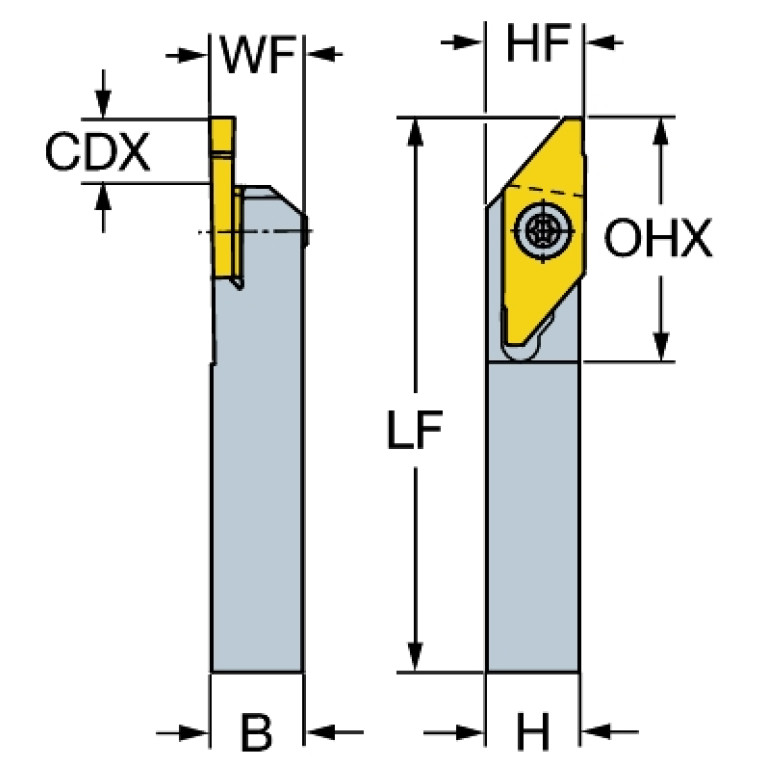

BI (Block index)

CDX (Cutting depth maximum)

8.5 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

VKT10100105

DIN CSW1

SV-CE03R000

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

10 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A1010$$$$

ISO CSW1

SV$$CE03R$$$3**$$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

125 mm

LH (Head length)

27 mm

LOC-03 ISO

VKT01A1010$$$$

LOC-03 (B Shank width)

10 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

1010

LOC-03 (H Shank height)

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

MIID (Master insert identification)

MACR3200-N

OAL (Overall length)

125 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

G - straight shank design

WF (Functional width)

10 mm

Working process

DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving

WT (Weight of item)

0.1 kg
