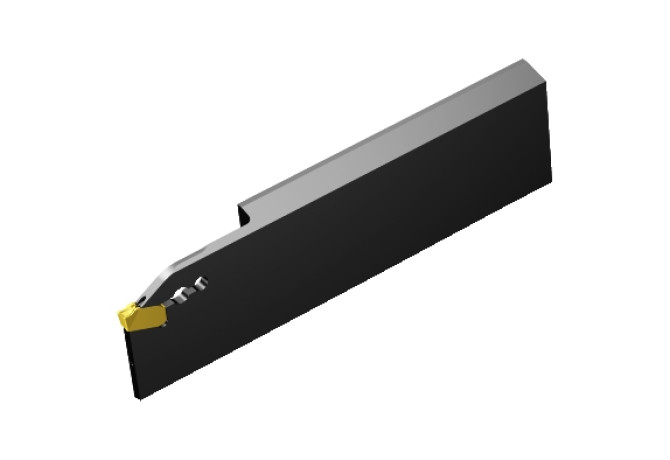

QD-LR1F33C25A
QD-LR1F33C25A
Артикул:
6605253
В наличии
0 ₽
Характеристики
BI (Block index)
1

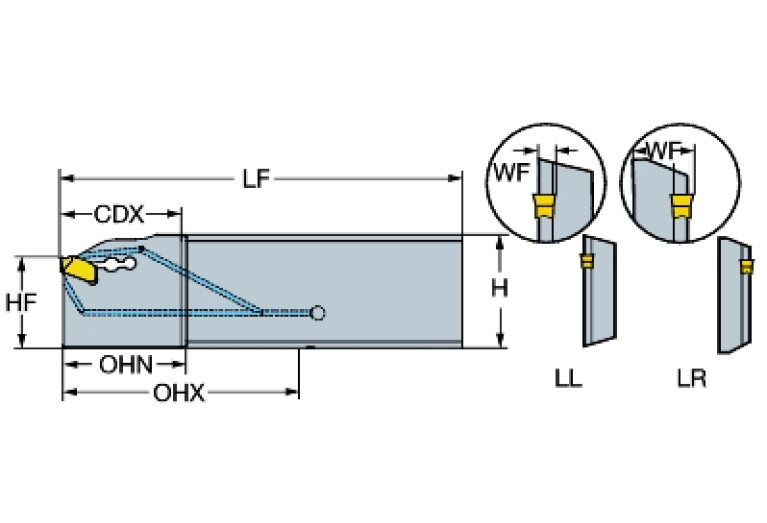

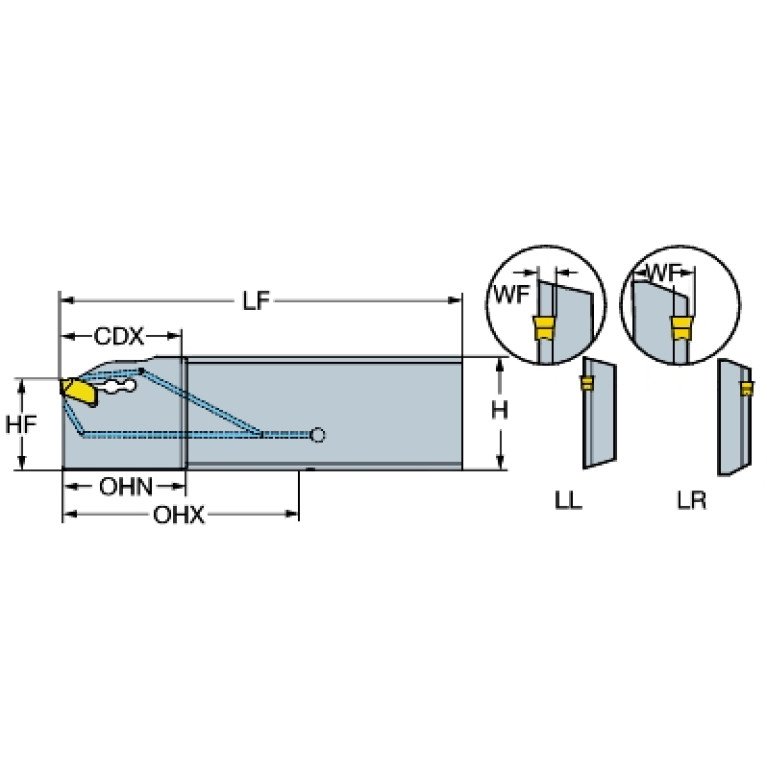

CDX (Cutting depth maximum)
33 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
2 - With Coolant entry, radial
CW (Cutting width)
2.5 mm
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
PMC025R0195
DIN CSW1
SV-CM**E010
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
25 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
PMC01C025R$$$$
ISO CSW1
SV$$CM**E$20***1$25
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree

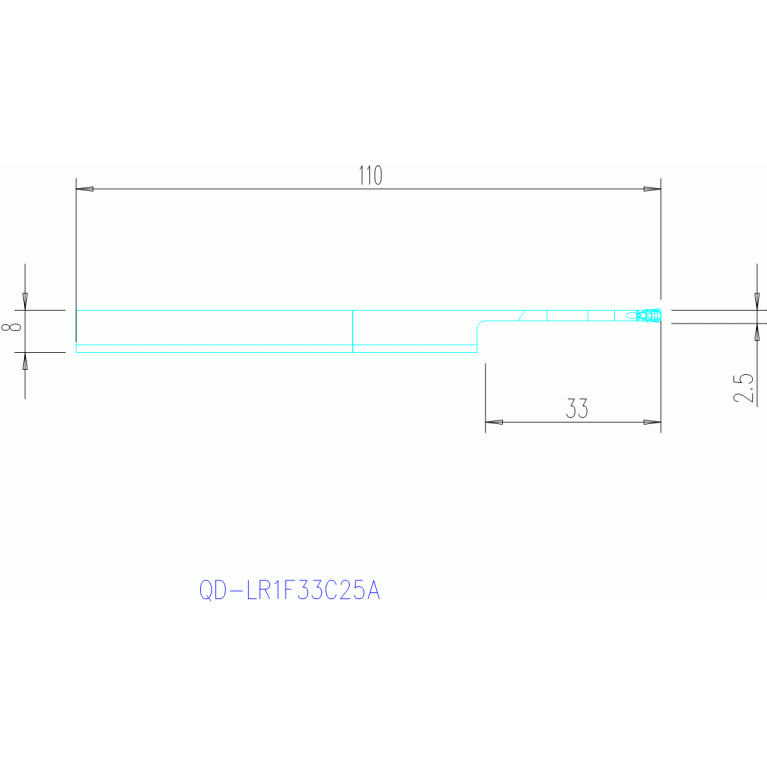

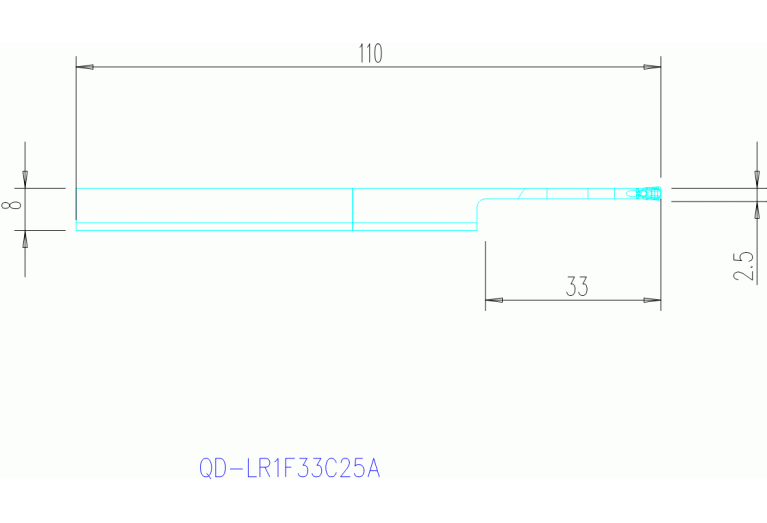

LF (Functional length)
110 mm
LH (Head length)
50 mm
LOC-03 ISO
PMC01C025R$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
PMC Prism mounting SANDVIK Coromant
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
025R
LOC-03 (H Shank height)
31.9 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
PMC025R0195
MIID (Master insert identification)
QD-NF-0250-0002-CM
OAL (Overall length)
110 mm
WF (Functional width)
7 mm
Working process
DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving
WT (Weight of item)
0.152 kg
