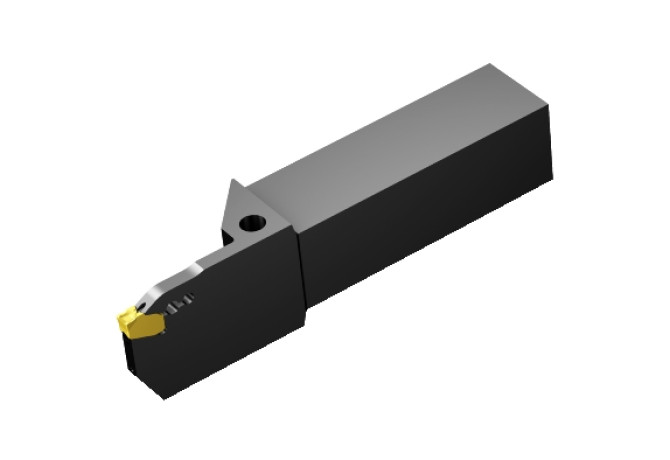

Главная Инструменты 309-04 - Turning tool for OD grooving and parting QD-LFH33C3232A

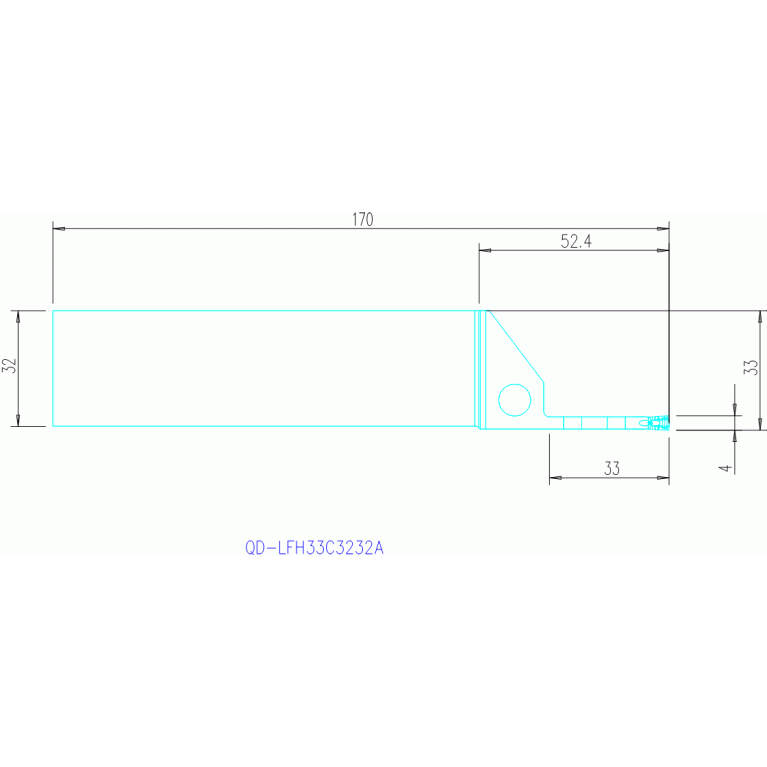

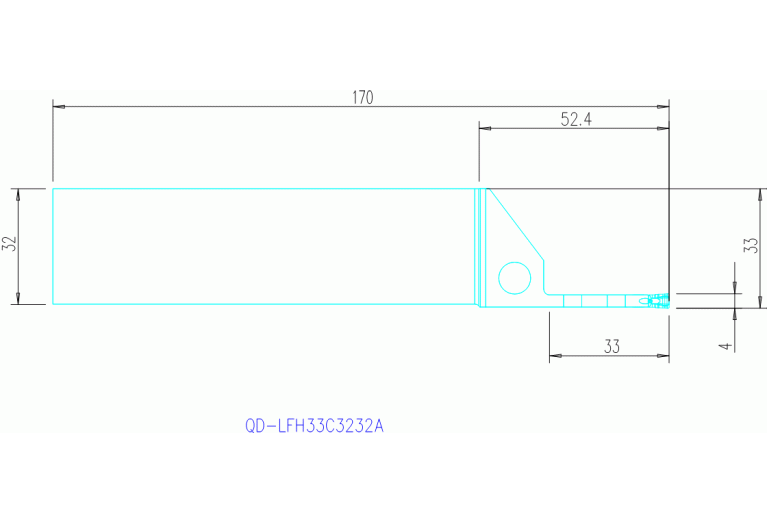

QD-LFH33C3232A

Артикул: 6427590

В наличии

0 ₽

В корзину

Описание

Характеристики

BI (Block index)

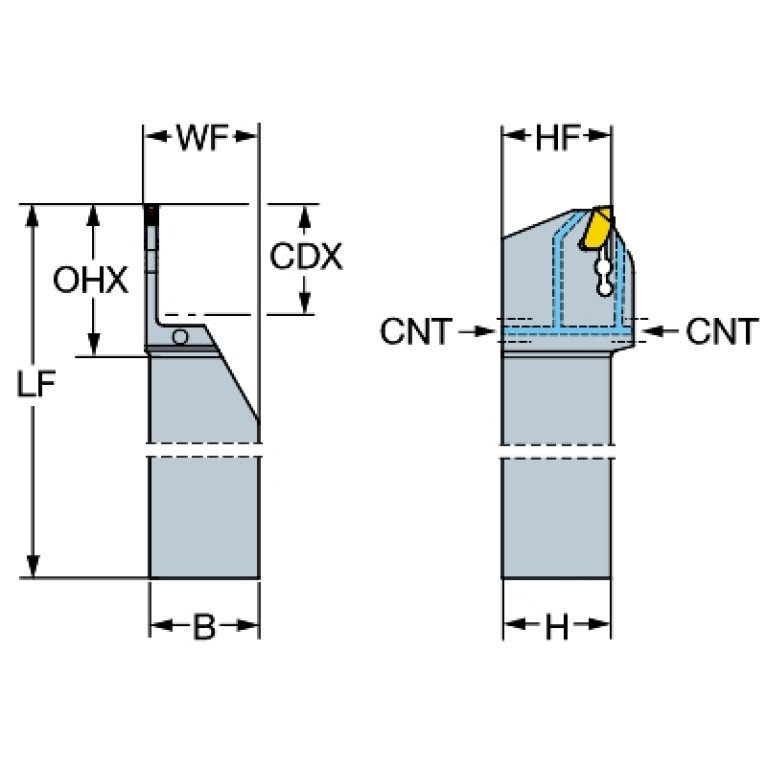

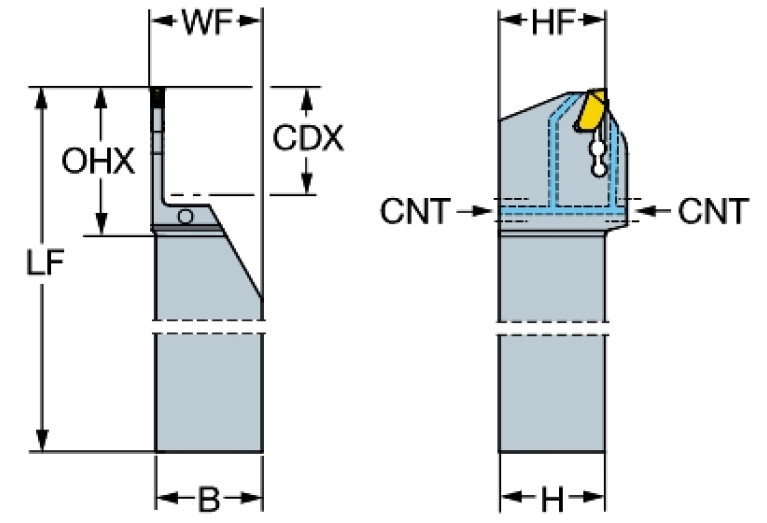

CDX (Cutting depth maximum)

33 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CW (Cutting width)

4 mm

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

VKT32320115

DIN CSW1

SV-CM**H010

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

32 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A3232$$$$

ISO CSW1

SV$$CM**H$34***1$34

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

170 mm

LH (Head length)

55 mm

LOC-03 ISO

VKT01A3232$$$$

LOC-03 (B Shank width)

32 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

3232

LOC-03 (H Shank height)

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320115

MIID (Master insert identification)

QD-NH-0400-0002-CM

OAL (Overall length)

170 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

G - straight shank design

WF (Functional width)

31 mm

Working process

DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving

WT (Weight of item)

1.076 kg
