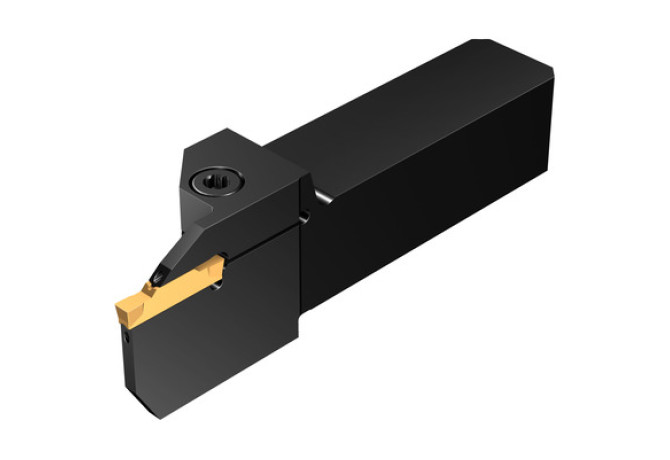

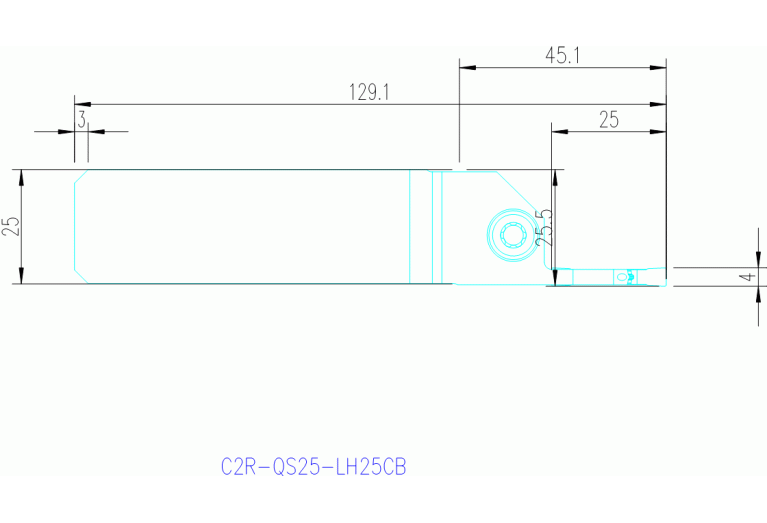

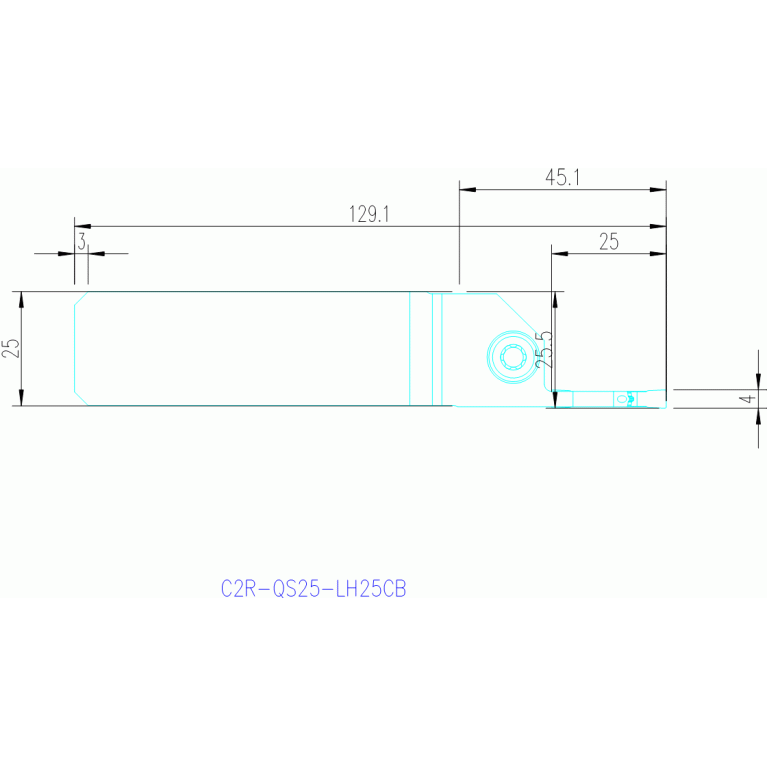

C2R-QS25-LH25CB
C2R-QS25-LH25CB
Артикул:
8196215
В наличии
0 ₽

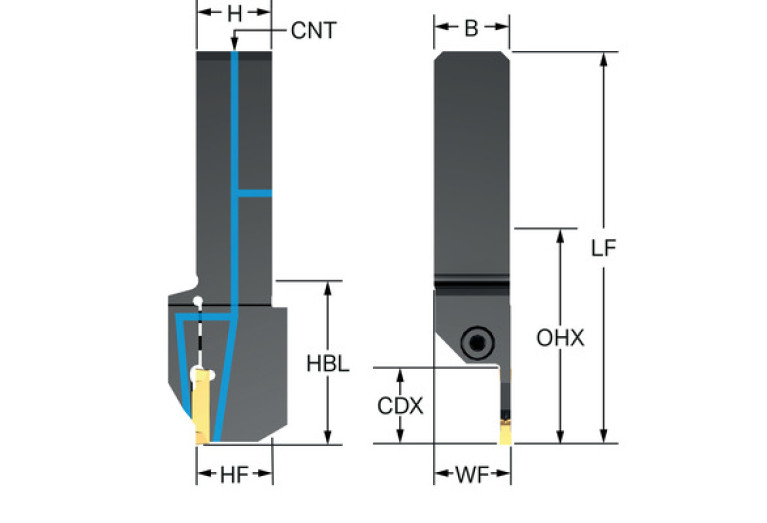

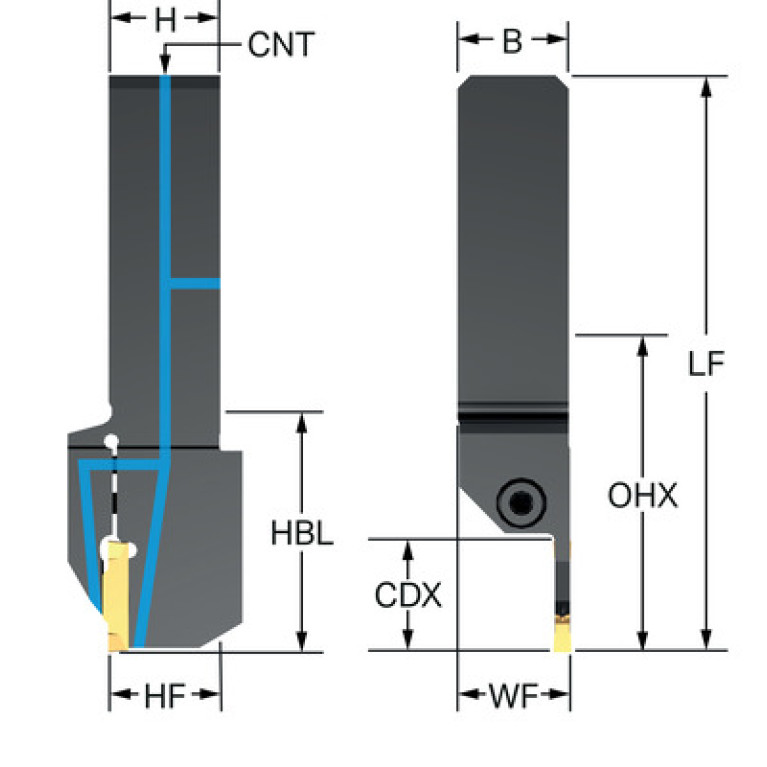

Характеристики
BI (Block index)
1
CDX (Cutting depth maximum)
25 mm
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CW (Cutting width)
4 mm
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
VKT25250115
DIN CSW1
SV-CCH*H**0
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
25 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
VKT01A2525$$$$
ISO CSW1
SV$$CCH*H*$$9***$$$
KAPR (Tool cutting edge angle)
90 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
129.108 mm
LH (Head length)
70.61 mm
LOC-03 ISO
VKT01A2525$$$$
LOC-03 (B Shank width)
25 mm
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
VKT Square mounting
LOC-03 (CCUMS Connection code unit base)
1 Metric with coolant
LOC-03 (CZCMS Connection size code)
2525
LOC-03 (H Shank height)
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250115
MIID (Master insert identification)
C2I-H2N-0400-
OAL (Overall length)
129.108 mm
SX (Shank cross section shape code)
01 - Square shank
THSC (Tool holder shape code)
G - straight shank design
WF (Functional width)
23.5 mm
Working process
DAA - Parting,DEA - Outer diameter grooving,DFA - External form turning,DPA - Profiling external,DSS - Face grooving
WT (Weight of item)
0.498 kg
