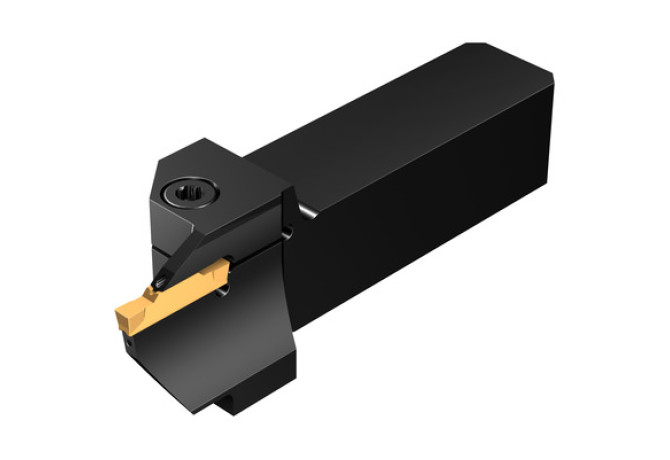

Главная Инструменты 309-04 - Turning tool for OD grooving and parting C2A-QS25-RFK18B-058CB

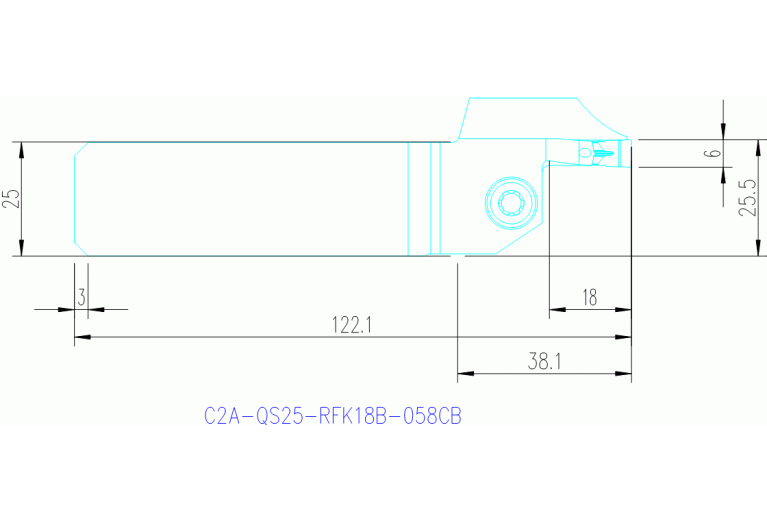

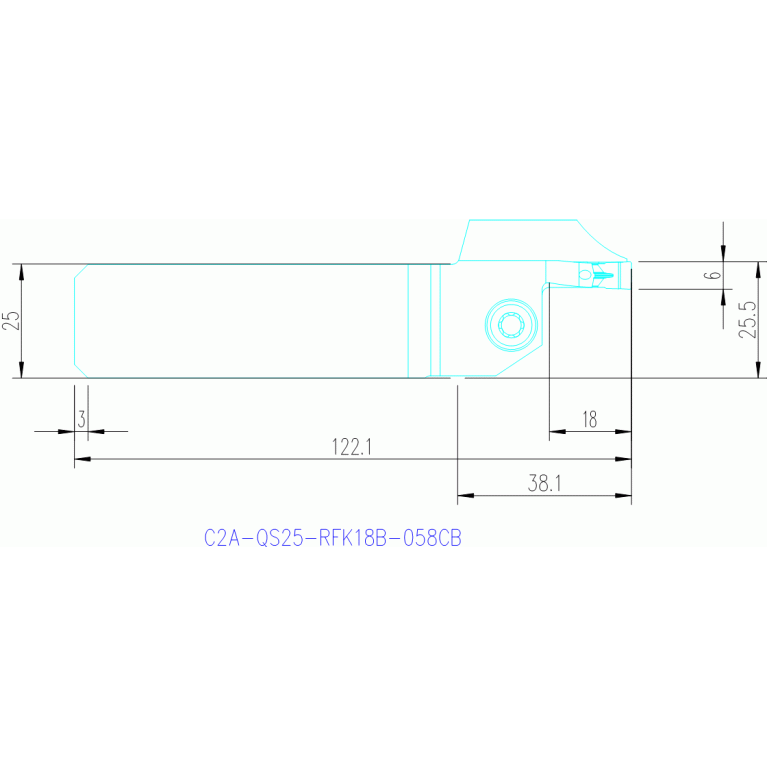

C2A-QS25-RFK18B-058CB

Артикул: 8273671

В наличии

0 ₽

В корзину

Описание

Характеристики

AXGSUP (Axial groove support direction)

BI (Block index)

CDX (Cutting depth maximum)

18 mm

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CW (Cutting width)

6 mm

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DAXN (Axial groove od min)

70 mm

DAXX (Axial groove od max)

100 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DIN

VKT25250115

DIN CSW1

SV-CCK0H0*0

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

R - Right

HF (Functional height)

25 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

VKT01A2525$$$$

ISO CSW1

SV$$CCK$H$$$9***$$$

KAPR (Tool cutting edge angle)

90 Degree

LAMS (Inclination angle)

0.3 Degree

LF (Functional length)

119.1 mm

LH (Head length)

63.608 mm

LOC-03 ISO

VKT01A2525$$$$

LOC-03 (B Shank width)

25 mm

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

VKT Square mounting

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

2525

LOC-03 (H Shank height)

25 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT25250115

MIID (Master insert identification)

C2I-K2N-0600-

OAL (Overall length)

122.1 mm

SX (Shank cross section shape code)

01 - Square shank

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

25.5 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DEA - Outer diameter grooving,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal,DSS - Face grooving

WT (Weight of item)

0.511 kg
