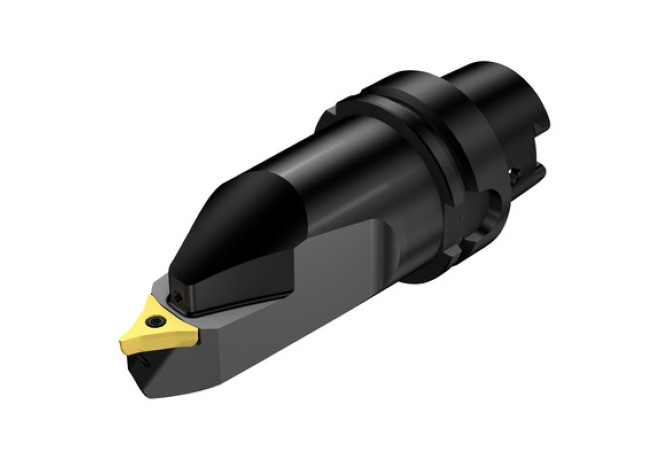

Главная Инструменты 309-07 - System tool for external turning HT06-CP75AL00130-11C

HT06-CP75AL00130-11C

Артикул: 8247097

В наличии

0 ₽

В корзину

Описание

Характеристики

B3A (Inscribed circle diameter Pos. A)

11 mm

BI (Block index)

C1A (Insert thickness Pos. A)

6 mm

CEATC (Tool cutting edge angle type code)

S - Side lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

3 - With Coolant entry, axial concentric and radial

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

D1A (Corner radius Pos. A)

0.794 mm

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

HSK06300795

DIN CSW1

SV-TK110600

EPSR (Insert included angle)

35 Degree

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

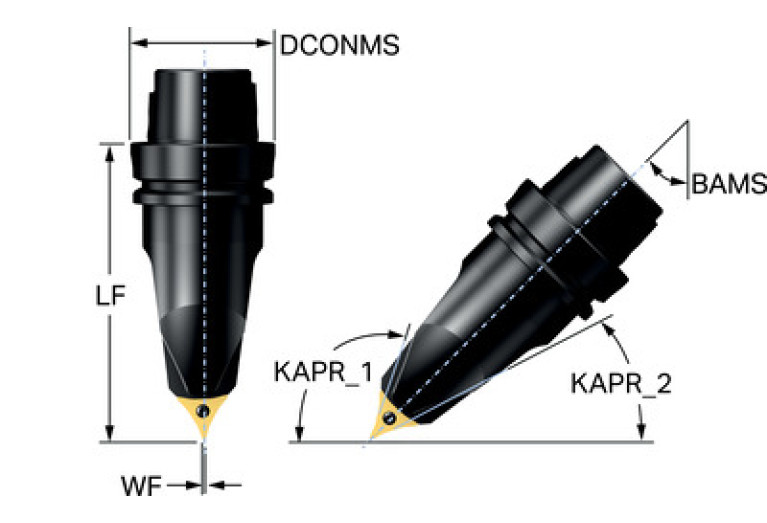

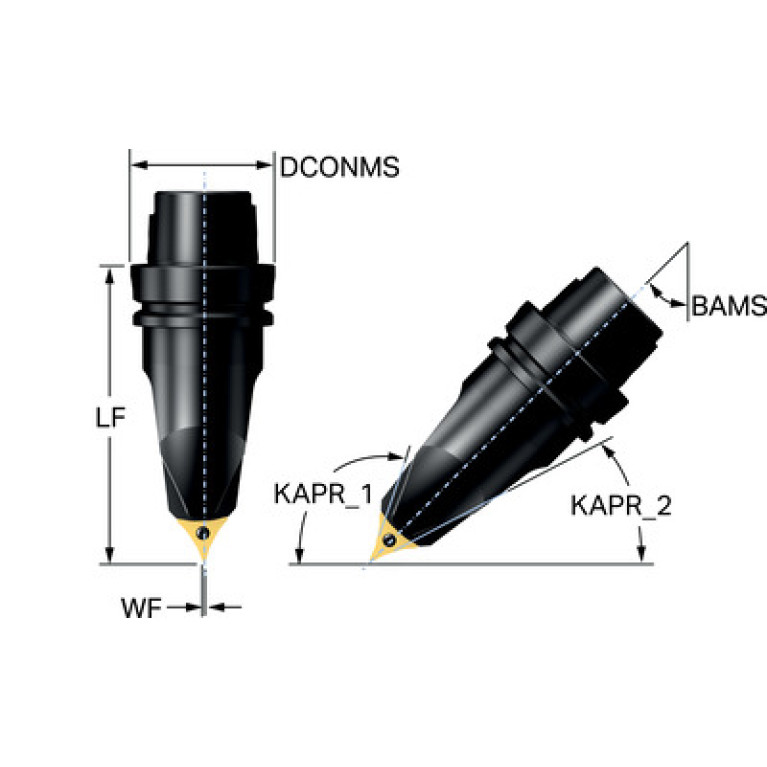

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

HSK07C0630$$$$

ISO CSW1

SV$$TK1106003**$$**

KAPR (Tool cutting edge angle)

30 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

130 mm

LOC-03 ISO

HSK07C0630$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

HSK Hollow taper shank

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

HSK06300795

LPR (Protruding length)

130 mm

LTA (Length tool assembly)

130 mm

MIID (Master insert identification)

CP-A1108

OAL (Overall length)

162 mm

WF (Functional width)

0 mm

Working process

DFA - External form turning,DPA - Profiling external

WT (Weight of item)

1.8 kg
