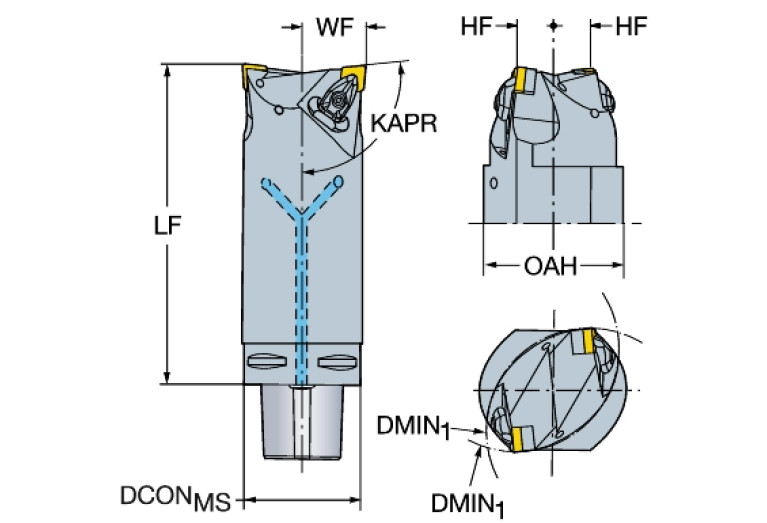

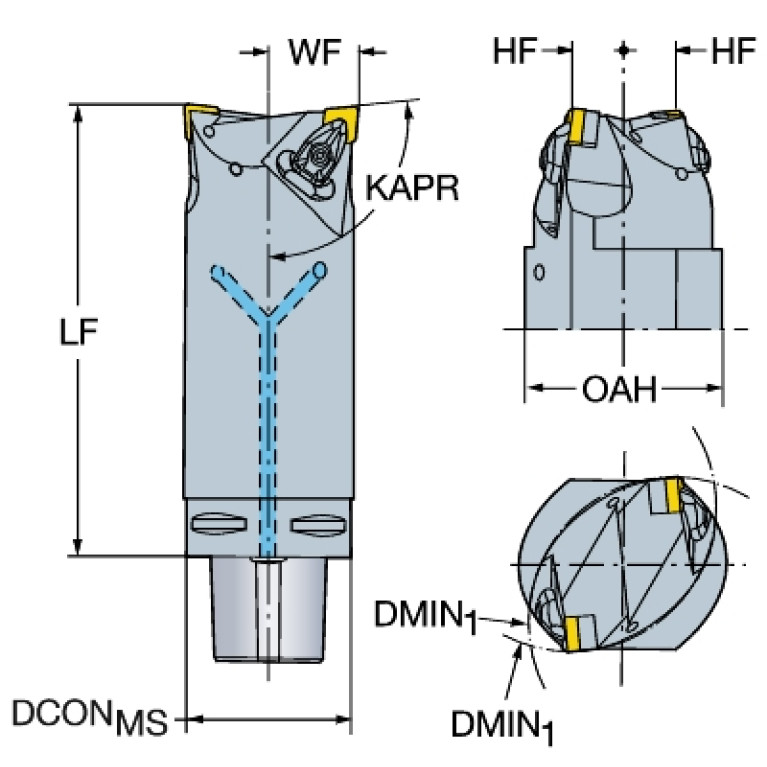

C6-T-DCL12DCL12L165
C6-T-DCL12DCL12L165
Артикул:
5729022
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
0 Degree
B3A (Inscribed circle diameter Pos. A)
12.7 mm
BI (Block index)
1
BLDA (Tool style code Position A)
3
C1A (Insert thickness Pos. A)
4.762 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
3 - With Coolant exit, axial and radial
CXSC (Coolant exit style code) / Тип подвода СОЖ
3 - With Coolant exit, axial and radial
D1A (Corner radius Pos. A)
0.794 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
CCS06300195
DIN CSW1
CN1204992N
EPSR (Insert included angle)
80 Degree
GAMO (Rake angle orthogonal)
-5.45 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
20 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
CCS01C0630$$$$
ISO CSW1
ISO$CN1204002******
KAPR (Tool cutting edge angle)
95 Degree
LAMS (Inclination angle)
-6.58 Degree
LF (Functional length)
165 mm
LOC-03 ISO
CCS01C0630$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0630
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS06300195
LPR (Protruding length)
165 mm
LTA (Length tool assembly)
165 mm
MIID (Master insert identification)
CNMG120408
OAL (Overall length)
203 mm
WF (Functional width)
33 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
4.563 kg
