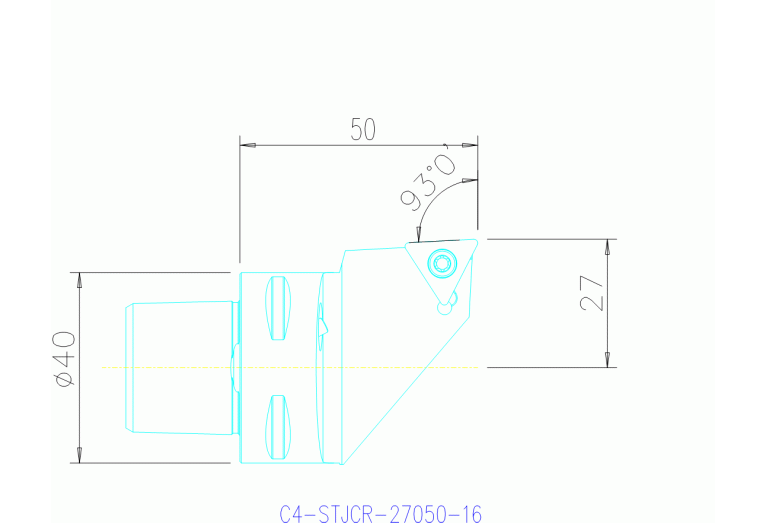

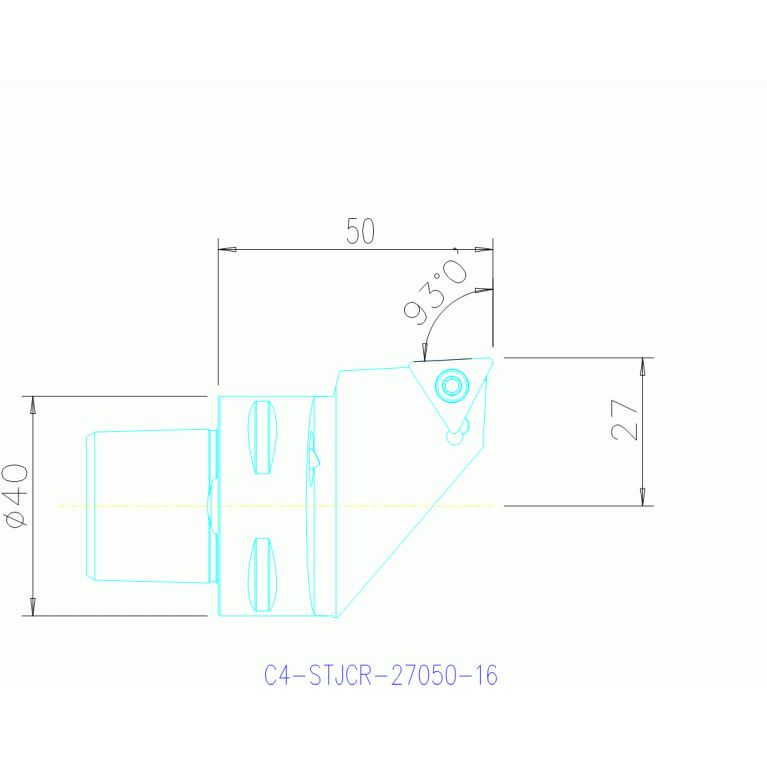

C4-STJCR-27050-16
C4-STJCR-27050-16
Артикул:
5728318
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
9.525 mm
BI (Block index)
1
BLDA (Tool style code Position A)
1
C1A (Insert thickness Pos. A)
3.96875 mm
CEATC (Tool cutting edge angle type code)
S - Side lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
6 - With coolant supply (discharge), peripheral/decentralized adjustable
CXSC (Coolant exit style code) / Тип подвода СОЖ
6 - With coolant supply (discharge), peripheral/decentralized adjustable
D1A (Corner radius Pos. A)
0.79375 mm
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS04000195
DIN CSW1
TC16T3993N
EPSR (Insert included angle)
60 Degree
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
R - Right
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0400$$$$
ISO CSW1
ISO$TC16T3003******

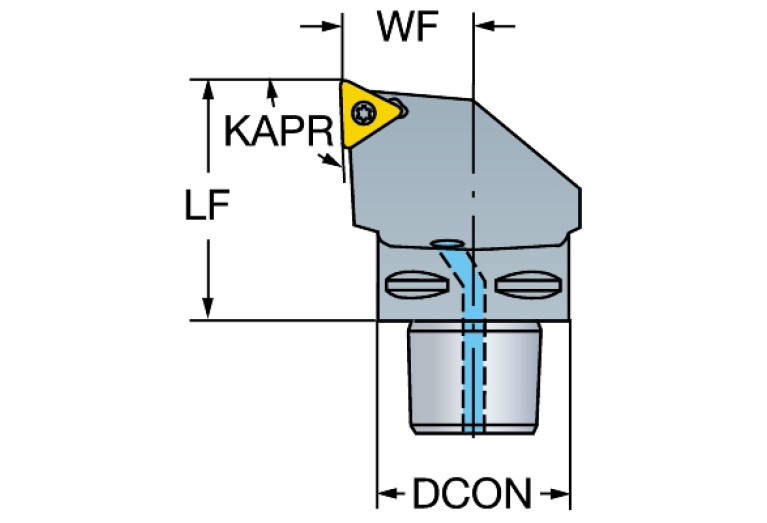

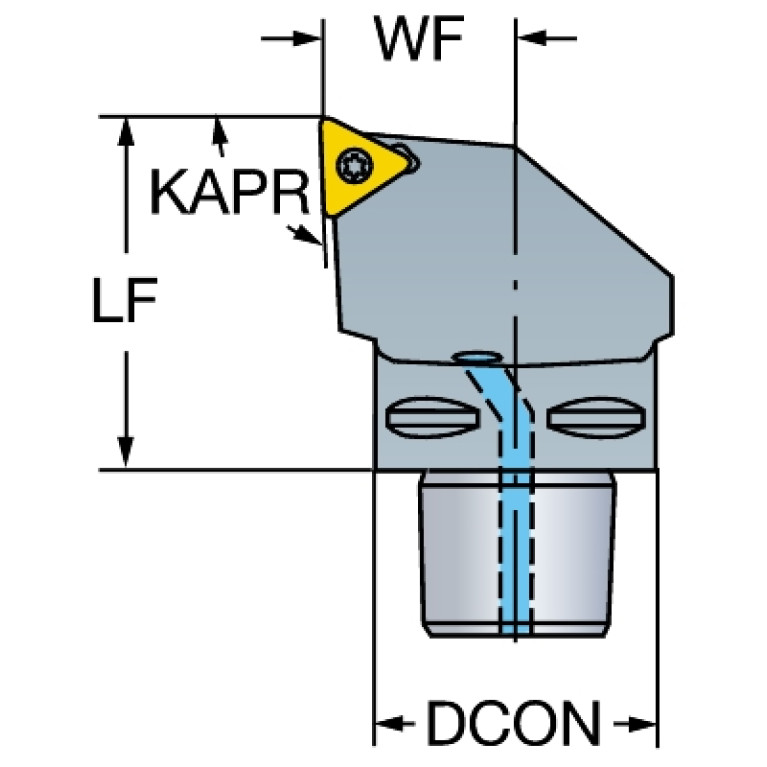

KAPR (Tool cutting edge angle)
93 Degree
LAMS (Inclination angle)
0 Degree
LF (Functional length)
50 mm
LOC-03 ISO
CCS01C0400$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0400
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS04000195
LPR (Protruding length)
50 mm
LTA (Length tool assembly)
50 mm
MIID (Master insert identification)
TCMT16T308
OAL (Overall length)
74 mm
THSC (Tool holder shape code)
A - offset shank design
WF (Functional width)
27 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.462 kg
