Главная Инструменты 309-07 - System tool for external turning C4-SRSCL-27050-12

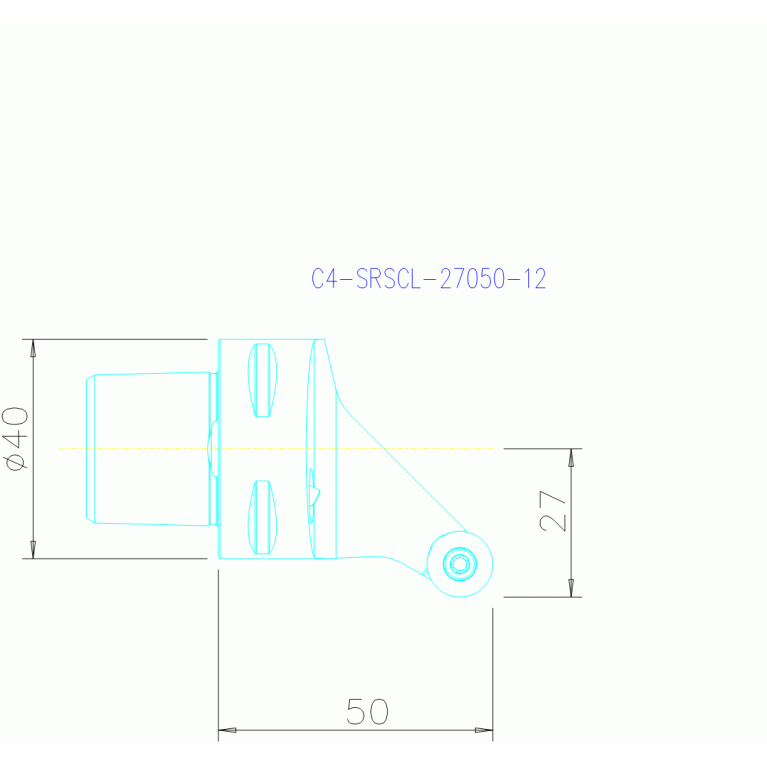

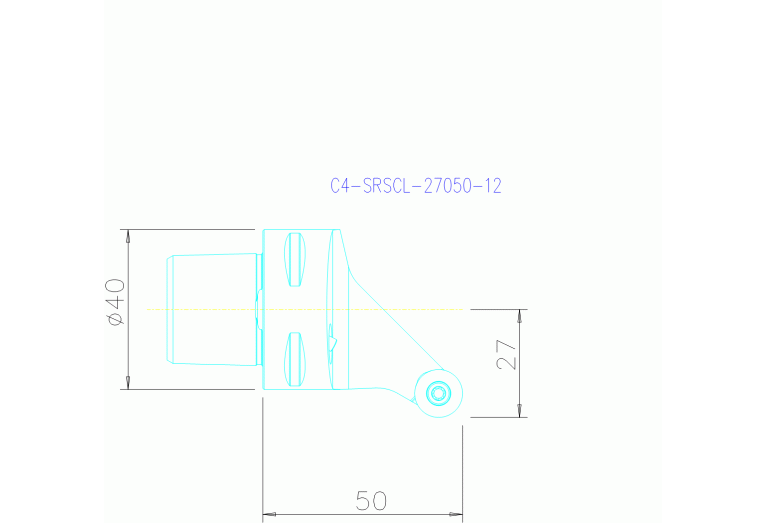

C4-SRSCL-27050-12

Артикул: 5727648

В наличии

0 ₽

В корзину

Описание

Характеристики

A2A (Clearance angle major Pos. A)

7 Degree

B3A (Inscribed circle diameter Pos. A)

12 mm

BI (Block index)

BLDA (Tool style code Position A)

C1A (Insert thickness Pos. A)

4.762 mm

CEATC (Tool cutting edge angle type code)

B - Side and front lead angle

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

2 - With Coolant entry, radial

CXSC (Coolant exit style code)

6 - With coolant supply (discharge), peripheral/decentralized adjustable

CXSC (Coolant exit style code) / Тип подвода СОЖ

6 - With coolant supply (discharge), peripheral/decentralized adjustable

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CCS04000195

DIN CSW1

RC1204M03N

DMIN (Minimum bore diameter)

140 mm

GAMO (Rake angle orthogonal)

0 Degree

HAND (Cutting direction)

L - Left

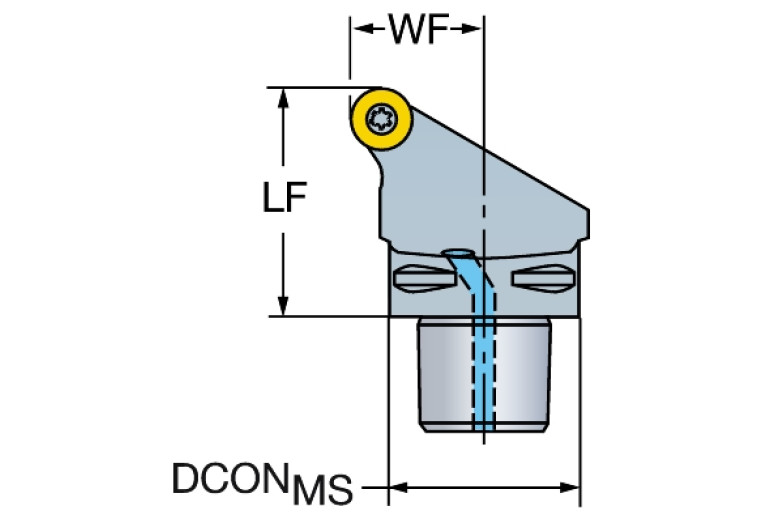

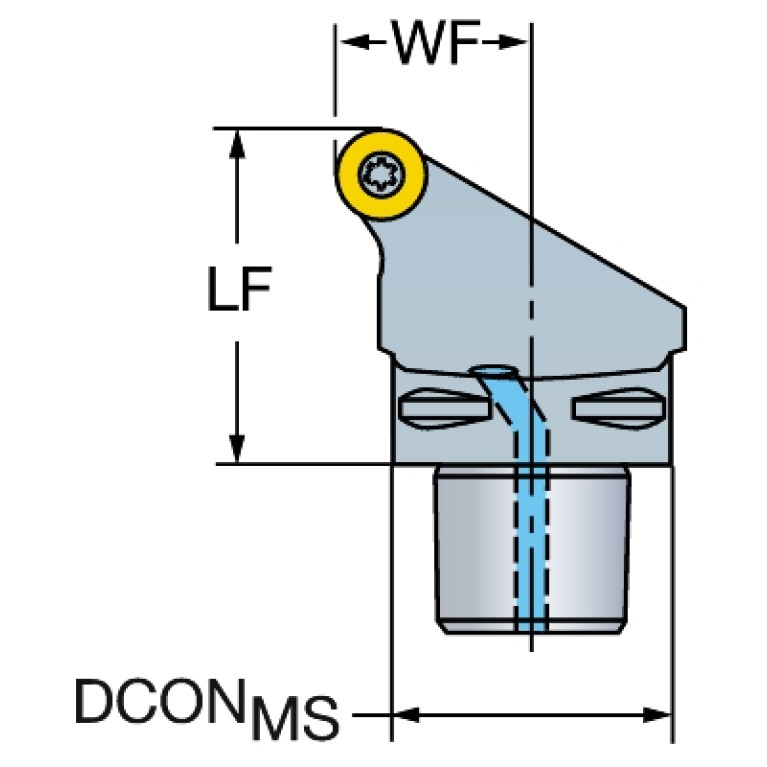

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISISO A (Indicator for ISO cutting plate Pos.A)

ISO

CCS01C0400$$$$

ISO CSW1

ISO$RC1204M03****M0

KAPR (Tool cutting edge angle)

45 Degree

LAMS (Inclination angle)

0 Degree

LF (Functional length)

50 mm

LOC-03 ISO

CCS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CCS Coromant Capto System SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS04000195

LPR (Protruding length)

50 mm

LTA (Length tool assembly)

50 mm

MIID (Master insert identification)

RCMT1204M0

OAL (Overall length)

74 mm

THSC (Tool holder shape code)

A - offset shank design

WF (Functional width)

27 mm

Working process

DDA - External turning,DDB - External and internal turning,DDI - Internal turning,DFA - External form turning,DFI - Internal form turning,DPA - Profiling external,DPI - Profiling internal

WT (Weight of item)

0.306 kg
