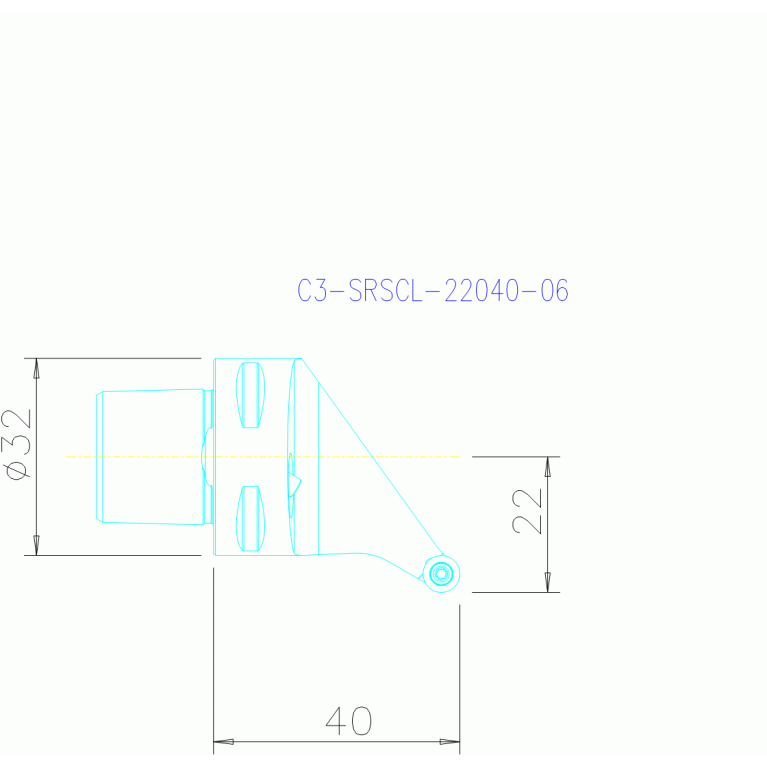

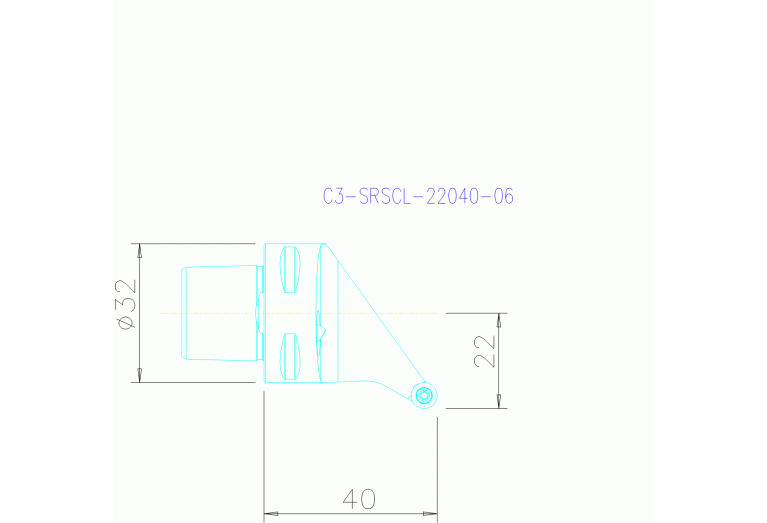

C3-SRSCL-22040-06
C3-SRSCL-22040-06
Артикул:
5726889
В наличии
0 ₽
Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
B3A (Inscribed circle diameter Pos. A)
6 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
C1A (Insert thickness Pos. A)
2.38125 mm
CEATC (Tool cutting edge angle type code)
B - Side and front lead angle
CEDC (Cutting edge count)
1
CNSC (Coolant entry style code)
3 - With Coolant entry, axial concentric and radial
CXSC (Coolant exit style code)
6 - With coolant supply (discharge), peripheral/decentralized adjustable
CXSC (Coolant exit style code) / Тип подвода СОЖ
6 - With coolant supply (discharge), peripheral/decentralized adjustable
DCC (Design configuration style code)
S - Solid steel, no construction features
DCP (Data chip provision)
0 - Without data chip
Delivery state
NL - Discontinued
Delivery state valid from
12/1/2023
DIN
CCS03200195
DIN CSW1
RC0602M03N
GAMO (Rake angle orthogonal)
0 Degree
HAND (Cutting direction)
L - Left
HF (Functional height)
0 mm
Interface codes
J6 / J61
Interface codes CSW1
J41 / J441
ISO
CCS01C0320$$$$
ISO CSW1
ISO$RC0602M03****M0
LAMS (Inclination angle)
0 Degree
LF (Functional length)
40 mm
LOC-03 ISO
CCS01C0320$$$$
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
CCS Coromant Capto System SANDVIK
LOC-03 (CCUMS Connection code unit base)
9 non-dimensional size with coolant
LOC-03 (CZCMS Connection size code)
0320
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
CCS03200195
LPR (Protruding length)
40 mm
LTA (Length tool assembly)
40 mm
MIID (Master insert identification)
RCMT0602M0
OAL (Overall length)
59 mm
THSC (Tool holder shape code)
A - offset shank design

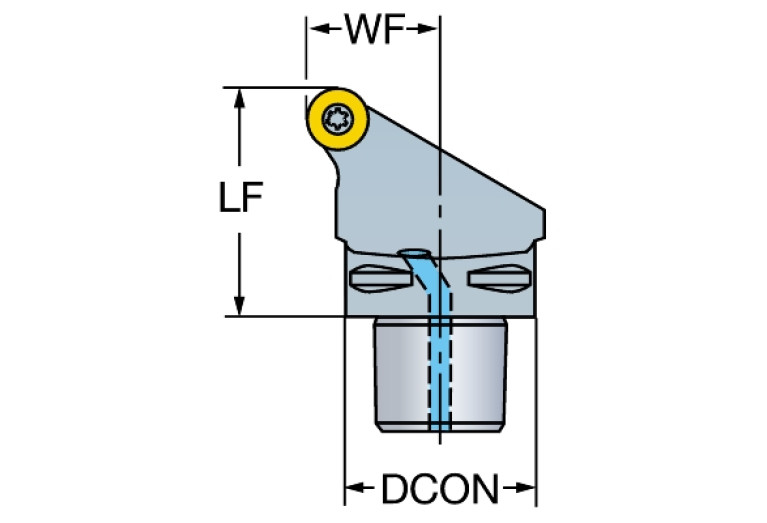

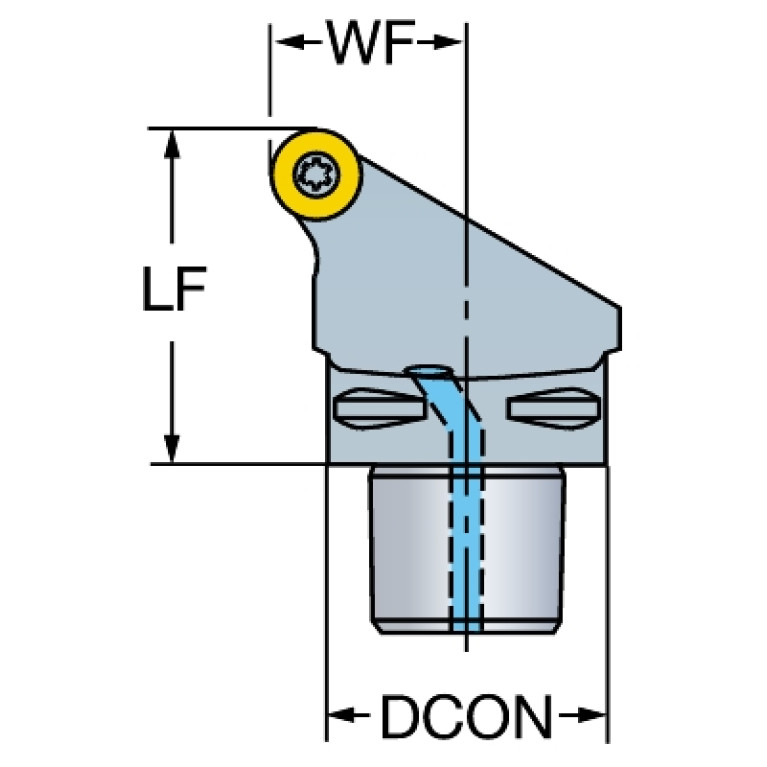

WF (Functional width)
22 mm
Working process
DFA - External form turning,DPA - Profiling external
WT (Weight of item)
0.192 kg
