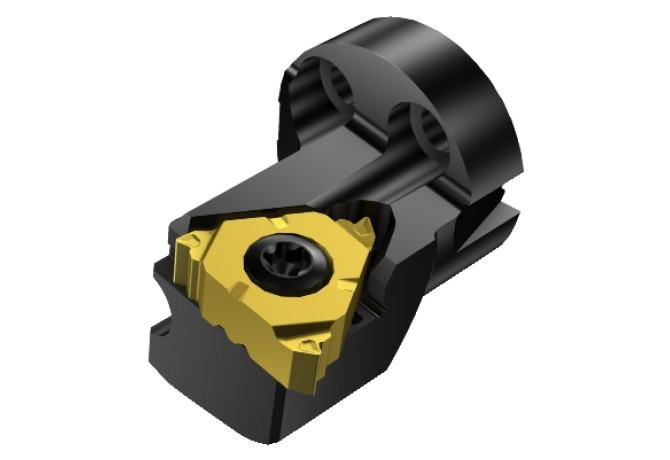

Главная Инструменты 309-08 - System tool for external threading SL-266LFG-252517-16

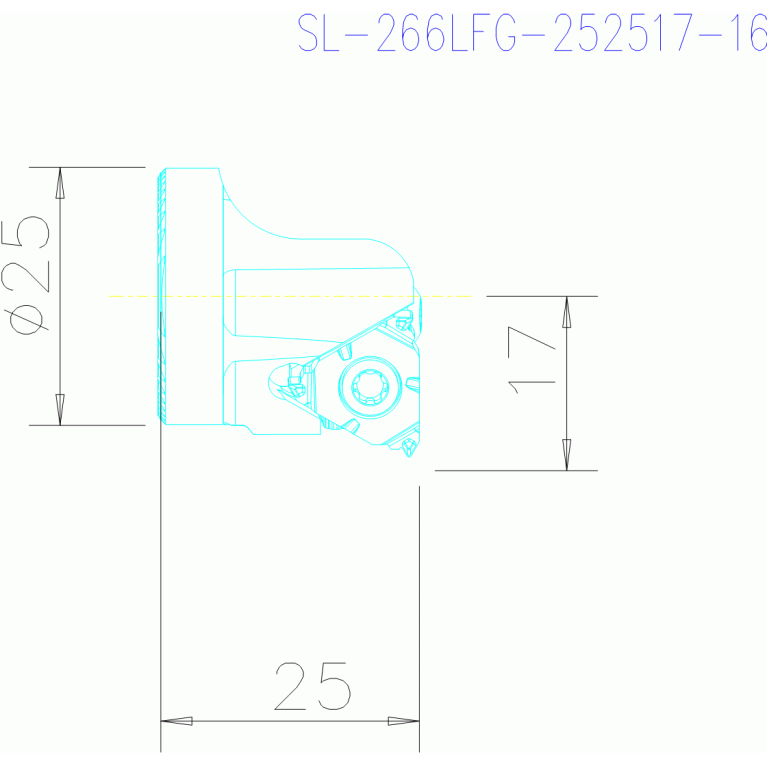

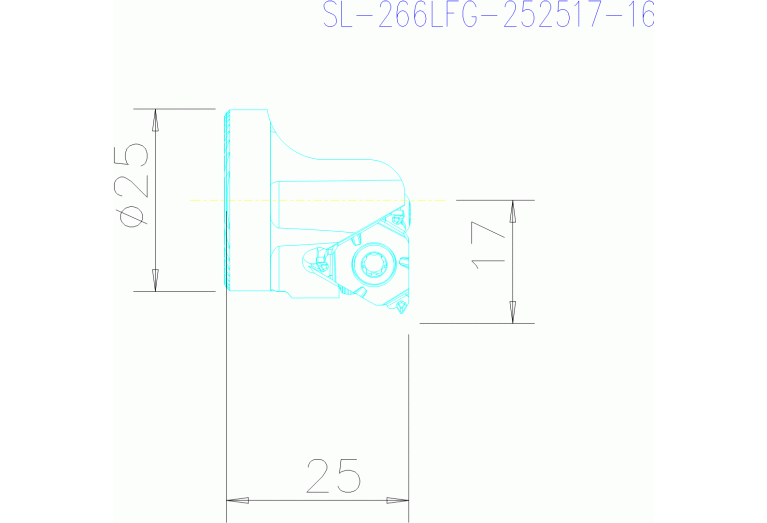

SL-266LFG-252517-16

Артикул: 5750354

В наличии

0 ₽

В корзину

Описание

Характеристики

A1A SKJ (Profilform Schneidkörper Pos.A)

BI (Block index)

BLDA SKJ (Bildkennung Schneidkörper Pos.A)

CEDC (Cutting edge count)

CNSC (Coolant entry style code)

8 - With coolant supply (entry), axial groove at shank

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCC (Design configuration style code)

S - Solid steel, no construction features

DCP (Data chip provision)

0 - Without data chip

Delivery state valid from

12/1/2023

DHD (Drop head design)

0 - Normal

DIN

CMS02500595

DIN CSW1

SV-TC16T3A0

GAMO (Rake angle orthogonal)

-10 Degree

HAND (Cutting direction)

L - Left

HF (Functional height)

0 mm

Interface codes

J6 / J61

Interface codes CSW1

J41 / J441

ISO

CMS05C0250$$$$

ISO CSW1

SV$$TC16T3$$8$*A$$$

LAMS (Inclination angle)

-1 Degree

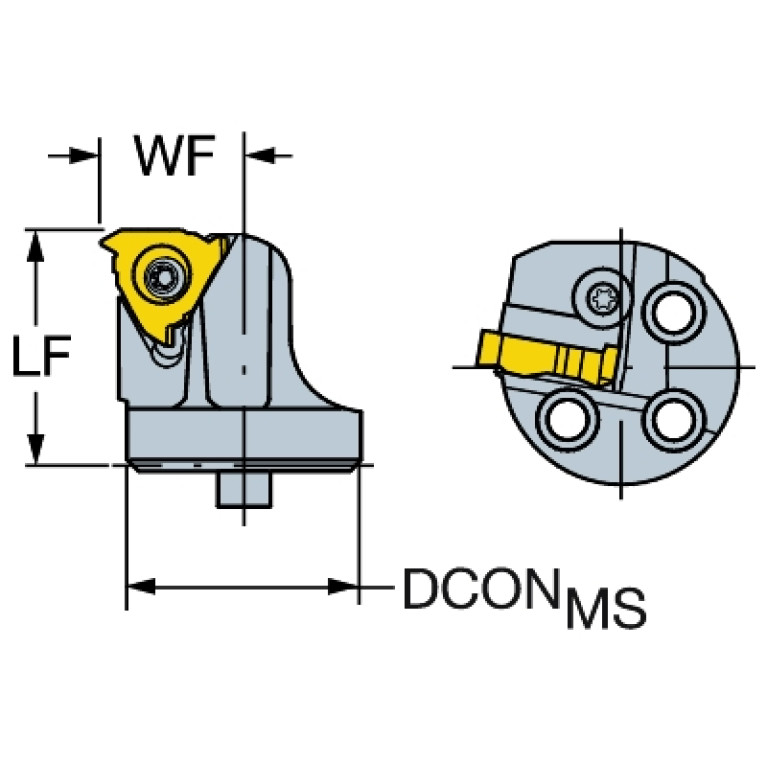

LF (Functional length)

25 mm

LOC-03 ISO

CMS05C0250$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

9 non-dimensional size with coolant

LOC-03 (CZCMS Connection size code)

0250

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS02500595

LPR (Protruding length)

25 mm

LTA (Length tool assembly)

25 mm

MIID (Master insert identification)

266.RG-16..

OAL (Overall length)

28.9 mm

WF (Functional width)

17 mm

Working process

DGA - Thread turning, external,DGI - Thread turning, internal,DSA - External thread chasing,DSI - Internal thread chasing

WT (Weight of item)

0.046 kg
