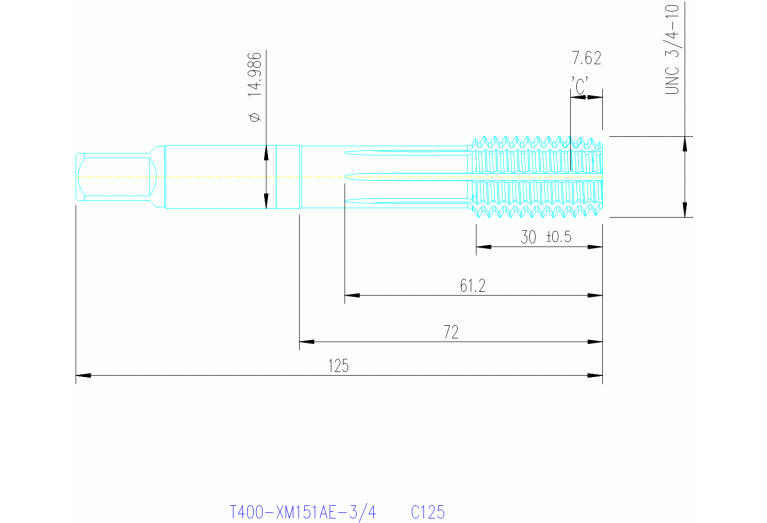

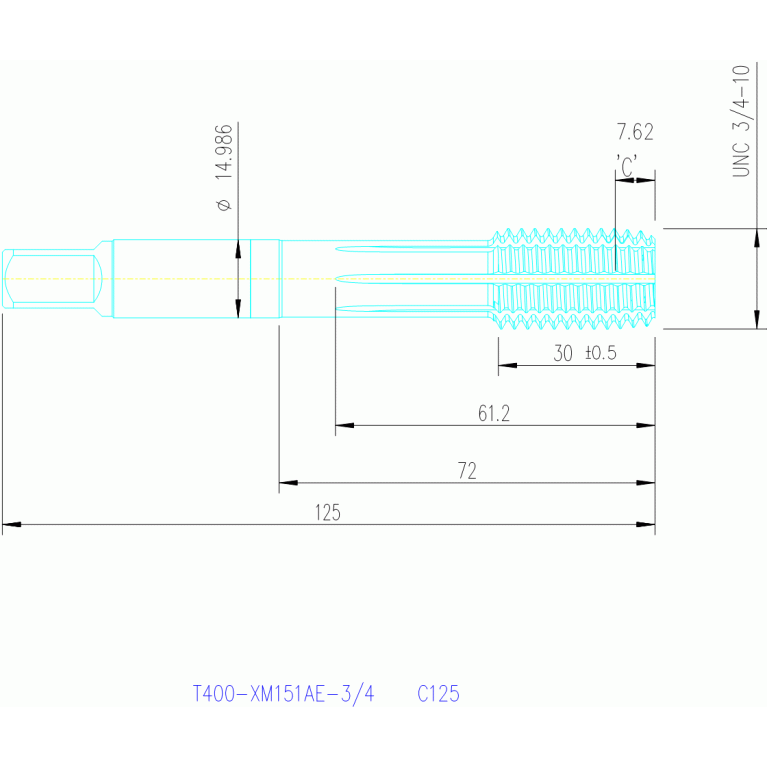

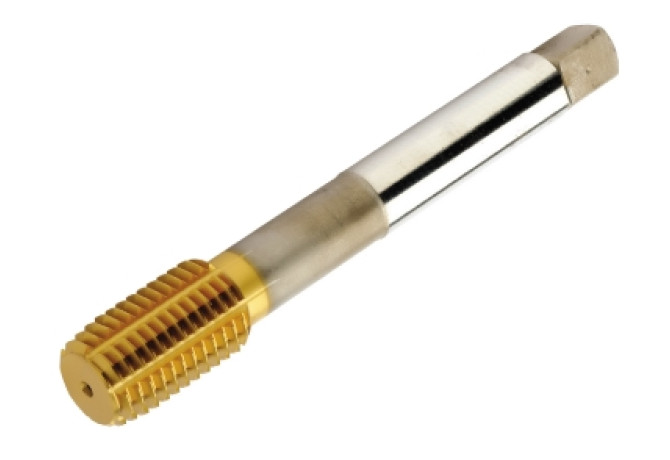

Главная Инструменты 301-03 - Thread forming tap with offset shank T400-XM151AE-3/4 C125

T400-XM151AE-3/4 C125

Артикул: 8248380

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL05902125

DRVS (Drive size)

11.227 mm

GRDMFG (Grade manufacturers designation)

C125

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R5900$$$$

LOC-03 ISO

ZYL21R5900$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0590

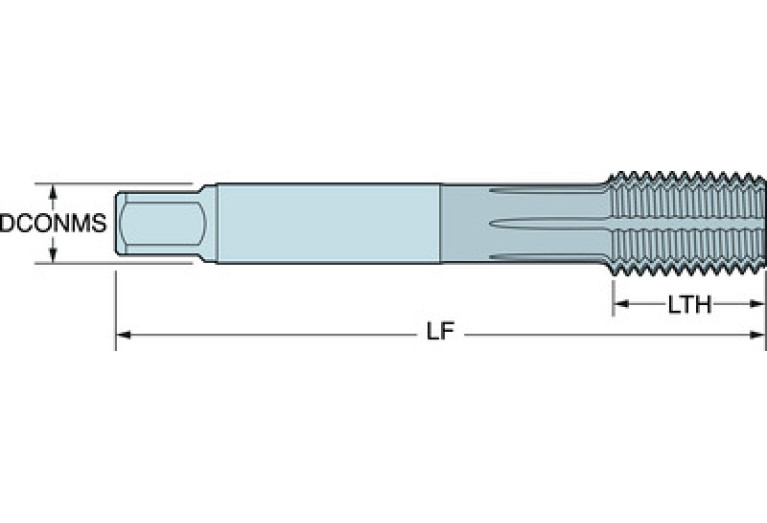

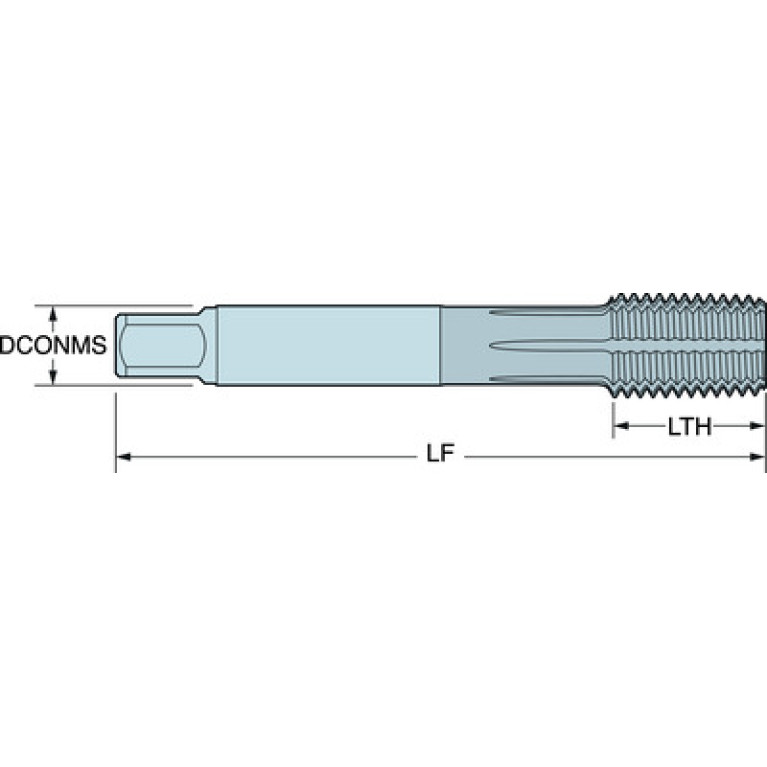

LOC-03 (DCONMS Diameter)

14.986 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05902125

LS (Shank length)

47.463 mm

Materials

P,M,N,S

NOF (Flute count)

OAL (Overall length)

125 mm

PLCD (Gate diameter)

17.9 mm

TCL (Tap chamfer length)

8.853 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

19.05 mm

TDFR (Thread diameter nominal fraction)

3/4 in

THFT (Thread form type)

UNC

THL (Thread cutting part length)

30 mm

THOD (Thread designation)

UNC3/4-10-2B

TPI (Threads per inch)

10 1/in

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.183 kg
