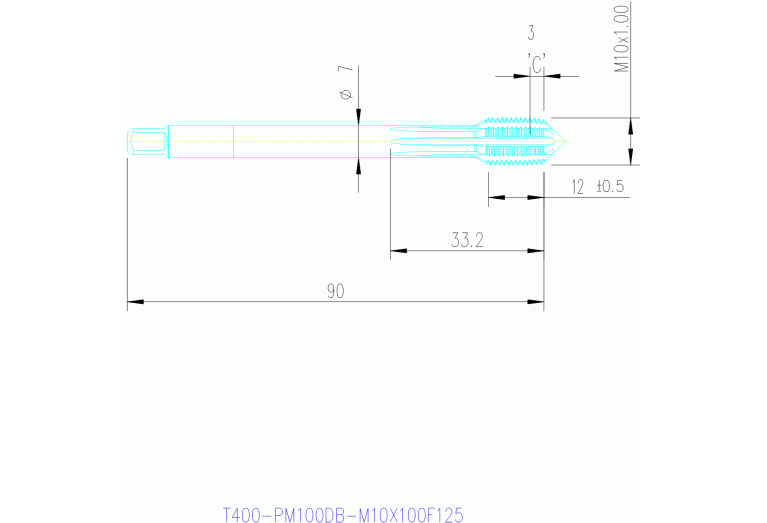

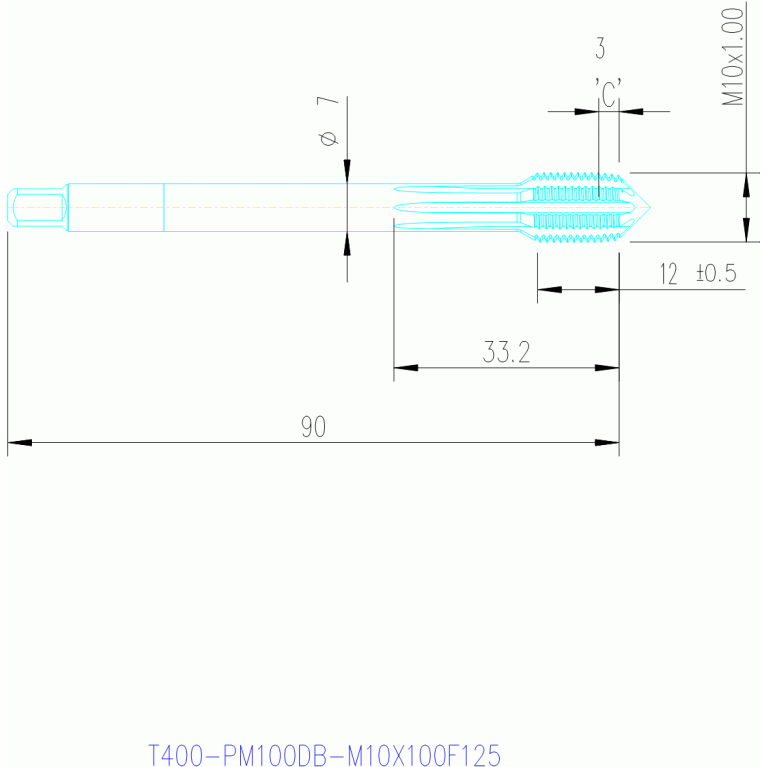

T400-PM100DB-M10X100F125
T400-PM100DB-M10X100F125
Артикул:
7459571
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL00702105
DRVS (Drive size)
5.5 mm
GRDMFG (Grade manufacturers designation)
F125
GRDPRIO (Standard designation of the grade main application)
HSS-E-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21F7000$$$$
LOC-03 ISO
ZYL21F7000$$$$
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0070
LOC-03 (DCONMS Diameter)
7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00702105
LS (Shank length)
23 mm
Materials
P
NOF (Flute count)
7
OAL (Overall length)
90 mm
PLCD (Gate diameter)
9.5 mm
TCL (Tap chamfer length)
1.843 mm
TCTR (Thread tolerance class)
6HX
TD (Thread diameter)
10 mm
THFT (Thread form type)
MF
THL (Thread cutting part length)
12 mm
THOD (Thread designation)
MF10x1-6HX
TP (Thread pitch)
1 mm
Working process
GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole
WT (Weight of item)
0.035 kg
