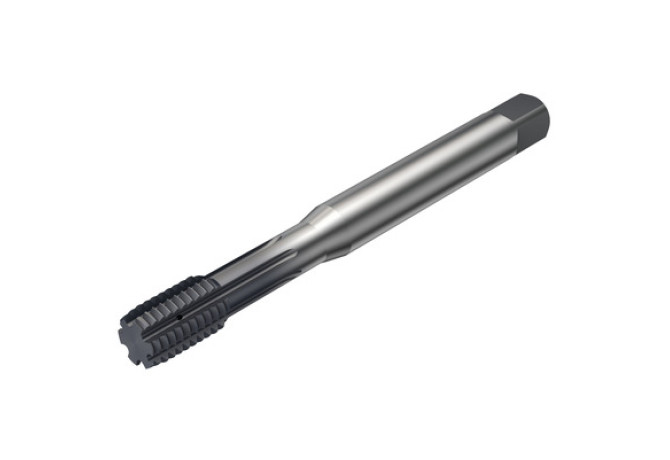

Главная Инструменты 301-03 - Thread forming tap with offset shank T400-NM108DB-M6X075 N1PC

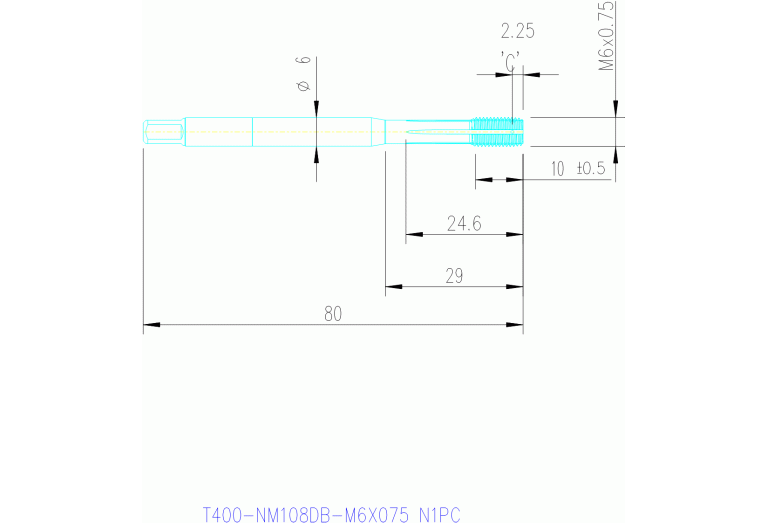

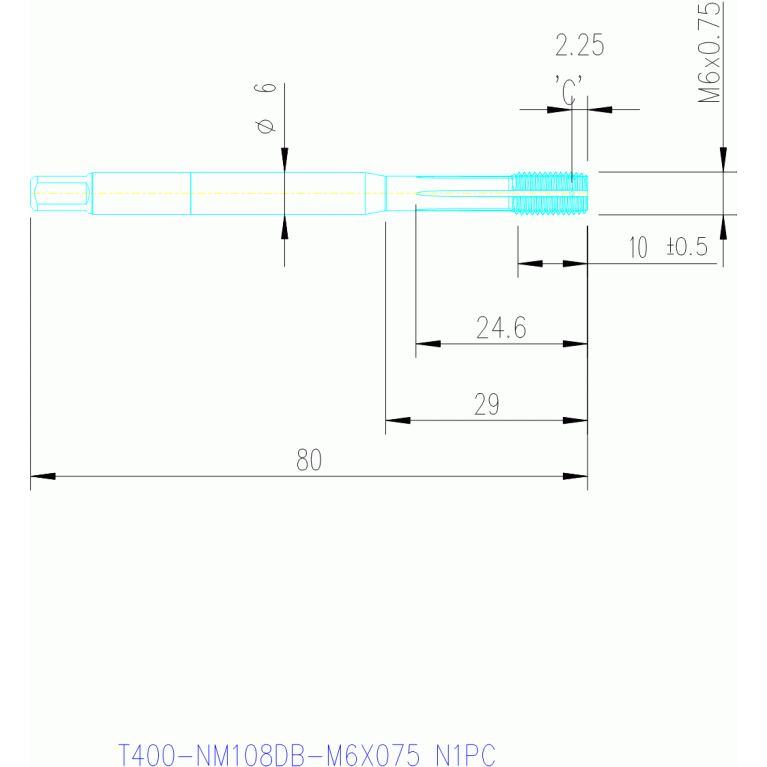

T400-NM108DB-M6X075 N1PC

Артикул: 8405671

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD AlCrN

CXSC (Coolant exit style code)

3 - With Coolant exit, axial and radial

CXSC (Coolant exit style code) / Тип подвода СОЖ

3 - With Coolant exit, axial and radial

DCP (Data chip provision)

0 - Without data chip

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL00602115

DRVS (Drive size)

4.9 mm

GRDMFG (Grade manufacturers designation)

N1PC

GRDPRIO (Standard designation of the grade main application)

HSS-E-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F6000$$$$

LOC-03 ISO

ZYL21F6000$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0060

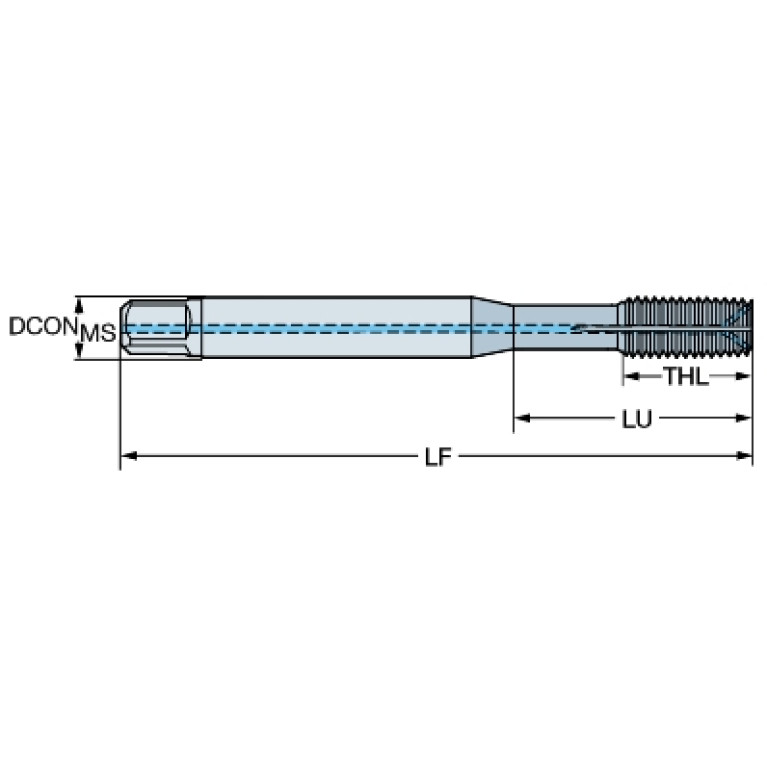

LOC-03 (DCONMS Diameter)

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00602115

LS (Shank length)

23 mm

Materials

P,M,N,S

NOF (Flute count)

OAL (Overall length)

80 mm

PLCD (Gate diameter)

6.65 mm

TCL (Tap chamfer length)

1.578 mm

TCTR (Thread tolerance class)

6HX

TD (Thread diameter)

6 mm

THFT (Thread form type)

THL (Thread cutting part length)

10 mm

THOD (Thread designation)

MF6x0.75-6HX

TP (Thread pitch)

0.75 mm

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.016 kg
