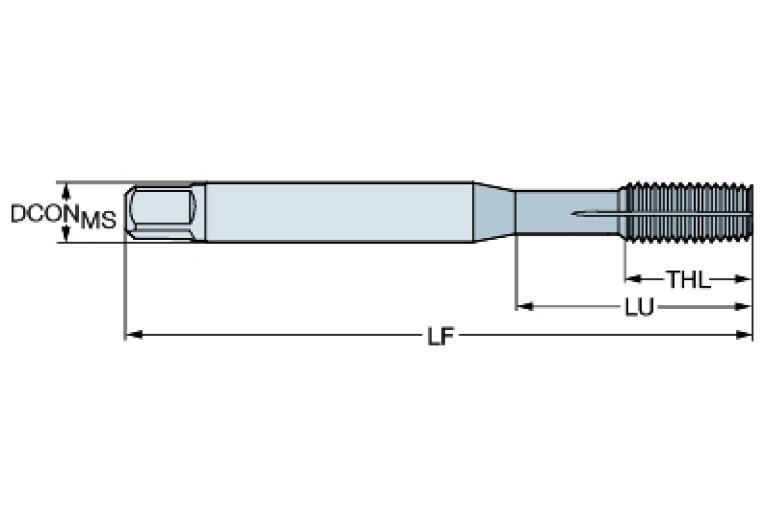

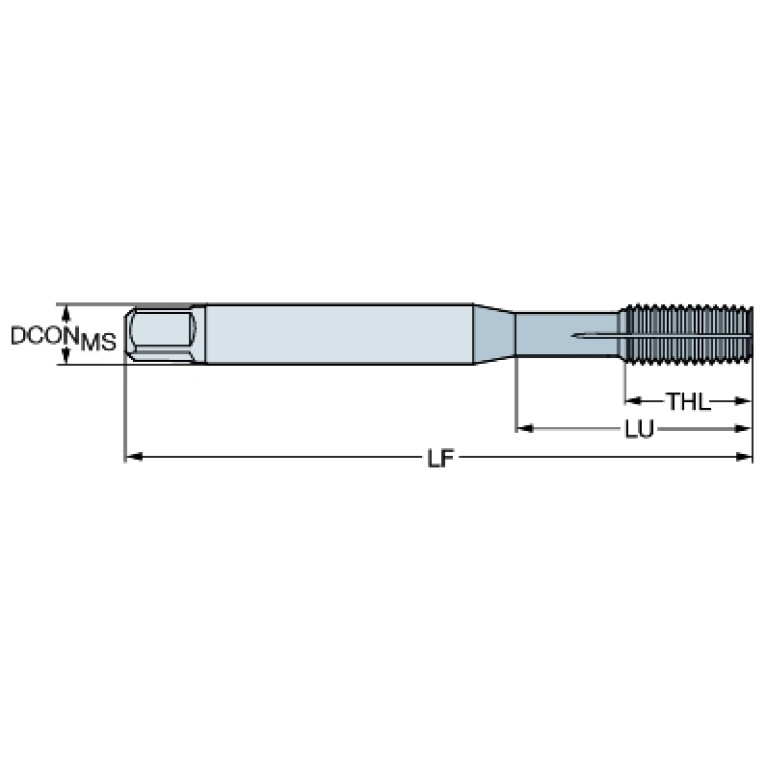

Главная Инструменты 301-03 - Thread forming tap with offset shank E8931

E8931

Артикул: 6182124

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL08002125

DRVS (Drive size)

15.24 mm

GRDMFG (Grade manufacturers designation)

T3G2

GRDPRIO (Standard designation of the grade main application)

HSS-PM

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21R8000h$09

LOC-03 ISO

ZYL21R8000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

2 Inch

LOC-03 (CZCMS Connection size code)

0800

LOC-03 (DCONMS Diameter)

20.32 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL08002125

LS (Shank length)

64.638 mm

Materials

P,M,N,S

NOF (Flute count)

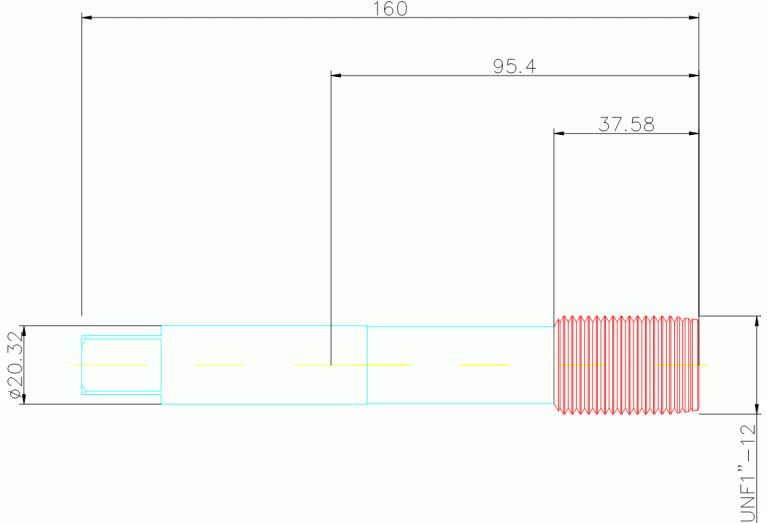

OAL (Overall length)

160 mm

PLCD (Gate diameter)

24.45 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

7.258 mm

TCTR (Thread tolerance class)

TD (Thread diameter)

25.4 mm

TDFR (Thread diameter nominal fraction)

1 in

THFT (Thread form type)

UNF

THL (Thread cutting part length)

35.992 mm

THOD (Thread designation)

UNF1-12-2B

TPI (Threads per inch)

12 1/in

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.428 kg
