E8921

SV - Sandvik-Coromant
Артикул: 6181747
В наличии
0 ₽
В корзину
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL08002125
DRVS (Drive size)
15.24 mm
GRDMFG (Grade manufacturers designation)
T3G2
GRDPRIO (Standard designation of the grade main application)
HSS-PM
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21R8000h$09
LOC-03 ISO
ZYL21R8000h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
0800
LOC-03 (DCONMS Diameter)
20.32 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL08002125
LS (Shank length)
64.638 mm
Materials
P,M,N,S
NOF (Flute count)
8

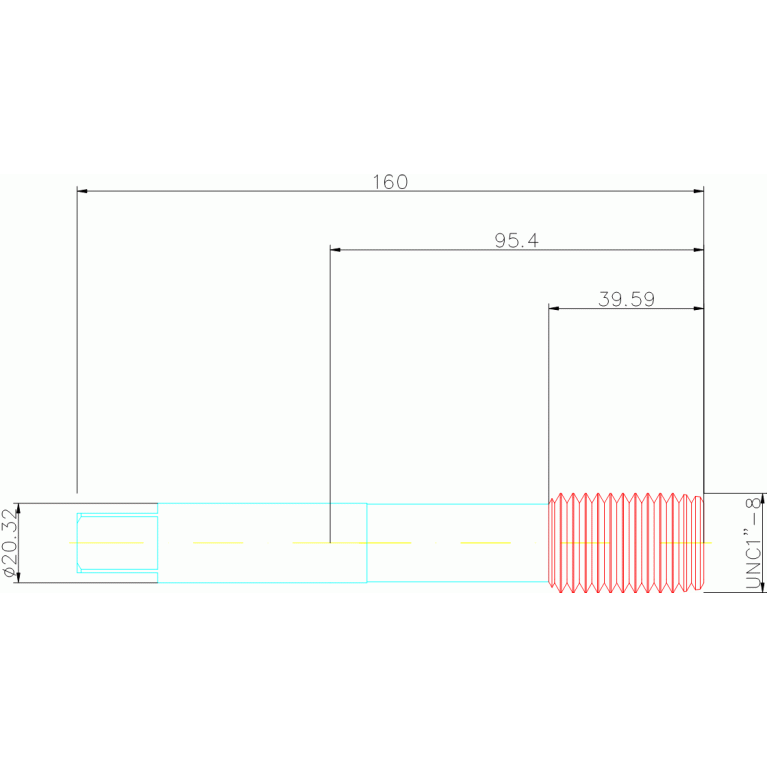

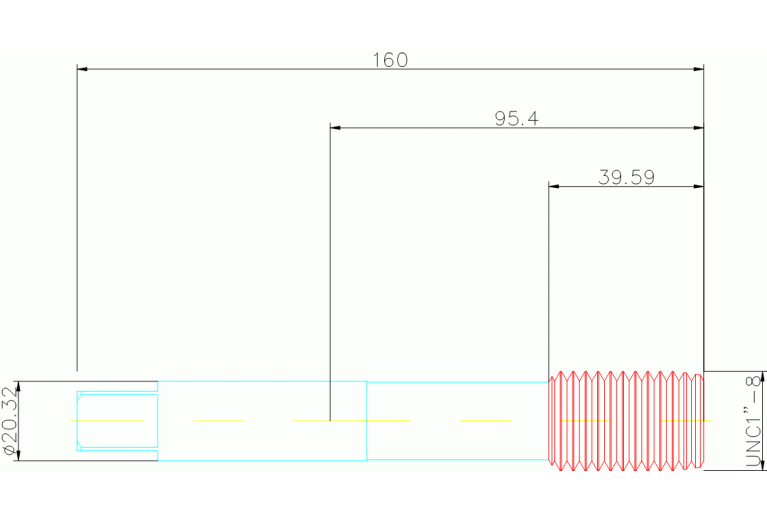

OAL (Overall length)
160 mm
PLCD (Gate diameter)
24 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
7.258 mm
TCTR (Thread tolerance class)
2B
TD (Thread diameter)
25.4 mm
TDFR (Thread diameter nominal fraction)
1 in
THFT (Thread form type)
UNC
THL (Thread cutting part length)
38.001 mm
THOD (Thread designation)
UNC1-8-2B
TPI (Threads per inch)
8 1/in
Working process
GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole
WT (Weight of item)
0.423 kg
