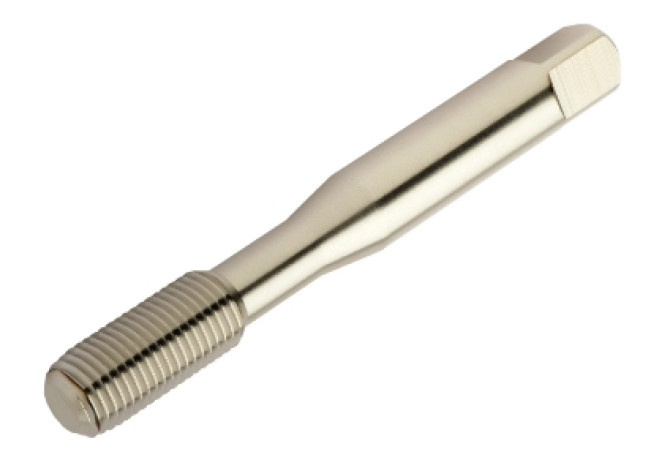

Главная Инструменты 301-03 - Thread forming tap with offset shank E5307/16BRIGHT

E5307/16BRIGHT

Артикул: 6181623

В наличии

0 ₽

В корзину

Описание

Характеристики

BMC (Body material code)

S - Solid steel

CNSC (Coolant entry style code)

0 - Without coolant entry

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

ZYL00802105

DRVS (Drive size)

6.3 mm

GRDMFG (Grade manufacturers designation)

S8F3

GRDPRIO (Standard designation of the grade main application)

HSS

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL21F8000h$09

LOC-03 ISO

ZYL21F8000h$09

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

0 Metric

LOC-03 (CZCMS Connection size code)

0080

LOC-03 (DCONMS Diameter)

8 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$09

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00802105

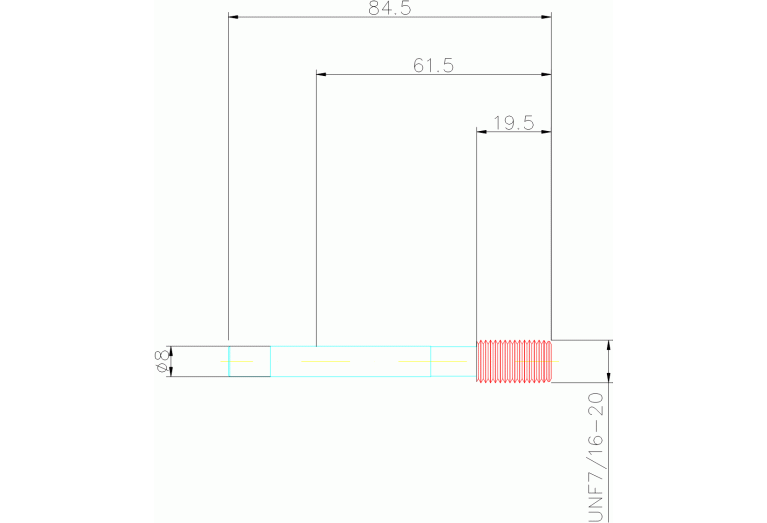

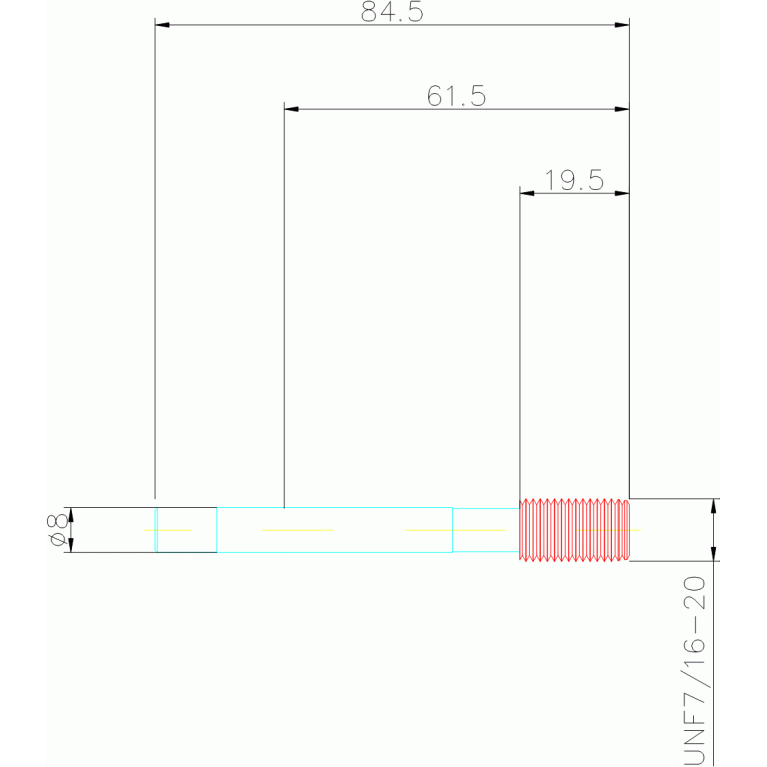

LS (Shank length)

24 mm

NOF (Flute count)

OAL (Overall length)

84.5 mm

OVERHANG LENGTH (Overhang length)

60.5 mm

PLCD (Gate diameter)

10.6 mm

TCDCONMS (ISO-tolerance class shank diameter)

TCL (Tap chamfer length)

2.565 mm

TCTR (Thread tolerance class)

2BX

TD (Thread diameter)

11.113 mm

TDFR (Thread diameter nominal fraction)

7/16 in

THFT (Thread form type)

UNF

THL (Thread cutting part length)

19.5 mm

THOD (Thread designation)

UNF7/16-20-2BX

TPI (Threads per inch)

20 1/in

Working process

GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole

WT (Weight of item)

0.048 kg
