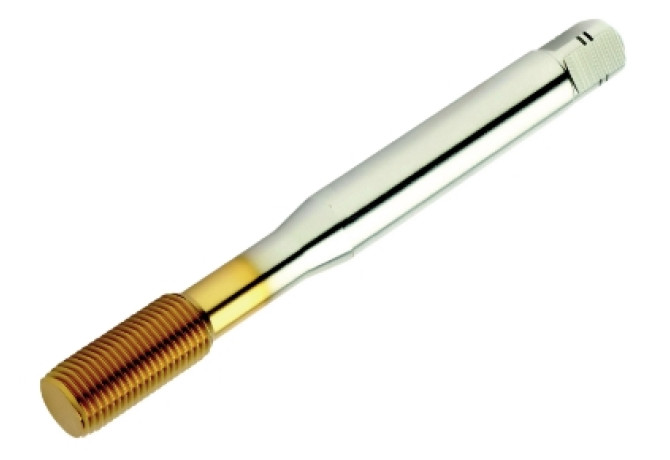

E317M14X1.5
E317M14X1.5
Артикул:
6182137
В наличии
0 ₽
Характеристики
BMC (Body material code)
S - Solid steel
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD TiN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
Delivery state
LA - Soon discontinued
Delivery state valid from
12/1/2023
DIN
ZYL01102105
DRVS (Drive size)
9 mm
GRDMFG (Grade manufacturers designation)
S9G2
GRDPRIO (Standard designation of the grade main application)
HSS-E
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL21G1100h$09
LOC-03 ISO
ZYL21G1100h$09
LOC-03 (CCFMS Connection code form)
21
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0110
LOC-03 (DCONMS Diameter)
11 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$09
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL01102105
LS (Shank length)
29 mm
Materials
P,M,N,S
NOF (Flute count)
6

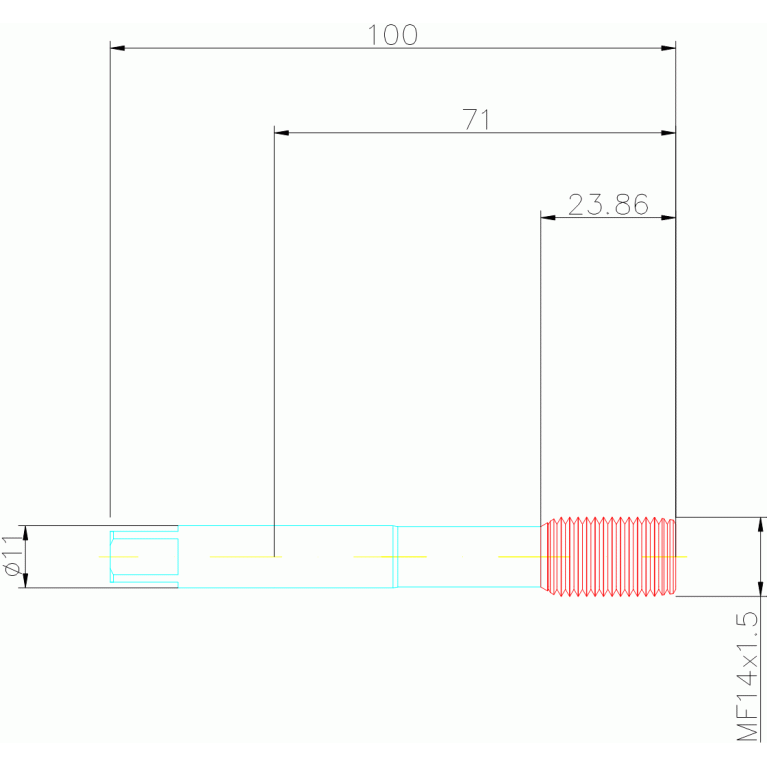

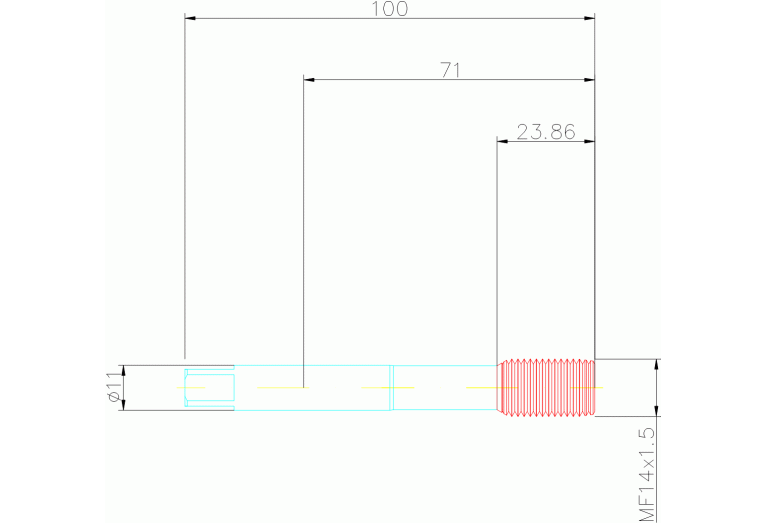

OAL (Overall length)
100 mm
PLCD (Gate diameter)
13.3 mm
TCDCONMS (ISO-tolerance class shank diameter)
h9
TCL (Tap chamfer length)
3.985 mm
TCTR (Thread tolerance class)
6HX
TD (Thread diameter)
14 mm
THFT (Thread form type)
MF

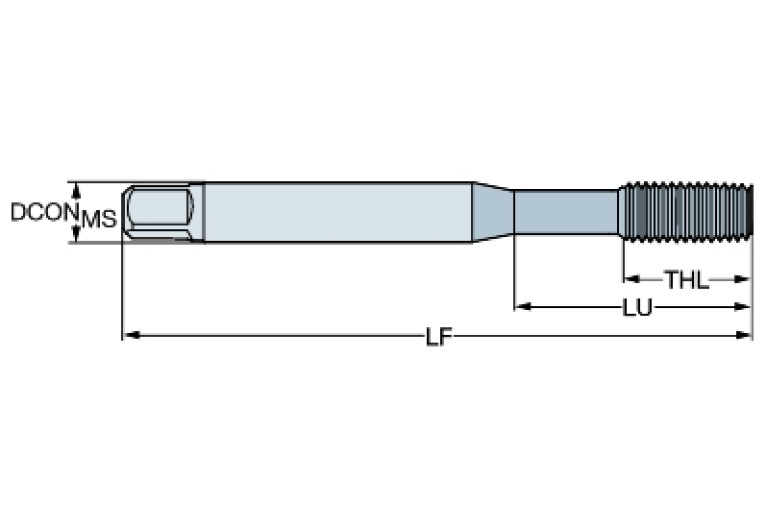

THL (Thread cutting part length)
21 mm
THOD (Thread designation)
MF14x1.5-6HX
TP (Thread pitch)
1.5 mm
Working process
GF - Thread forming,GFD - Thread forming, through hole,GFS - Thread forming, blind hole
WT (Weight of item)
0.083 kg
