Главная Инструменты 201-06 - Pentagonal insert 357N-2408M-KH 4220

357N-2408M-KH 4220

Артикул: 6289857

В наличии

0 ₽

В корзину

Описание

Характеристики

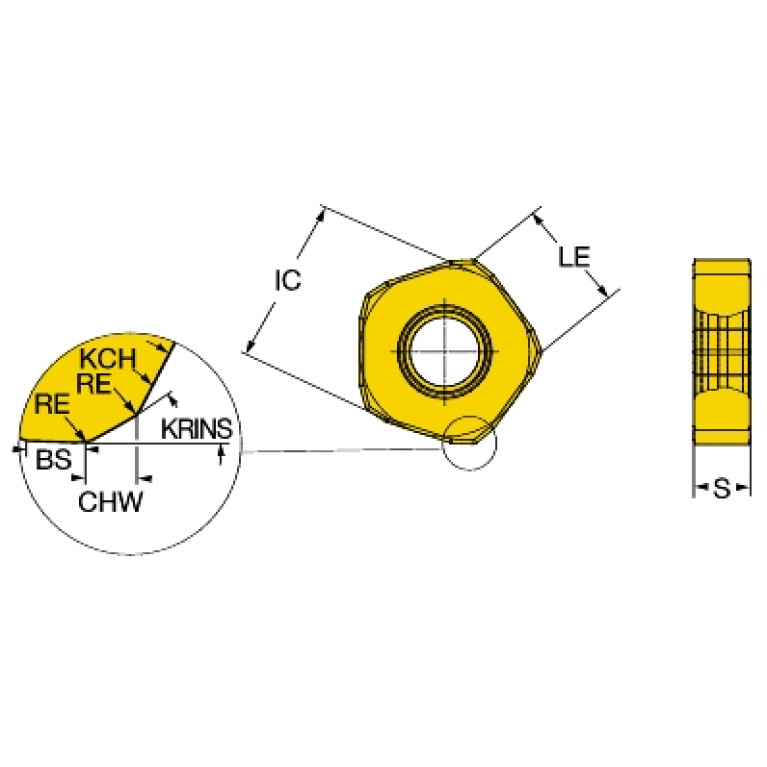

AN (Clearance angle major)

0 Degree

AS (Clearance angle wiper edge)

0 Degree

BS (Wiper edge length)

3 mm

CBMD (Chip breaker manufacturers designation)

CECC (Cutting edge condition code)

E - Rounded

CHW (Corner chamfer width)

2.6 mm

COATN (Coating)

CVD TiCN+Al2O3+TiN

D1 (Fixing hole diameter)

10 mm

Delivery state

LA - Soon discontinued

Delivery state valid from

12/1/2023

DIN

SV-NK2408DN

EPSR (Insert included angle)

108 Degree

GAN (Insert rake angle)

0 Degree

GRDMFG (Grade manufacturers designation)

4220

GRDPRIO (Standard designation of the grade main application)

IC (Inscribed circle diameter)

24.4 mm

IFS (Insert mounting style code)

3 - Counter bore for screws with taper angle from 40° to 60°

IH (Insert hand)

N - Neutral

Interface codes

J6 / J441

ISISO (ISO property)

ISO

SV$$NK2408103NBDN10

KCH (Corner chamfer angle)

14.9 Degree

KRINS (Cutting edge angle major)

57 Degree

L (Cutting edge length)

17.728 mm

LE (Cutting edge effective length)

13 mm

LOC-03 ISO

SV$$NK2408103NBDN10

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SV-NK2408DN

Materials

P,K

NOI (Insert index count)

RE (Corner radius)

1 mm

S (Insert thickness)

7.94 mm

S1 (Insert thickness total)

7.94 mm

TCE (Tipped cutting edge code)

TCINS (Tolerance class insert)

Working process

No working processes available

WT (Weight of item)

0.01 kg
