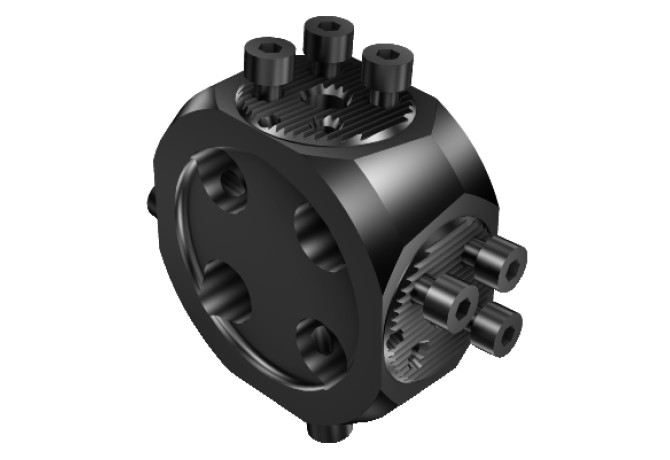

Главная Инструменты 401-04 - Reducer, primary design 570-4-25-40-050-RA

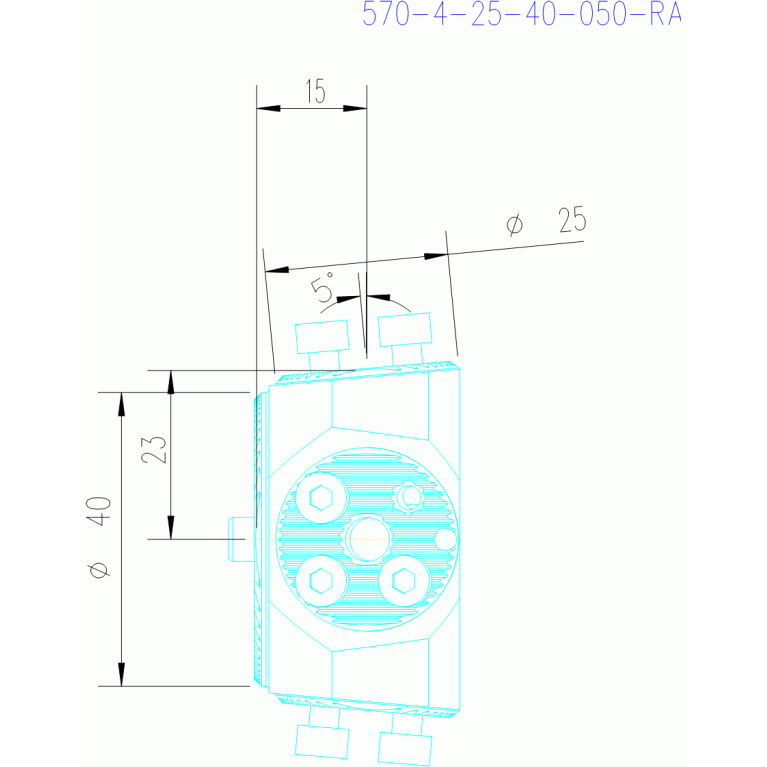

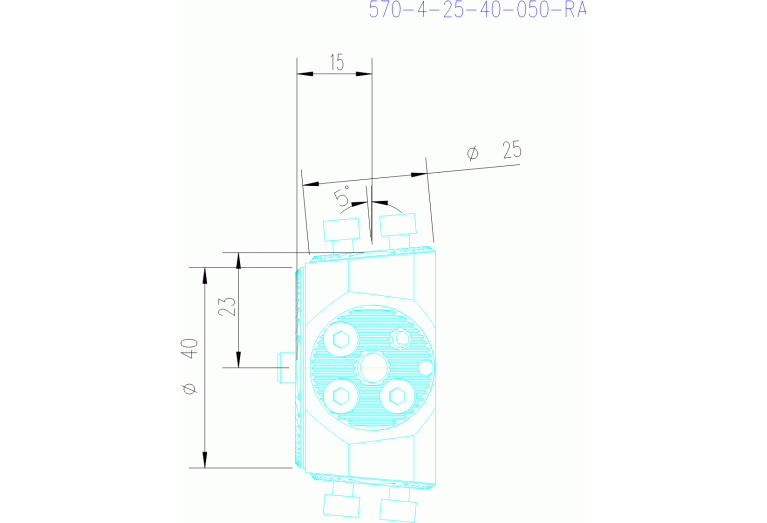

570-4-25-40-050-RA

Артикул: 5765173

В наличии

0 ₽

В корзину

Описание

Характеристики

CCFWS (Connection code form)

CCONWS (Connection count workpiece side)

CCSWS (Connection code style)

CCTWS (Connection code type)

CMS

CCUWS (Connection code unit base)

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

CZCWS (Connection size code)

0250

DCP (Data chip provision)

0 - Without data chip

Delivery state

NL - Discontinued

Delivery state valid from

12/1/2023

DIN

CMS04000187

HAND (Cutting direction)

N - Neutral

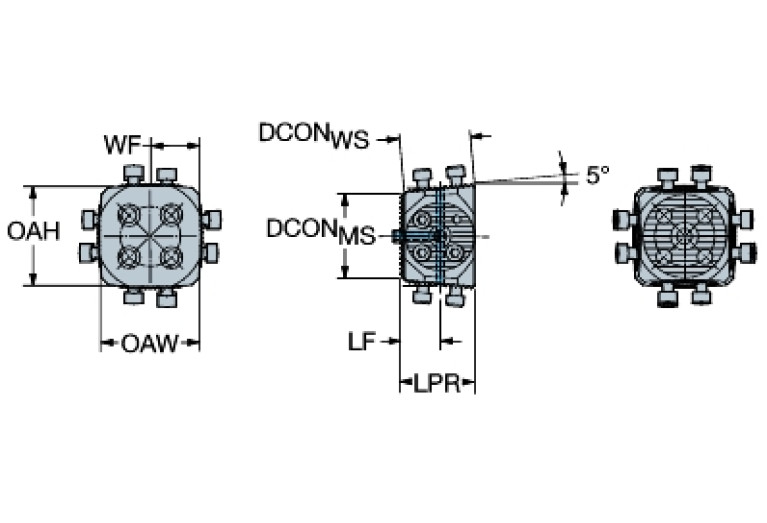

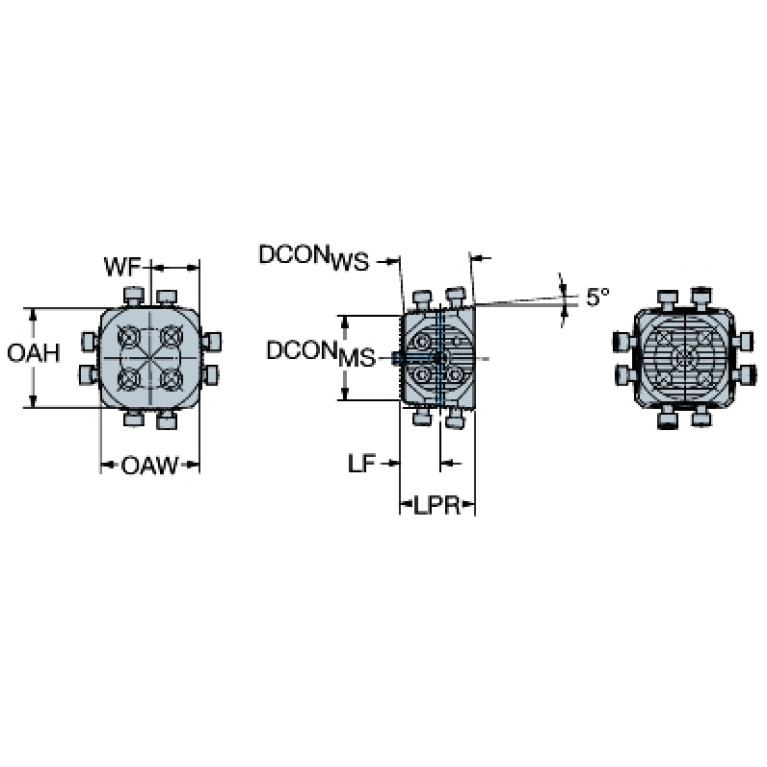

HF (Functional height)

0 mm

Interface codes

J6 / J61

ISO

CMS01C0400$$$$

KAP (Kappa)

270 Degree

LF (Functional length)

15 mm

LOC-01 ISO

CMS01C0250****

LOC-01 (CCFWS Connection code form)

LOC-01 (CCSWS Connection code style)

7 Serrated connection

LOC-01 (CCTWS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-01 (CCUWS Connection code unit base)

8 non-dimensional size

LOC-01 (CZCWS Connection size code)

0250

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

CMS02500187

LOC-03 ISO

CMS01C0400$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0400

LOC-03 (DCONMS Diameter)

40 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS04000187

LPR (Protruding length)

28 mm

OAH (Overall height)

48.5 mm

OAL (Overall length)

28 mm

OAW (Overall width)

48.5 mm

Rotation (Rotation indicator)

0 - stationary tool

WF (Functional width)

23 mm

WT (Weight of item)

0.379 kg
