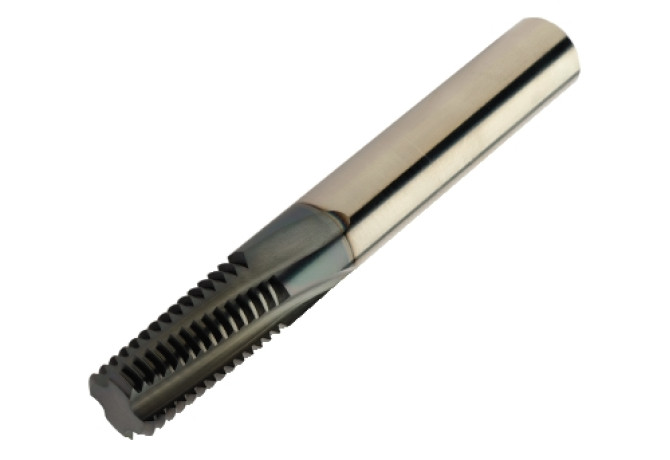

Главная Инструменты 303-09 - Thread end mill R217.15C190300AK50N 1630

R217.15C190300AK50N 1630

Артикул: 5743861

В наличии

0 ₽

В корзину

Описание

Характеристики

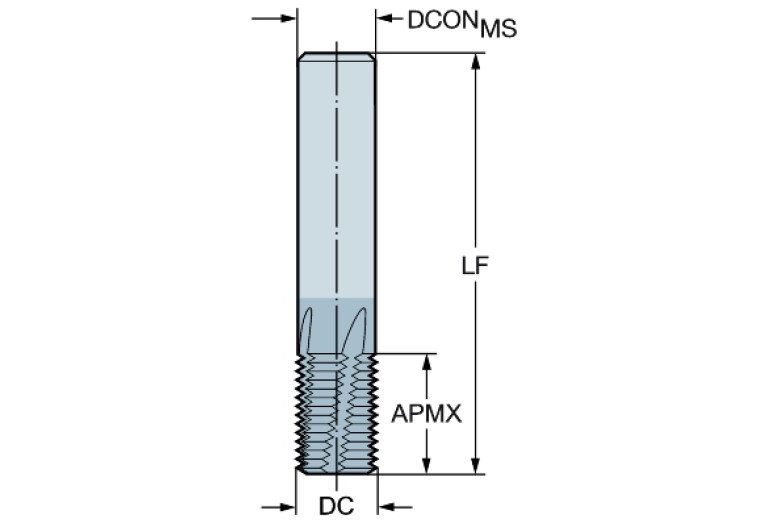

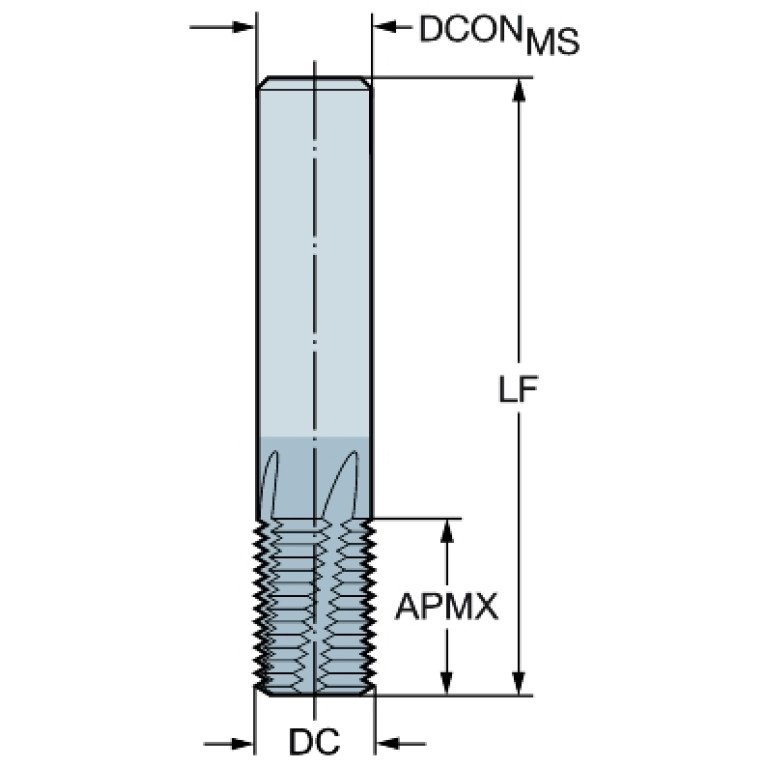

APMX (Depth of cut maximum)

50 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

1 - With Coolant entry, axial concentric

COATN (Coating)

PVD TiAlN

CXSC (Coolant exit style code)

1 - With Coolant exit, axial concentric

CXSC (Coolant exit style code) / Тип подвода СОЖ

1 - With Coolant exit, axial concentric

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

19 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

ZYL02000115

FHA (Flute helix angle)

10 Degree

FHH (Flute helix hand)

R - Hand of helix right

GAMF (Rake angle radial)

7.5 Degree

GRDMFG (Grade manufacturers designation)

1630

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

ZYL01G2000h$06

LF (Functional length)

125 mm

LOC-03 ISO

ZYL01G2000h$06

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

5 Shaft in machine direction or hole in workpiece direction

LOC-03 (CCTMS Connection code type)

ZYL cylindrical shank

LOC-03 (CCUMS Connection code unit base)

1 Metric with coolant

LOC-03 (CZCMS Connection size code)

0200

LOC-03 (DCONMS Diameter)

20 mm

LOC-03 (TCDCONCDMS Connection tolerance class coded)

h$06

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL02000115

LPR (Protruding length)

75 mm

Materials

P,M,K,N,S,H

MILTTY (Mill tool type ISO)

T - Thread cutter

OAL (Overall length)

125 mm

RPMX (Rotational speed maximum)

80000 1/min

TCDCONMS (ISO-tolerance class shank diameter)

THFT (Thread form type)

TP (Thread pitch)

3 mm

Working process

FSC - Thread milling

WT (Weight of item)

0.446 kg

ZEFP (Peripheral effective cutting edge count)
