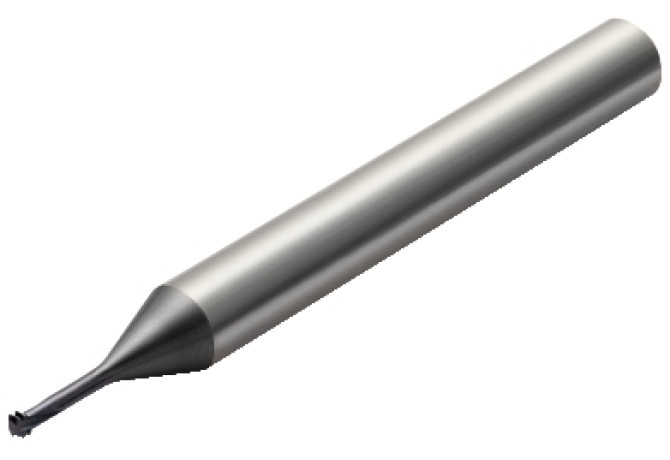

R217.13-031070AC08S 1610
R217.13-031070AC08S 1610
Артикул:
6416835
В наличии
0 ₽
Характеристики

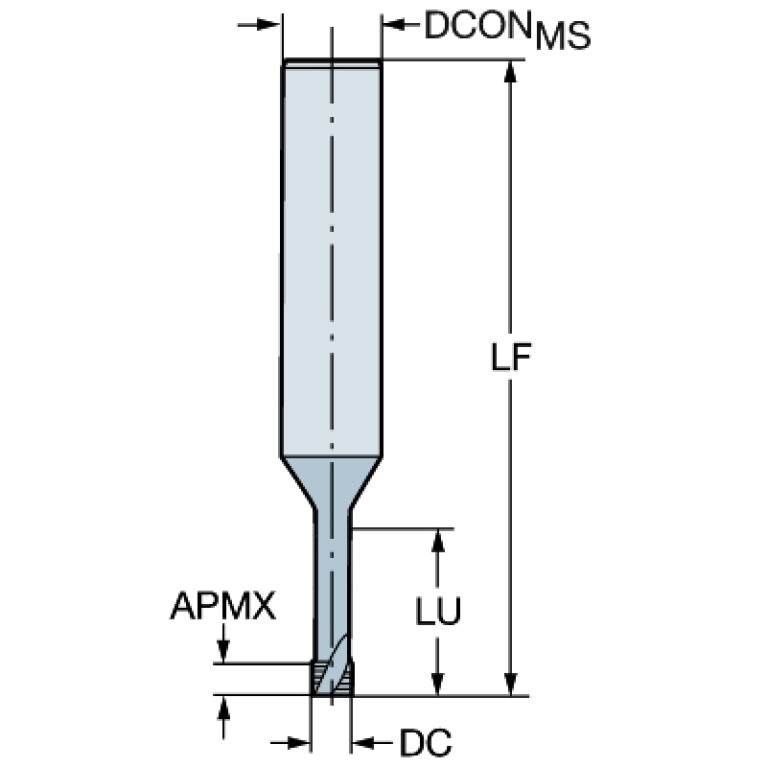

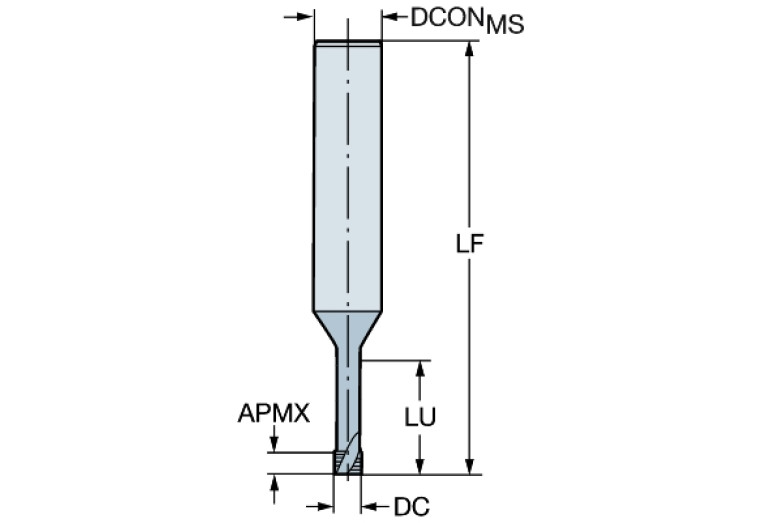

APMX (Depth of cut maximum)
1.05 mm
BMC (Body material code)
H - Solid carbide
CNSC (Coolant entry style code)
0 - Without coolant entry
COATN (Coating)
PVD AlCrN
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
DCP (Data chip provision)
0 - Without data chip
DCX (Cutting diameter maximum)
3.1 mm
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DIN
ZYL00600105
DN (Neck diameter)
1.6 mm
FHA (Flute helix angle)
15 Degree
FHH (Flute helix hand)
R - Hand of helix right
GAMF (Rake angle radial)
-9 Degree
GRDMFG (Grade manufacturers designation)
1610
GRDPRIO (Standard designation of the grade main application)
HC
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISO
ZYL01F6000h$06

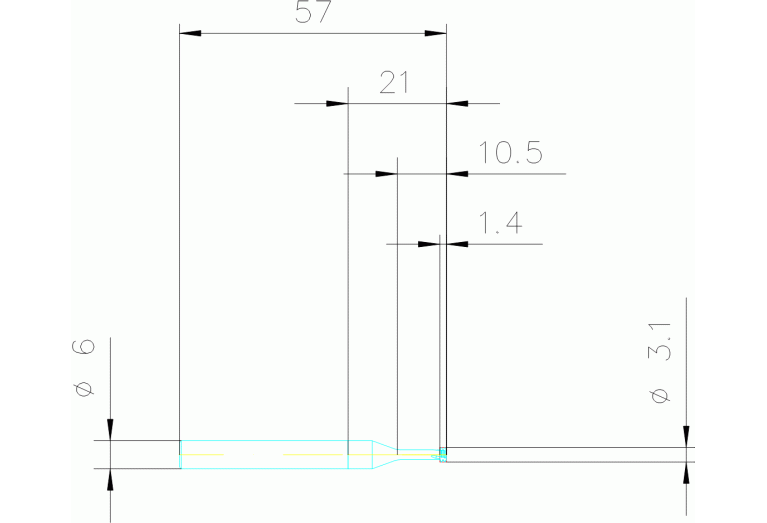

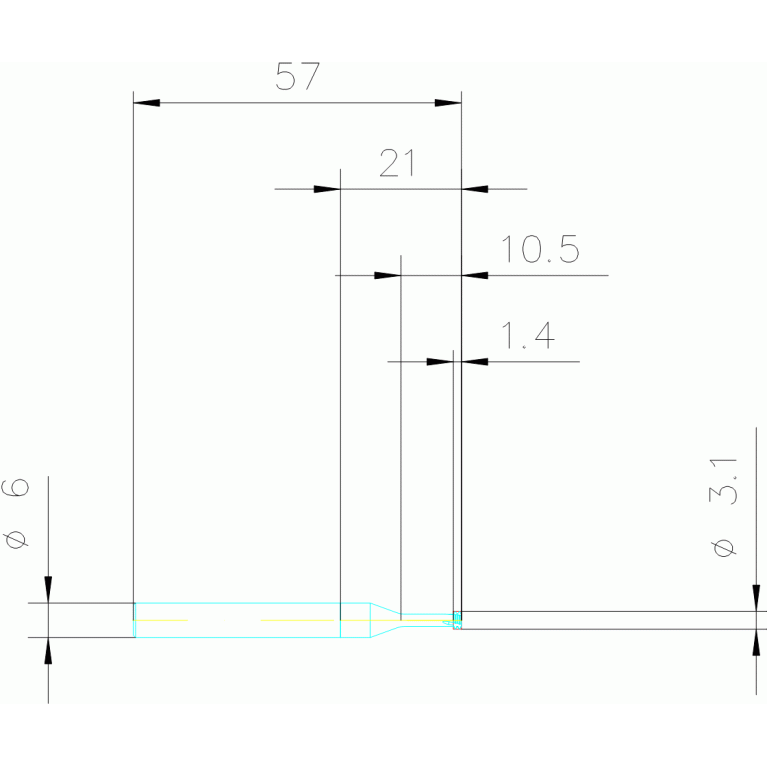

LF (Functional length)
57 mm
LOC-03 ISO
ZYL01F6000h$06
LOC-03 (CCFMS Connection code form)
01
LOC-03 (CCSMS Connection code style)
5 Shaft in machine direction or hole in workpiece direction
LOC-03 (CCTMS Connection code type)
ZYL cylindrical shank
LOC-03 (CCUMS Connection code unit base)
0 Metric
LOC-03 (CZCMS Connection size code)
0060
LOC-03 (DCONMS Diameter)
6 mm
LOC-03 (TCDCONCDMS Connection tolerance class coded)
h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00600105
LPR (Protruding length)
21 mm
LS (Shank length)
36 mm
Materials
S,H
MILTTY (Mill tool type ISO)
T - Thread cutter
OAL (Overall length)
57 mm
RPMX (Rotational speed maximum)
80000 1/min
TCDCONMS (ISO-tolerance class shank diameter)
h6
THFT (Thread form type)
M
TP (Thread pitch)
0.7 mm
Working process
FFO - Die milling,FPR - Profile milling,FSC - Thread milling
WT (Weight of item)
0.028 kg
ZEFP (Peripheral effective cutting edge count)
3
