Главная Инструменты 303-09 - Thread end mill 327R12-22 175MM-TH 1025

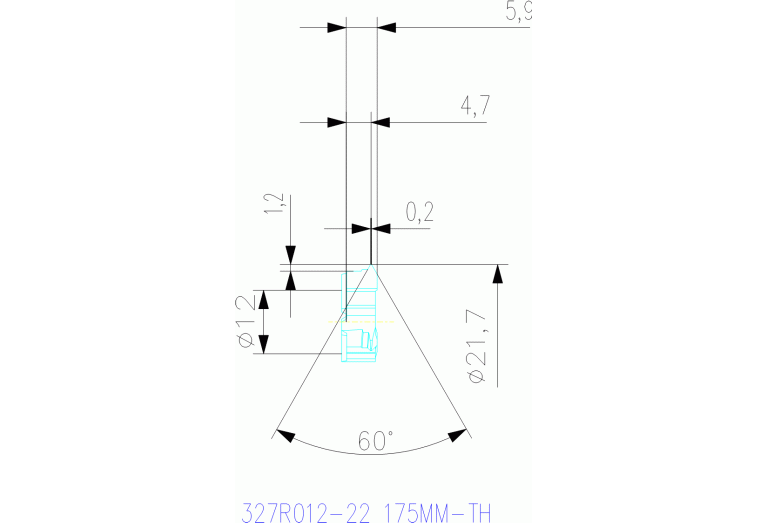

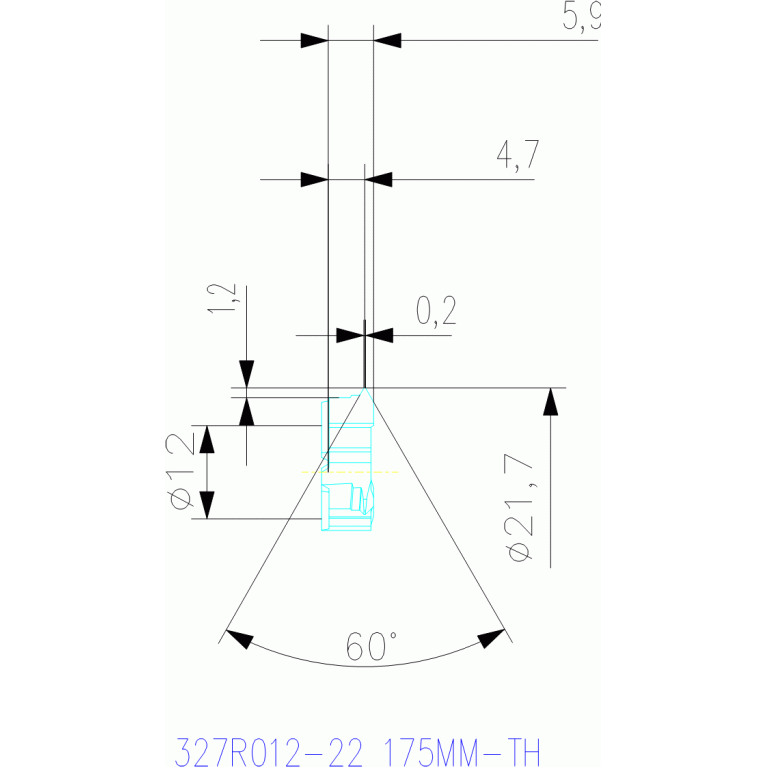

327R12-22 175MM-TH 1025

Артикул: 5758817

В наличии

0 ₽

В корзину

Описание

Характеристики

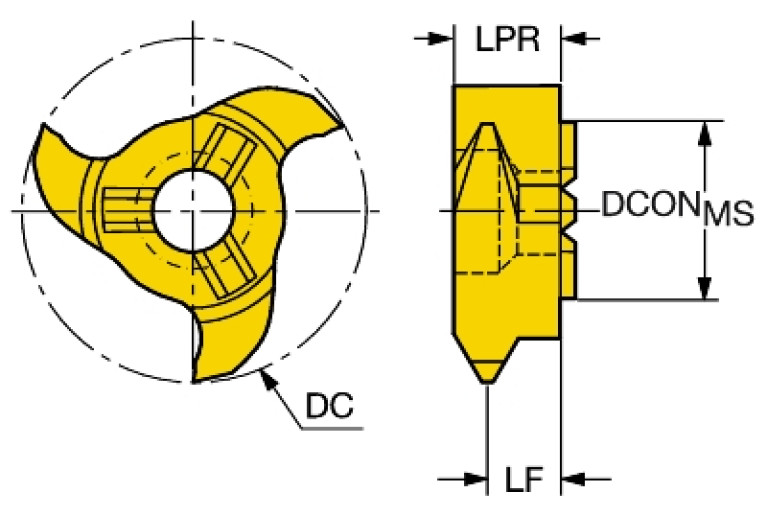

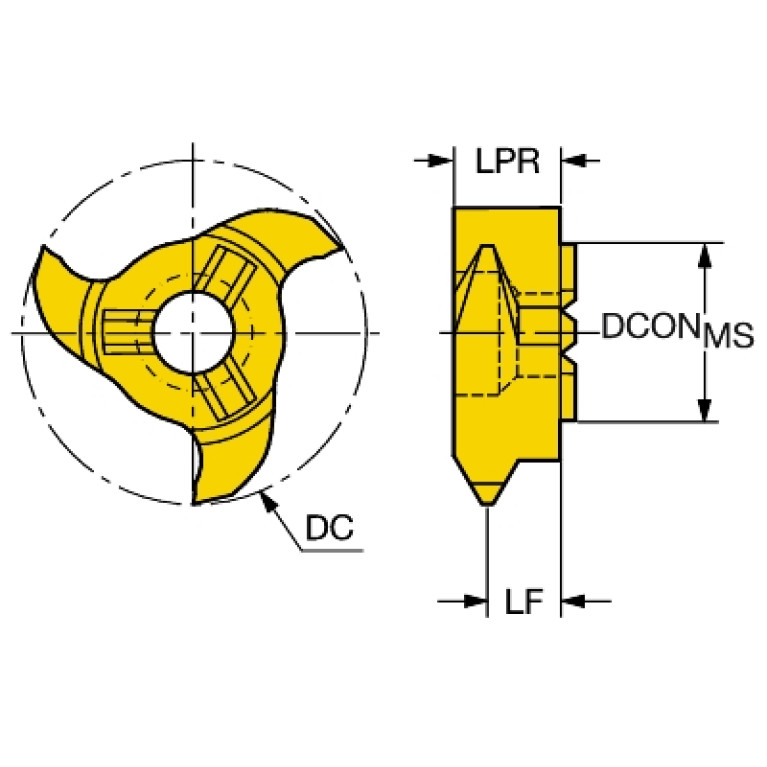

APMX (Depth of cut maximum)

0.95 mm

BMC (Body material code)

H - Solid carbide

CNSC (Coolant entry style code)

0 - Without coolant entry

COATN (Coating)

PVD TiAlN+TiN

CXSC (Coolant exit style code)

0 - Without coolant exit

CXSC (Coolant exit style code) / Тип подвода СОЖ

0 - Without coolant exit

DCP (Data chip provision)

0 - Without data chip

DCX (Cutting diameter maximum)

21.7 mm

Delivery state

LH - Stocked

Delivery state valid from

12/1/2023

DIN

CMS01200287

DN (Neck diameter)

19.8 mm

FHA (Flute helix angle)

0 Degree

FHH (Flute helix hand)

N - Hand of helix neutral

GAMF (Rake angle radial)

5 Degree

GRDMFG (Grade manufacturers designation)

1025

GRDPRIO (Standard designation of the grade main application)

HAND (Cutting direction)

R - Right

Interface codes

J6 / J61

ISO

CMS02C0120$$$$

LF (Functional length)

5.85 mm

LH (Head length)

5.85 mm

LOC-03 ISO

CMS02C0120$$$$

LOC-03 (CCFMS Connection code form)

LOC-03 (CCSMS Connection code style)

7 Serrated connection

LOC-03 (CCTMS Connection code type)

CMS Coromant Modular boring SANDVIK

LOC-03 (CCUMS Connection code unit base)

8 non-dimensional size

LOC-03 (CZCMS Connection size code)

0120

LOC-03 (DCONMS Diameter)

12 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CMS01200287

LPR (Protruding length)

5.85 mm

MILTTY (Mill tool type ISO)

T - Thread cutter

OAL (Overall length)

5.85 mm

RPMX (Rotational speed maximum)

80000 1/min

THFT (Thread form type)

TP (Thread pitch)

1.75 mm

Working process

FFO - Die milling,FPR - Profile milling,FSC - Thread milling

WT (Weight of item)

0.01 kg

ZEFP (Peripheral effective cutting edge count)
