R331.32-205R38EMQ
R331.32-205R38EMQ
Артикул:
5744864
В наличии
0 ₽

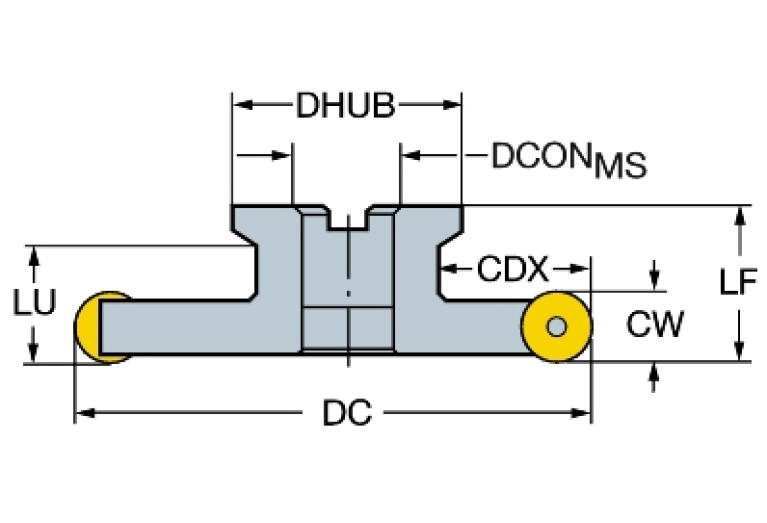

Характеристики
A2A (Clearance angle major Pos. A)
7 Degree
A2B (Clearance angle major Pos. B)
7 Degree
B3A (Inscribed circle diameter Pos. A)
9.525 mm
B3B (Inscribed circle diameter Pos. B)
9.525 mm
BI (Block index)
1
BLDA (Tool style code Position A)
10
BLDB (Tool style code Position B)
10
BMC (Body material code)
S - Solid steel
C1A (Insert thickness Pos. A)
3.969 mm
C1B (Insert thickness Pos. B)
3.969 mm
CCONMS (Connection count machine side)
2
CDX (Cutting depth maximum)
53.492 mm
CICT (Cutting item count)
32
CNSC (Coolant entry style code)
0 - Without coolant entry
CWN (Cutting width minimum)
10 mm
CXSC (Coolant exit style code)
0 - Without coolant exit
CXSC (Coolant exit style code) / Тип подвода СОЖ
0 - Without coolant exit
D1A (Corner radius Pos. A)
4.762 mm
D1B (Corner radius Pos. B)
4.762 mm
DC (Cutting diameter)
205.2 mm
DCP (Data chip provision)
0 - Without data chip
Delivery state
LH - Stocked
Delivery state valid from
12/1/2023
DHUB (Hub diameter)
96.012 mm
DIN
FDA15002220
HAND (Cutting direction)
R - Right
Interface codes
J6 / J61
ISISO A (Indicator for ISO cutting plate Pos.A)
1
ISO
FDA22S1500$$$$
LOC-01 ISO
ISO$RC09T3003****00
LOC-01 (BI Block index)
1
LOC-01 (MIID Master insert identification)
RCKT09T300
LOC-01-Connection-codes
J44 / J441 - Insert (Unknown 01)
LOC-01-DIN
RC09T3003N
LOC-02 (BI Block index)
2
LOC-02 (MIID Master insert identification)
RCKT09T300
LOC-02-Connection-codes
J44 / J441 - Insert (Unknown 02)
LOC-03 ISO
FDA22S1500$$$$
LOC-03 (CCFMS Connection code form)
22
LOC-03 (CCSMS Connection code style)
0 Hole in machine direction or shaft in workpiece direction
LOC-03 (CCTMS Connection code type)
FDA Milling arbor mounting
LOC-03 (CCUMS Connection code unit base)
2 Inch
LOC-03 (CZCMS Connection size code)
1500
LOC-03 (DCONMS Diameter)
38.1 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA15002220
MIID (Master insert identification)
RCKT09T300
OAL (Overall length)
62.535 mm
RPMX (Rotational speed maximum)
11000 1/min
Working process
FEC - Square shoulder milling,FPL - Face milling,FTR - Slot cutting
WT (Weight of item)
4.3 kg
ZEFF (Face effective cutting edge count)
16
ZEFP (Peripheral effective cutting edge count)
16
